Bosch C 950 ES - Component Breakdown - Group 5; Water Valve and Piping Assembly Parts

6 720 646 812
64
Interior components diagram and parts list
12.2.5 Group 5

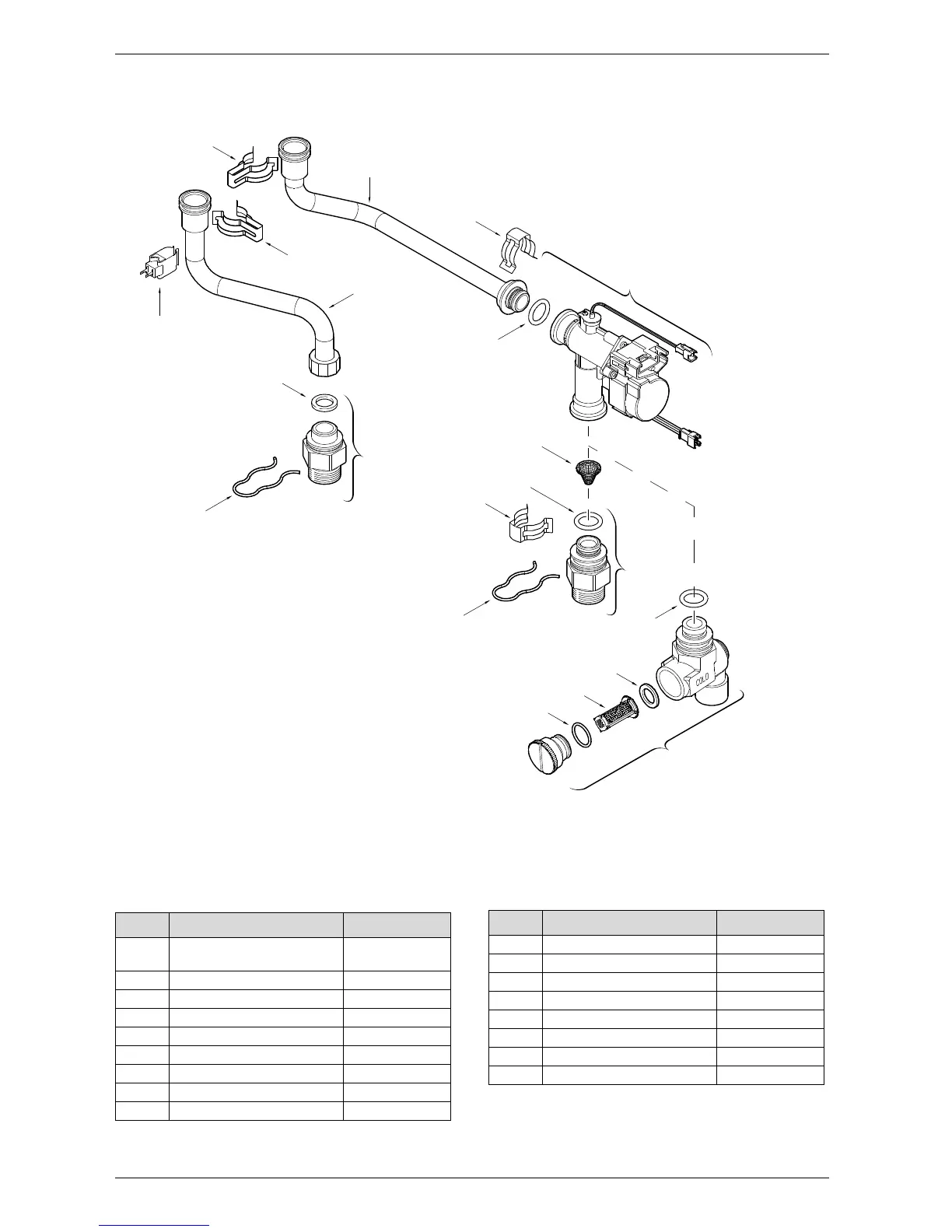

Fig. 83 Components Diagram
9
11
12
13
10
1
2
3
4
4
5
6
7
8
9
11
14
15
16
17
12
6720902977.AA JF
(optional)
Item Description Reference
1
Water valve with engine and
temperature sensor
8 708 505 024
2 O-ring 8 700 205 147
3 Cold water pipe 8 700 715 394
4 Pipe connection clip 8 701 201 028
5 Hot water pipe 8 700 715 469
6 Temperature sensor 8 700 400 015
7 Outlet fitting 8 703 305 349
8 Inlet / Outlet washer 8 710 103 045
9 Wireform spring 8 701 300 025
Table 34
10 Inlet fitting 8 703 305 348
11 O-ring 8 700 205 157
12 Watervalve clip 8 716 102 607
13 Water filter 8 700 507 001
14 Inlet fitting with filter (optional) 8 703 305 356
15 Washer (optional) 8 700 103 764
16 Water filter (optional) 8 700 507 059
17 O-ring (optional) 8 700 205 231
