Bosch C 950 ES - Component Breakdown - Group 6; Control Unit and Wiring Parts

6 720 646 812
Interior components diagram and parts list
65
12.2.6 Group 6

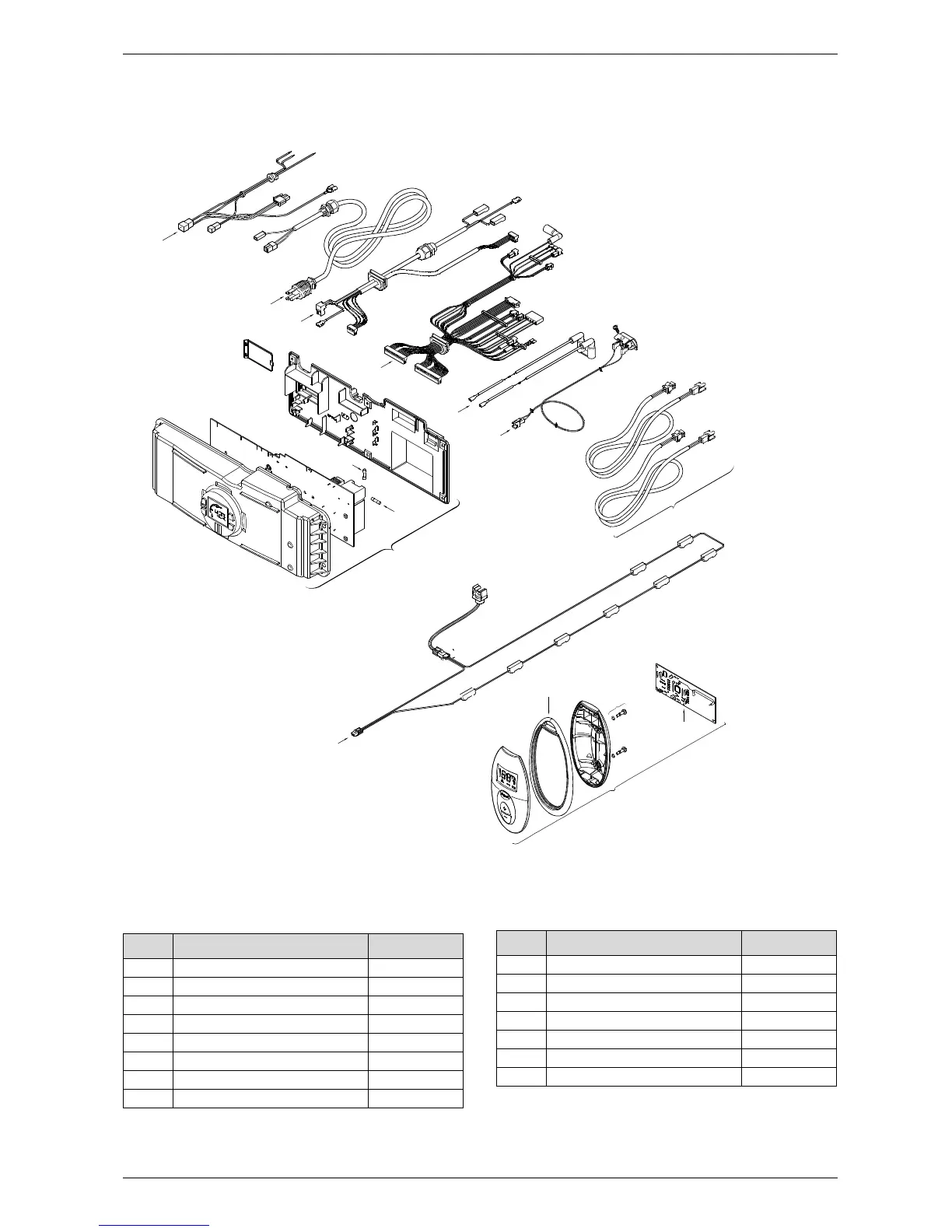

Fig. 84 Components Diagram
3
7
6
9
5
10
4
1
2
15
13
16
14
12
6720608158-75.2V
11
Item Description Reference
1 Control unit 8 707 207 366
2 Fuse T2.5A 1 904 521 342
3 Fuse T1.6A 8 700 609 008
4 Power supply cables 8 704 401 371
5 Power supply cord 8 704 401 378
6 Fan cables 8 704 401 347
7 Wire harness 8 704 401 348
9 Electrode cables 8 704 401 346
Table 35
10 Flue gas limiter 8 700 400 032
11 Kit Inteligent Cascading 7 709 003 962
12 Anti freeze kit 7 709 003 665
13 Remote control (optional) TSTAT2
14 Shaped seal (optional) 8 700 201 012
15 Screw (optional) 8 703 401 109
16 Printed circuit transciever (optional) 8 708 300 123
Item Description Reference
Table 35
