Bosch C40-Li - Device Description

Charger Bosch C40-Li I Operating instructions EN
12
1 Charger
2 Mounting hook
3 Mains cable with mains connection
4 Charging cable with cable plug (red
and black)
a Plug
5 Charging cables with ring eyelets
(red and black)
a Plug
b Fuse
6 (+) Terminal clamp (red)
7 (–) Terminal clamp (black)
8 Standby
9 Mode Select Button
10 Reverse polarity protection + -
11 Battery capacity indicator
Battery capacity: 100%
Battery capacity: 75%
Battery capacity: 50%
Battery capacity: 25%
12 Mode 1 | 12 V (car)
13 Mode 2 | 12 V (motorbike)
14 Mode 3 | 12 V (LiFePO)
15 Mode 4 | 12 V (charging at
0 - 4 °C in winter or AGM)
16 Mode 5 | 12 V
(regeneration)
17 Mode 6 | 6 V (motorbike)
18 Mode 7 | 6 V push charge
19 Mode 8 | 12 V push charge

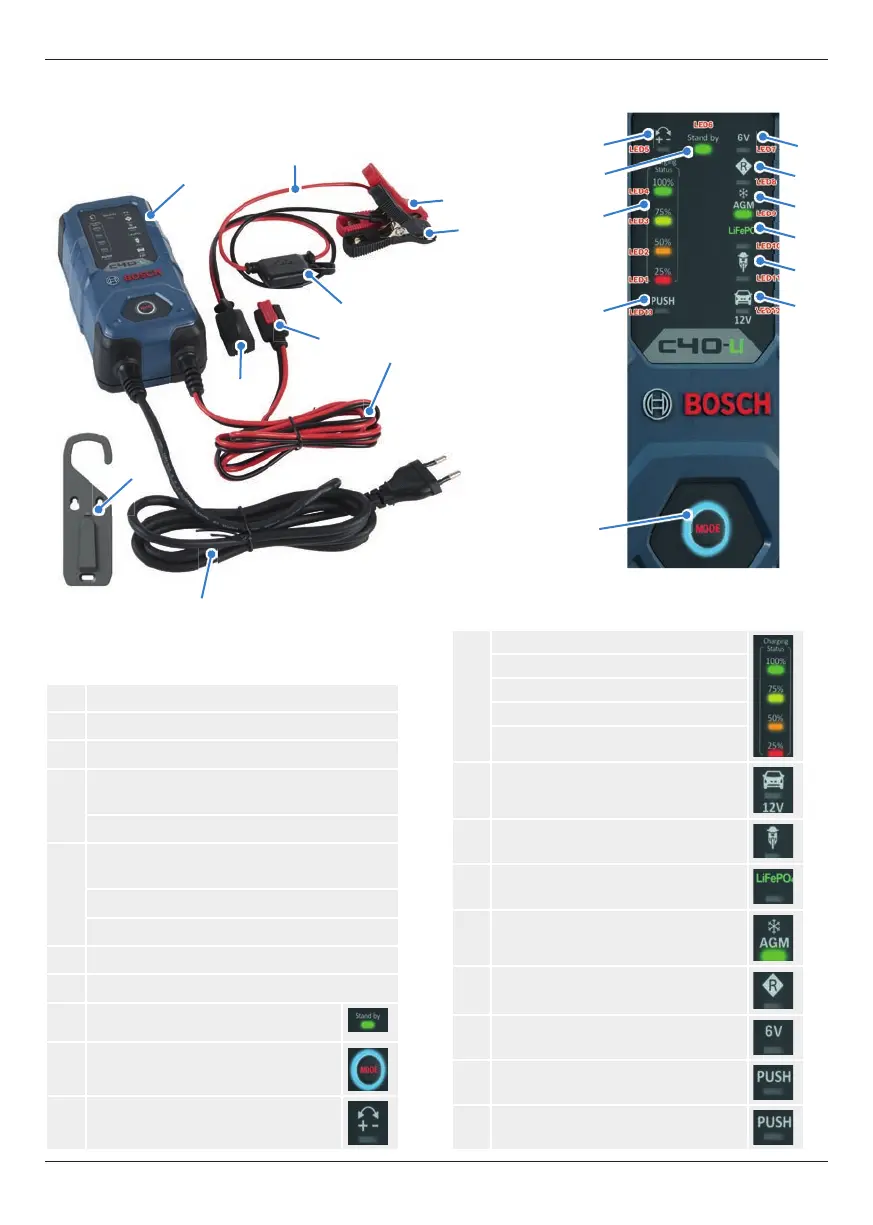

Device description
(1)
(5)
(4)
(5a)
(2)
(8)
(16)
(15)
(14)
(13)
(12)
(11)
(17)
(18)
(19)(19)
(4a)
(7)
(6)
(5b)
(5b)
(5b)
(3)
(9)
(10)
