ENCharger Bosch C40-Li I Operating instructions
17

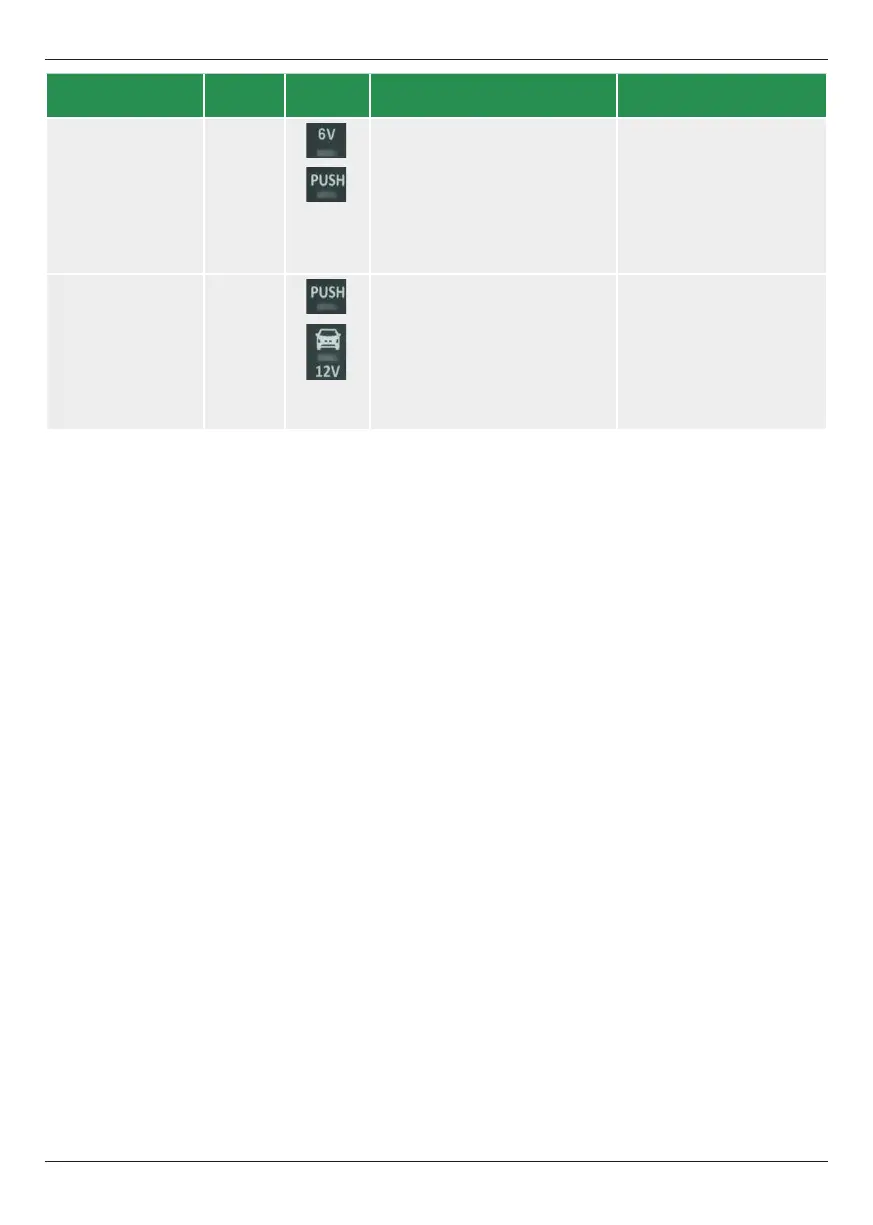

Mode Output Indicator Operation Battery types supported
Mode 7
Push Mode
0.5 A
Press and hold the mode
button for 5 seconds, LED 13
6 V LED, press the MODE
button again to select 6 V
push mode.
6 V batteries. 25 % LED
between 0.5 V a
nd 3.75 V
Mode 8
Push Mode
0.5 A Press and hold the mode
button for 5 seconds, LED13
12 V LED, press the MODE
button again to select 12 V
push mode.
12 V batteries. 25 % LED
between 0.5V and 3.75 V
Note:
1) For regeneration mode, make sure that all connections between the battery and the
electrical system are disconnected.
4.1 Pulse charging
This is an automatic charging function that cannot be selected manually. If the battery
voltage in mode 1 & 4 is between 7.5 V (± 0.5 V) and 10.5 V (± 0.5 V), the charger
automatically switches to pulse.
4.2 Trickle loading phase
The charger has an automatic trickle charging phase with max. 300 mA at full charge.
4.3 Maintenance phase
When the battery is fully charged, 100 % LED will light up, the charger enters
maintenance phase to keep the battery capacity in full condition.
4.4 Memory function
If the charger is unplugged during charging, the device saves the previously selected
mode. When reconnected to the mains and if the battery is of the same type
(6 V or 12 V), the device automatically starts in the last mode.
Attention: If the type of connected battery is different from the last one used (e.g. if the
last time was in cold/AGM mode and you need to connect a normal lead-acid battery
this time), please reselect the mode manually to avoid overcharging and damage.
For mode 5 (regeneration mode) and mode 7, 8 (push mode) there is no memory
function.
4.5 Battery detection
As soon as the charger is connected to a 7.3 V - 10.5 V battery, 6 V & 12 V LED will
