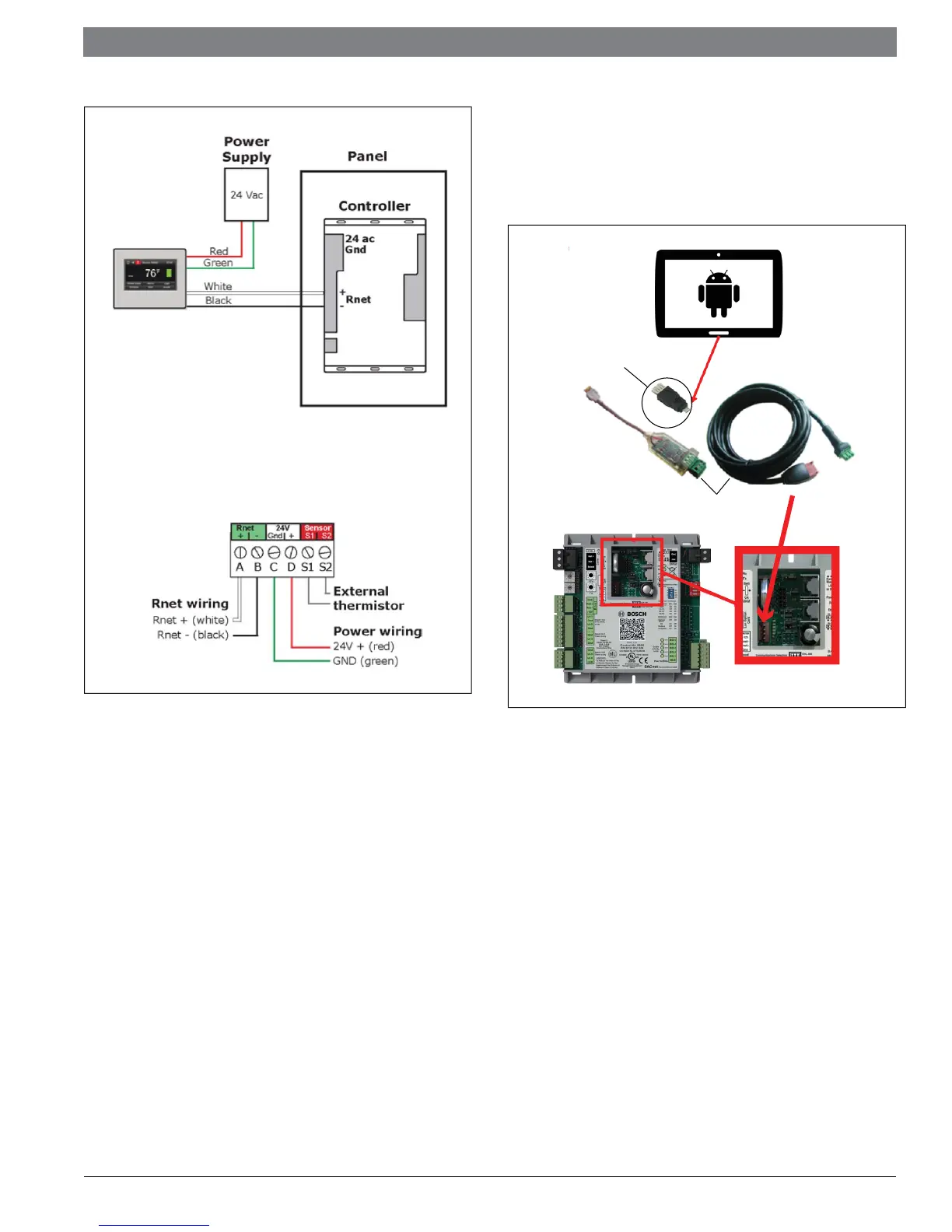

Figure 8
Control Air
M/M+
connector
Establishing Communication
Plug the USB-L cable to the USB (Bosch part number 8733-927-403)
to USB micro adapter (fi eld supplied) and then to the Android tablet and
controller before launching Virtual Control Air M/M+ (Equipment Touch
(OEM) app). The DDC controller must be connected to a 24 VAC source
and powered on.
Figure 9
8733-927-403
Not provided
by Bosch
