D278S/D298S | Installation Guide || 3.0 Wiring
4 Bosch Security Systems, Inc. | 11/10 | F01U069160-11
3.4 D298S and PAM-4 Auxiliary Relay Module
Refer to Figure 3 and Table 2 to wire the PAM-4 Auxiliary Relay Module.

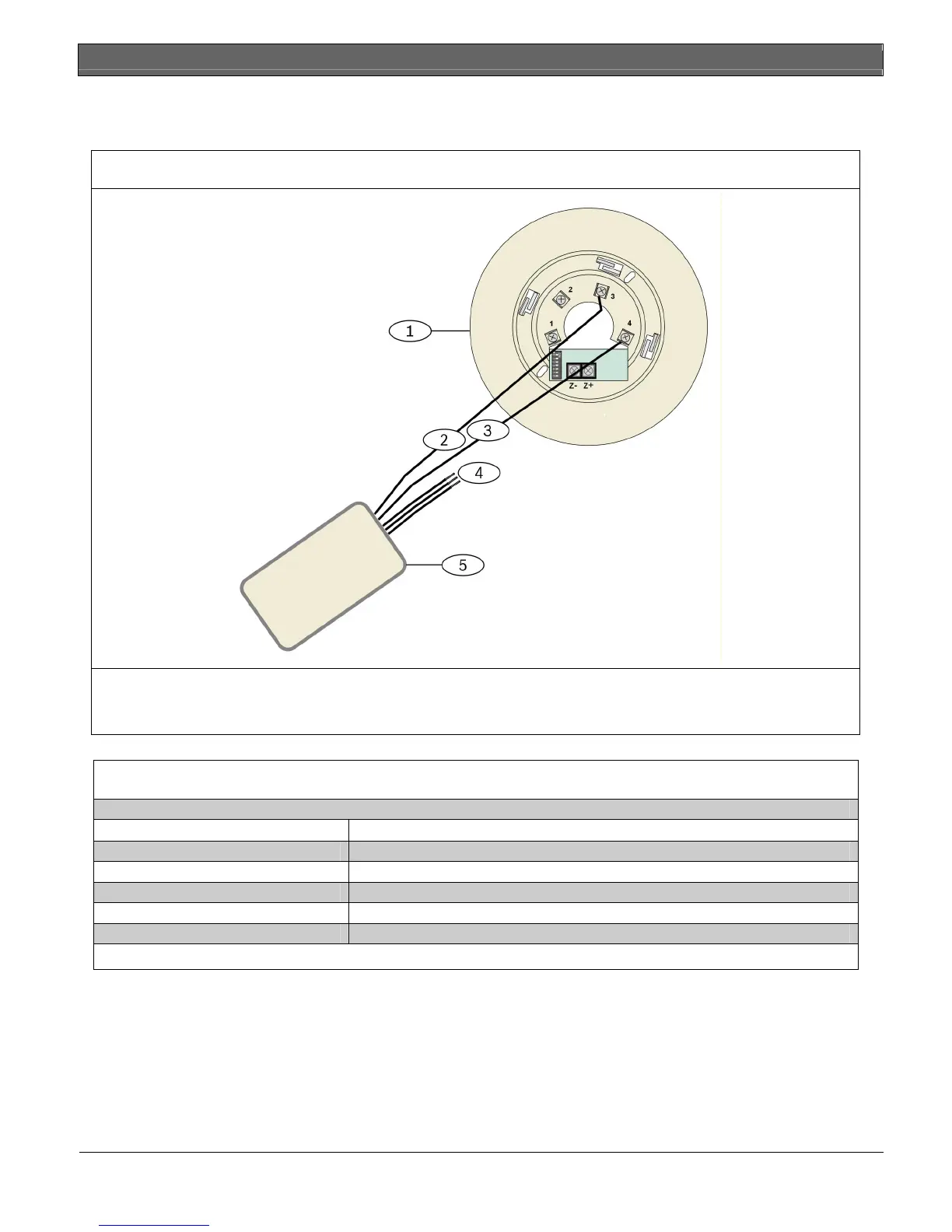

Figure 3: D298S and PAM-4 Wiring
1 - D298S
2 - Red wire
3 - Black wire
4- Relay contact wiring
5 - PAM-4 Auxiliary Relay Module
Table 2: PAM-4 Relay Module Contact Wiring
Wire Lead Color
Description
Red Positive
Black Negative
Yellow Normally closed
Blue Common
Orange Normally closed
Contact descriptions are inactive, not energized.
