D7024 | Operation and Installation Guide | 8.0 Installation Guide for UL Listed Systems
Bosch | 7/05 | 31499J 61

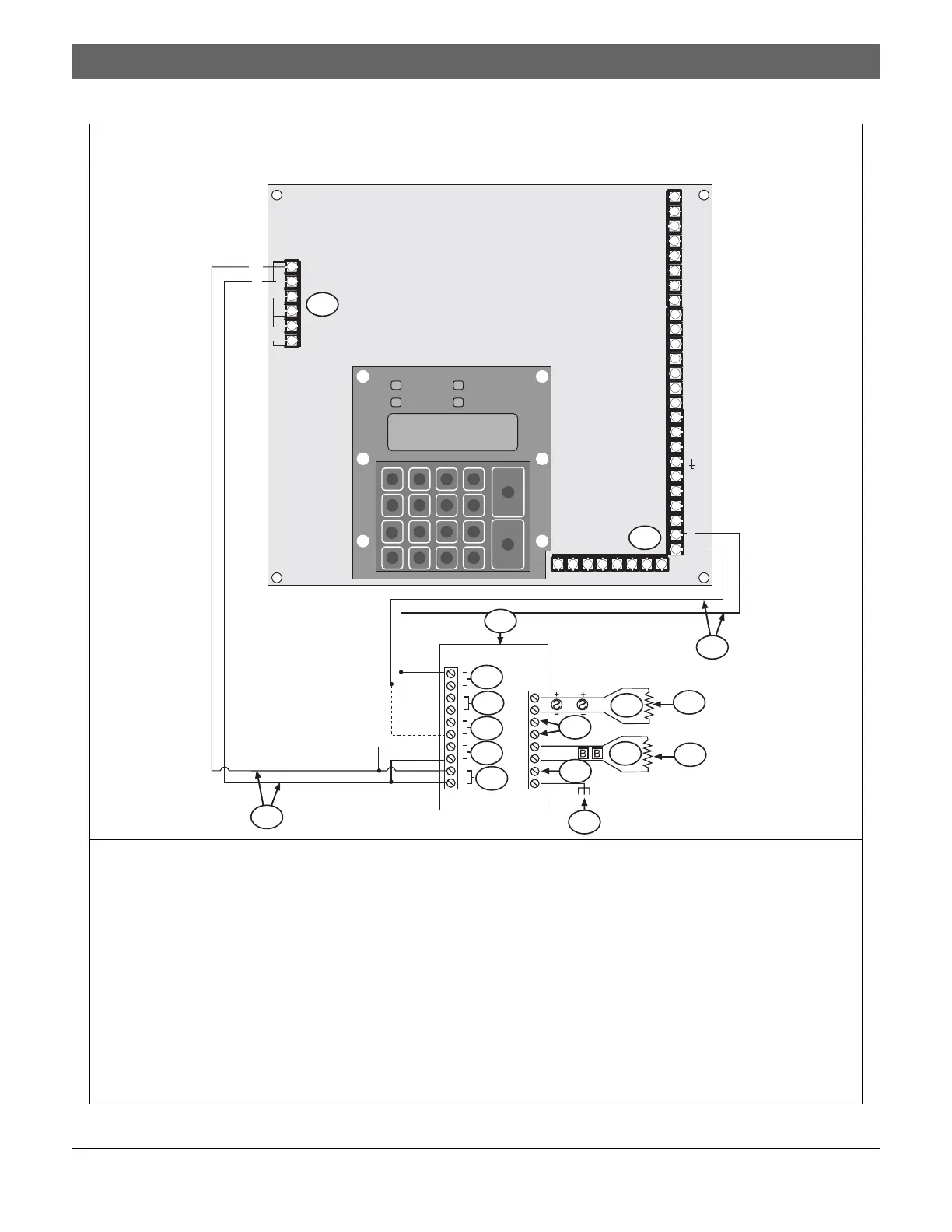

Figure 21: Wiring the D132B
1 – NAC output
2 – Input point
3 – Power limited and supervised
4 – 2.21 k
Ω EOL power limited and supervised (P/N: 25899)
5 – 24 V two-wire reversing detectors
6 – 24 V NACs
7 – Earth ground
8 – Not used
9 – D132B
