DS860 Series Installation Instructions
P/N: 29703K Page 4

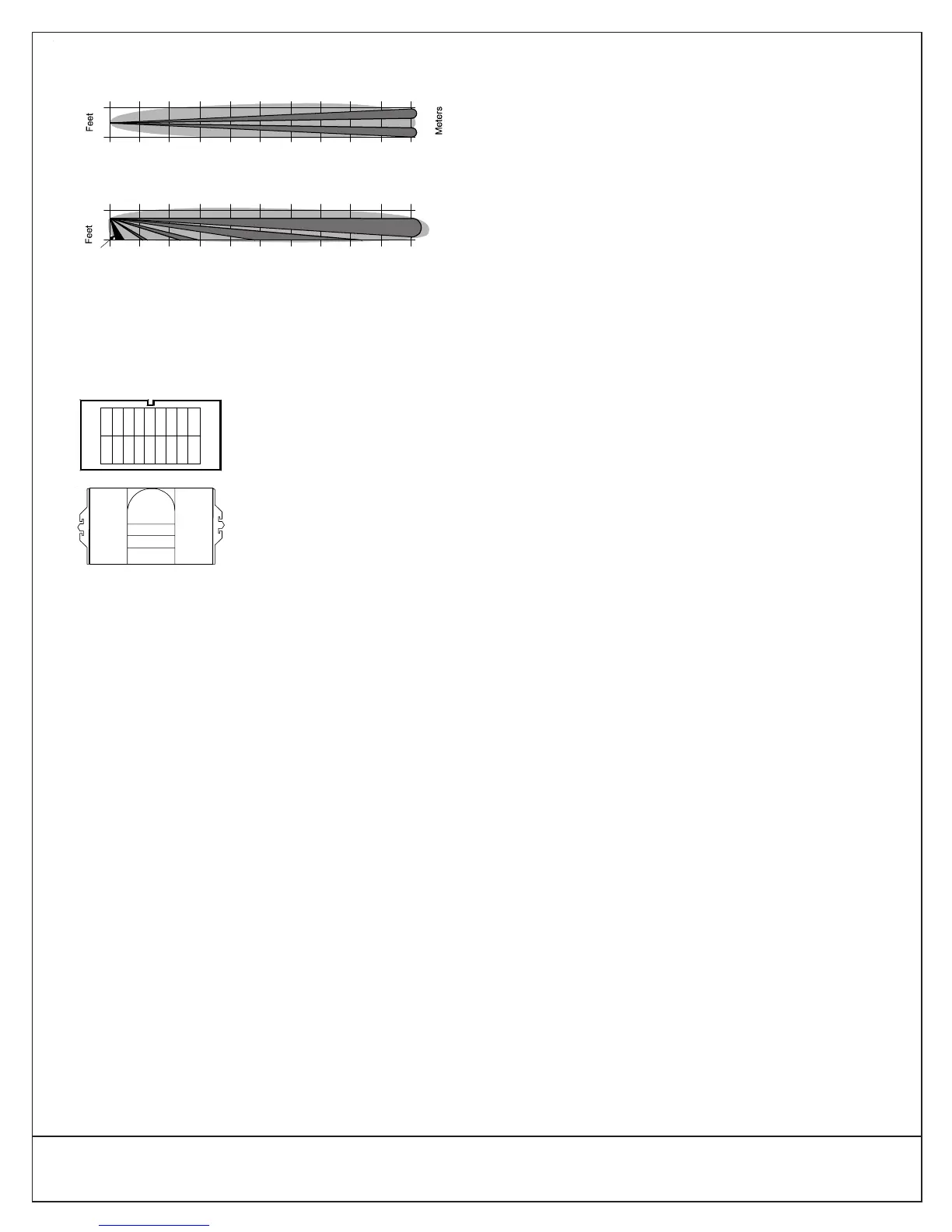

Long Range Barrier Coverage
Meters
30
0
Feet
100
0
5
5
TOP VIEW
10 20 30 40 50 60 70 80 90
369121518212427
0
0
1.5
1.5
A
B
C
D
Meters
30
0
Feet
100
0
10
SIDE VIEW
10 20 30 40 50 60 70 80 90
369121518212427
0
-3°
3
Meters
A
B
C
D
7.5
2.3
Look-Down
10.1 Pattern Masking
The PIR coverage pattern may be masked using masking tape or
electrical tape on the inside (grooved side) of the lens to cover the
appropriate pattern areas as shown in the following illustrations.
Always walk test for the desired coverage after masking.
A
BCD
E
FGH
I
NJQKOLRMP
DS860 Standard Lens
A
B
C
D
Optional Long Range
Barrier Lens
NOTE: Masking only eliminates the PIR portion of the coverage
and has no effect on the microwave pattern.
