Length Measurement

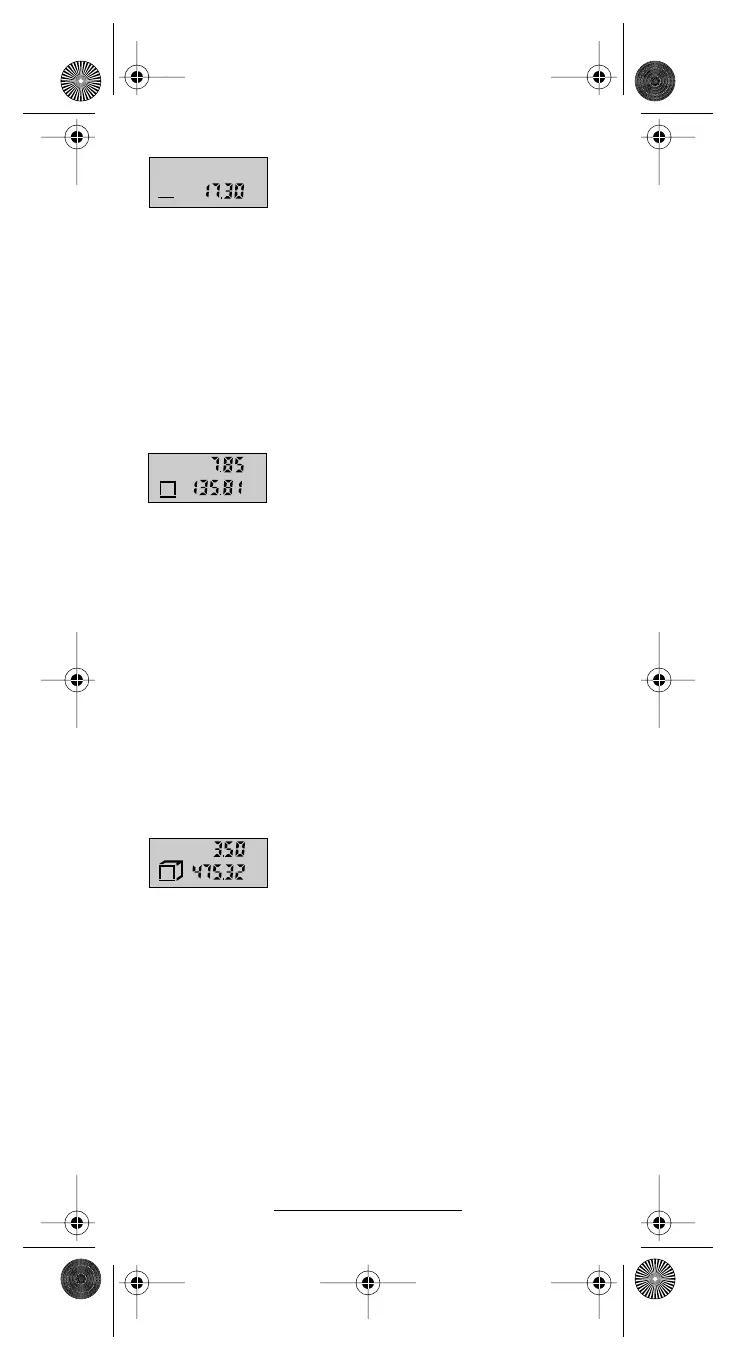

In the “Length Measurement” operation
mode, a line is indicated in the lower left
corner of the display.
Place the bottom side of the unit on the
starting-point of the measurement (e. g.
against a wall). Aim the unit towards the
target surface at a right angle.
To measure, press the “Measure” push
button 2. The completion of the meas-
urement is indicated by an acoustic sig-
nal and the measured value appears on
the bottom right side of the display. The
maximum possible length per measure-
ment is 20 meters.
Surface Measurement
To access the surface measurement
mode, repeatedly press the “Measuring
operation” push button 1, until a square
appears in the lower left corner of the dis-
play.
Carry out the measurement by pressing
the “Measure” push button 2. The meas-
ured value appears on the upper right
side of the display. With the next meas-
urement, the surface is immediately cal-
culated and the result appears on the
bottom right side of the display 4. At the
same time, the last length measurement
is indicated on the upper right side of the
display. The flashing bars of the unit indi-
cate which measured length value it ex-
pects. The maximal possible surface
value per measurement is 400 m
2
.
Volume Measurement
To access the volume measurement
mode, repeatedly press the “Measuring
operation“ push button 1, until a cuboid
appears in the lower left corner of the dis-
play. Carry out the measurement by
pressing the “Measure” push button 2.
The measured value appears on the up-
per right side of the display. With the next
measurement, the surface is immediately
calculated. To receive the volume, a third
measurement must be carried out. The
result of the volume appears on the bot-
tom right side of the display 4, while the
last length measurement is indicated on
the upper right side. The flashing bars of
the unit indicates which measured length
value it expects. The maximal possible
volume per measurement is 8000 m
3
.
m
m
m
2
m
3
m
