Geothermal (Earth-Coupled) Systems
Closed loop and pond applications require
specialized design knowledge. No attempt at these
installations should be made unless the dealer has
received specialized training. Utilizing the Ground
Loop Pumping Package (GLP), makes the
installation easy. Anti-freeze solutions are utilized
when low evaporating conditions are expected to
occur. Refer to the GLP installation manuals for
more specific instructions. (Figure #22)

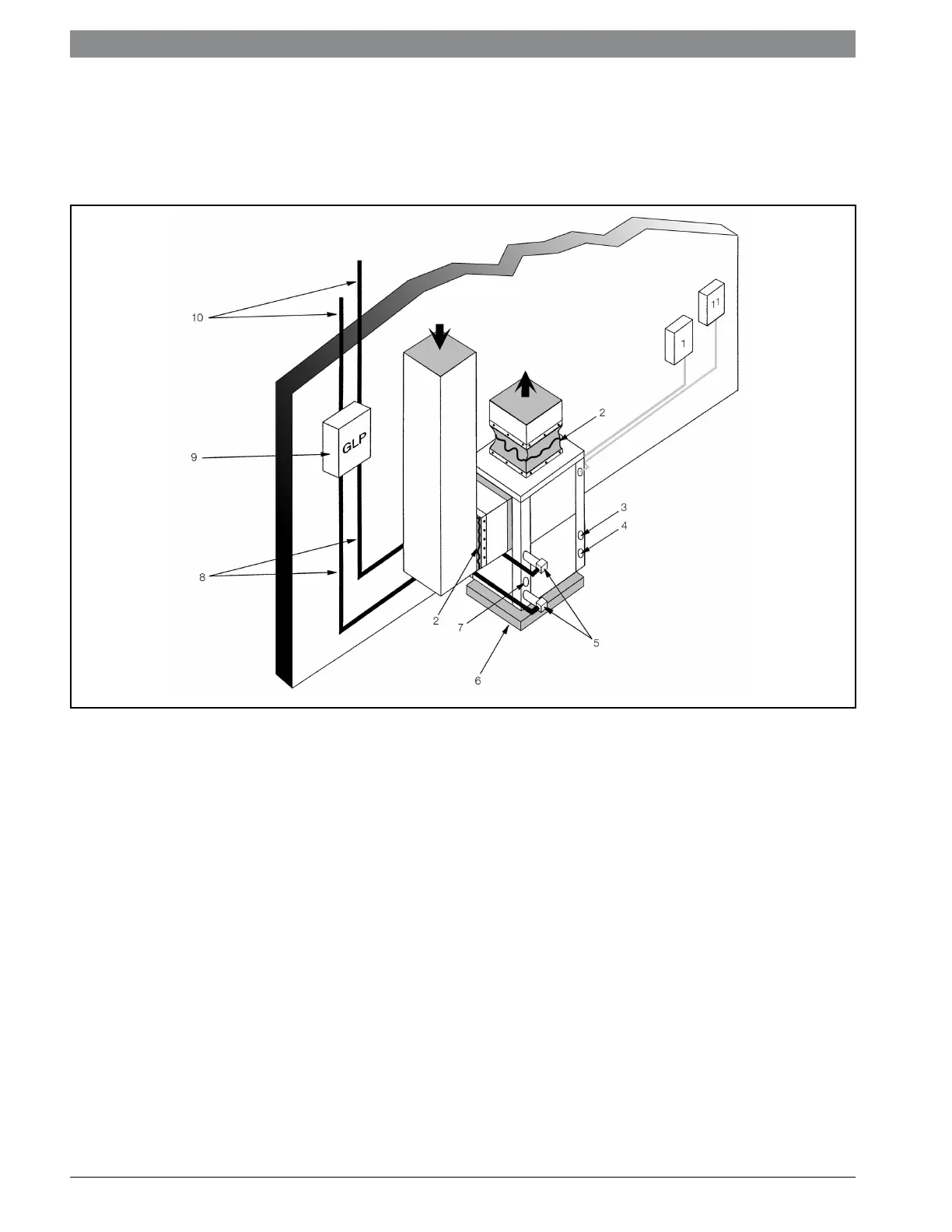

Figure # 22
[1] Line voltage disconnect (unit)
[2] Flex duct Connection
[3] Low voltage control connection
[4] Line voltage connection (unit)
[5] P/T ports
[6] Vibration pad
[7] Condensate drain connection
[8] Ground loop connection kit
[9] Ground loop pumping package
[10] Polyethylene with insulation
[11] Line voltage disconnect (electric heater)
