Operation
1. Activate the RCR1 by pressing its power
on/off button. The unit emits a single beep,
and icons in the lower portion of the LCD
display appear, showing all available
options. This confirms that the unit is
activated, but the GRL160DHV and RCR1
have not been turned on.

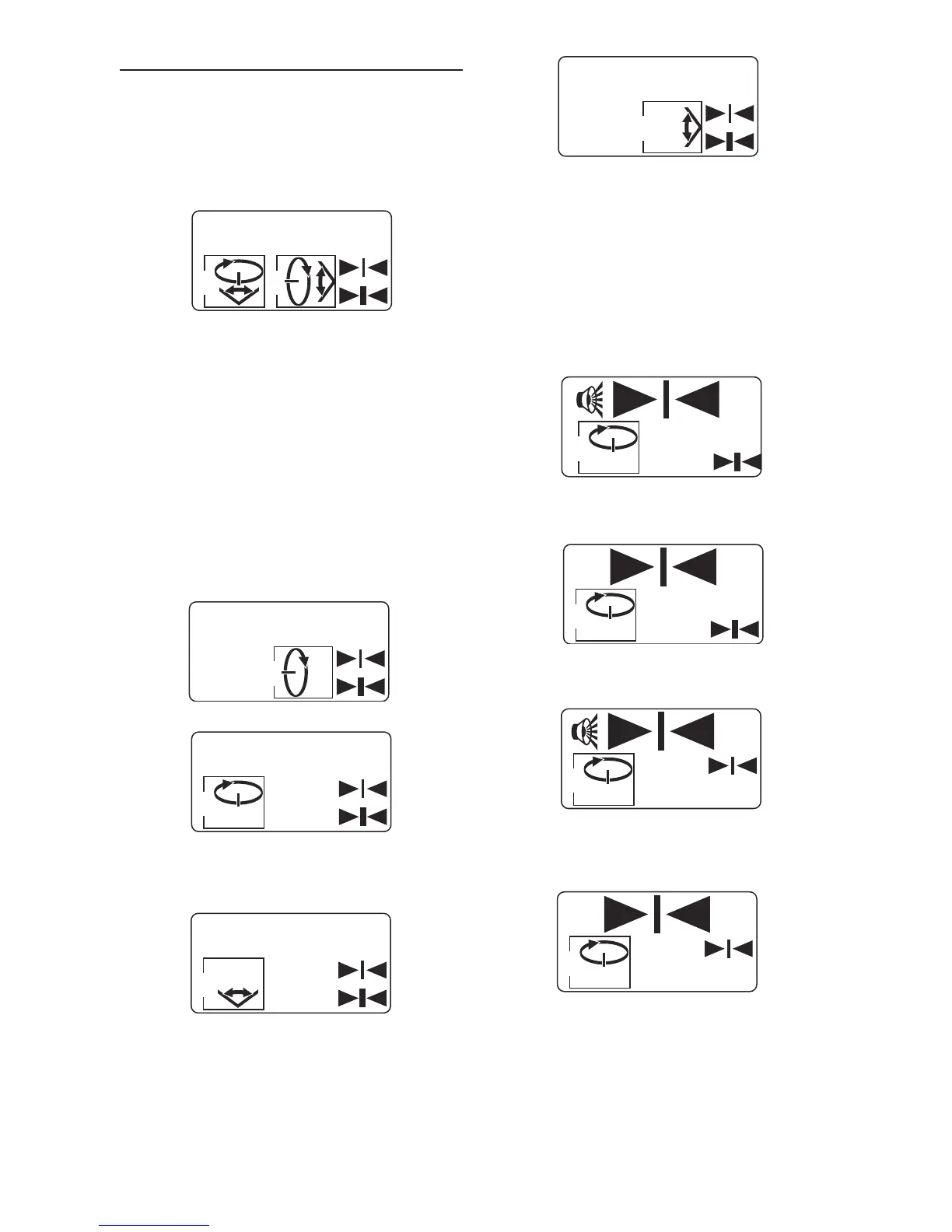

RF remote control / Laser detector activated
2. Turn on the tool by pressing the laser
on/off button from the keypad. As soon as
one or both of the lasers are turned on,
the displayed icons confirm the selected
laser(s) (level, plumb, or both) and mode
(Spin or Line Dither/Scan). The level and
plumb lasers start up in Spin mode, at the
slowest speed.
Note: The LCD display shows the laser modes
for commands transmitted to the tool from the
RF remote control. Commands made from the
tool controls are not shown on the RF remote
control/laser receiver-detector LCD display.
Plumb laser, Spin mode, Detector off
Level laser, Spin mode, Detector off
Press the Line Dither/Scan button 24 or 30
again to change to Line Dither/Scan mode.
Level laser, Line Dither/Scan Mode,
Detector off
Plumb laser, Line Dither/Scan Mode,
Detector off
3. Laser Detection To turn on the laser
detector, press the Coarse/Fine Select
button 45. On startup, the laser detector
resolution is coarse, with the beeper on
indicated by the icons on LCD display.
Continue pressing the Coarse/Fine 45
Select button to cycle through the following
options:
Beeper on, Laser detector on, Coarse
resolution, Level laser, Spin mode
Beeper off, Laser detector on, Coarse
resolution, Level laser, Spin mode
Beeper on, Laser detector on, Fine resolution,
Level laser, Spin mode
Beeper off, Laser detector on, Fine resolution,
Level laser, Spin mode
