16 en | Installing the Pendant Arm Wall, Corner, and Mast (Pole) Mounts VG4 Modular Camera Series
F.01U.216.010 | 8.0 | 2011.02 Installation Manual Bosch Security Systems, Inc.
6. Choose the appropriate mounting kit to use, depending on the location of the AutoDome,
either wall mount, corner mount, or mast (pole) mount.
If the kit contains a Power Supply Box, refer to Section 2.3 Mount Power Supply Box,
page 16.
If you are using the Mounting Plate with a 24 V VG4 AutoDome, refer to
Section 2.8 Installing the VG4-A-ARMPLATE, page 28.
2.3 Mount Power Supply Box
Before mounting the Power Supply Box decide if you should wire the box through the holes in
the bottom or back of the box. If wiring the box through the back, move the two (2) seal plugs
to the bottom through the holes before mounting.

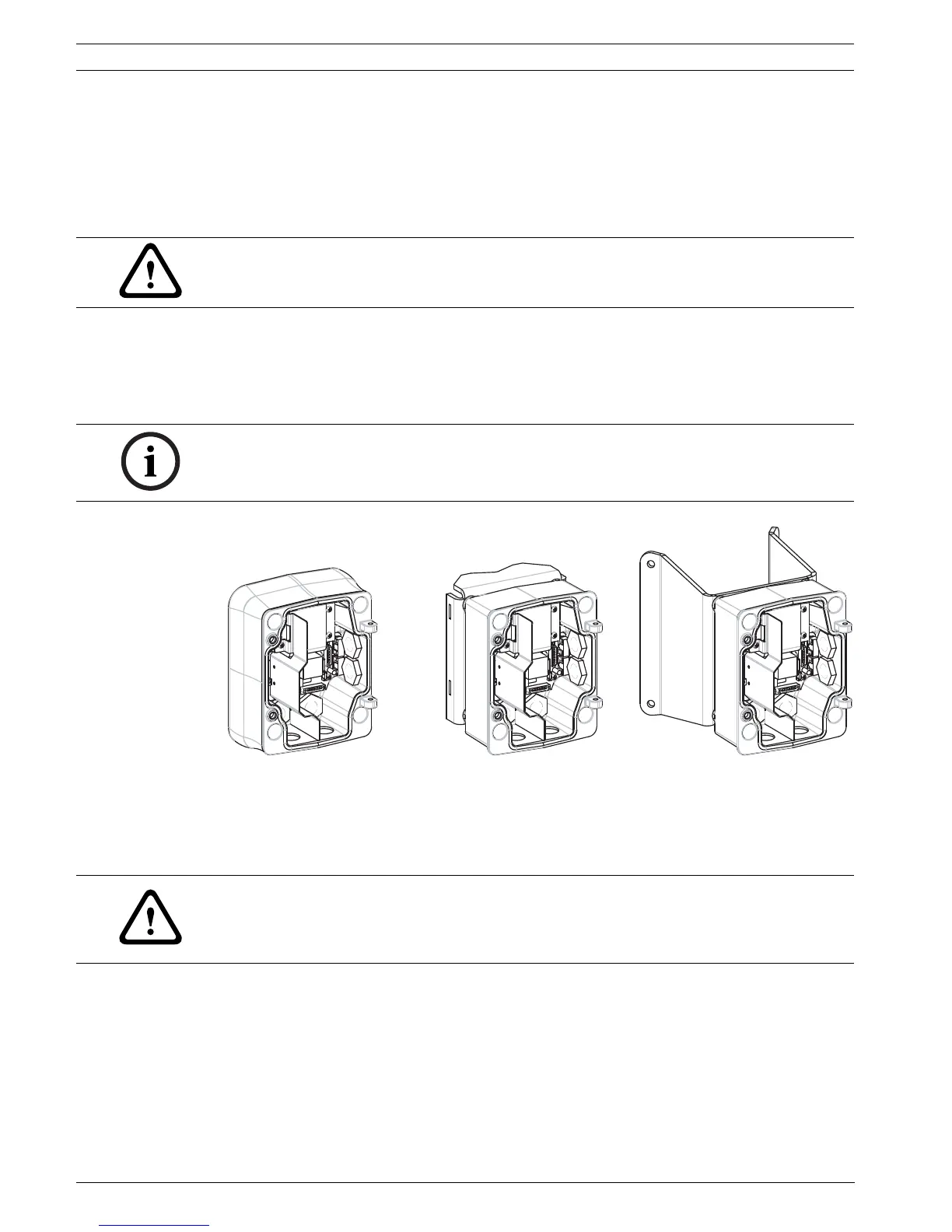

Figure 2.1 Power Supply Wall, Mast (Pole), and Corner Mounts
1. Use the wall mount template supplied in the packaging box to locate the four mounting
holes for the Power Supply Box.
2. Drill four (4) holes for the mounting anchors. If installing outdoors, apply a weatherproof
sealant around each hole at the mounting surface.
3. Place the Power Supply Box into the optional Trim Skirt.
CAUTION!
Select a rigid mounting location to prevent excessive vibration to the AutoDome camera.
NOTICE! Use 3/4-inch (20-mm) NPS fittings for the holes on the bottom and back of the box.
Use 1/2-inch (15-mm) NPS fittings for the side holes.
WARNING!
A stud diameter of 6.4 mm (1/4 inch) to 8 mm (5/16 inch) able to withstand a 120 kg (265 lb)
pull-out force is recommended. The mounting material must be able to withstand this pull out
force. For example, 19-mm (3/4-inch) minimum for plywood.
To Next Page
