90 en | Cable and Wire Standards VG4 Modular Camera Series
F.01U.216.010 | 8.0 | 2011.02 Installation Manual Bosch Security Systems, Inc.

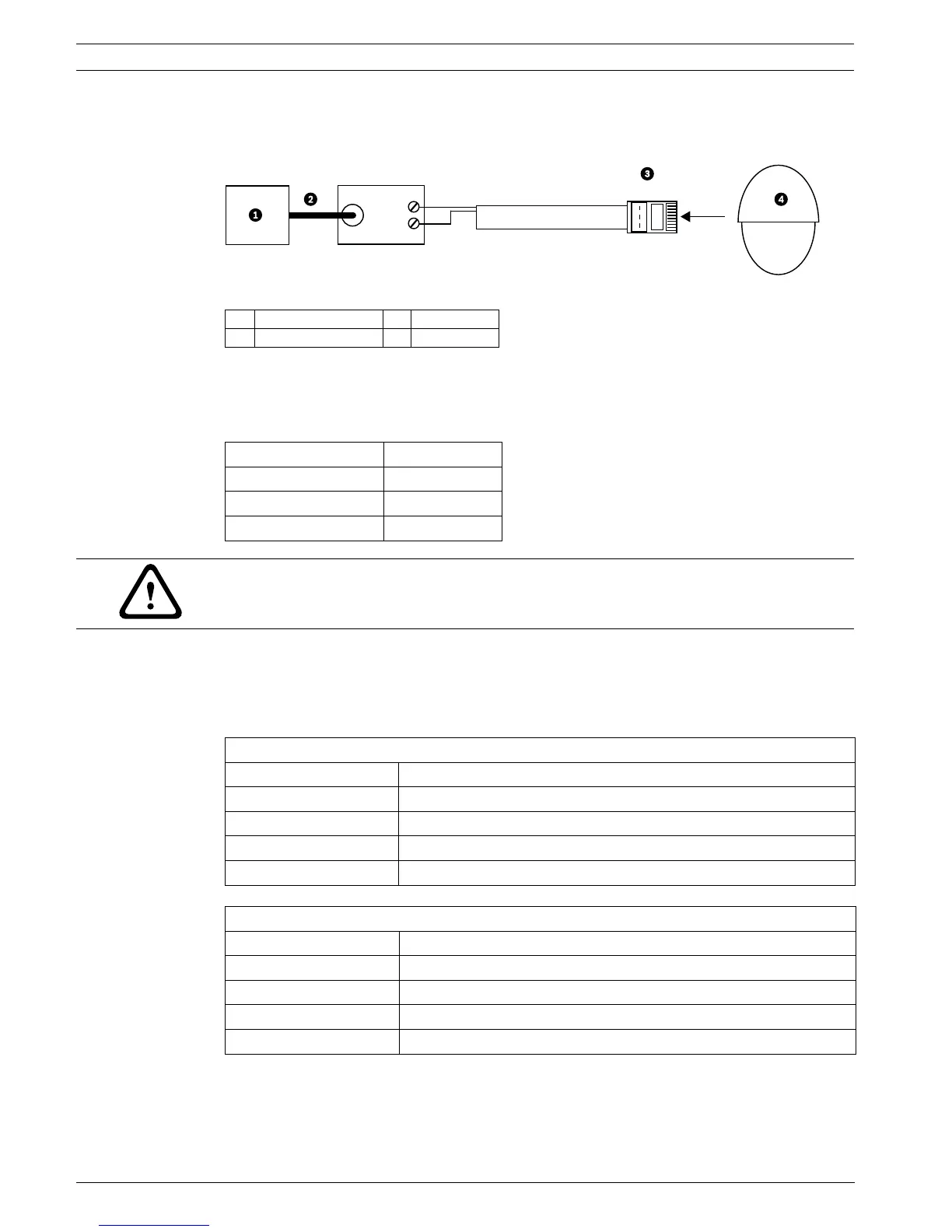

The following figure illustrates the connections necessary to transmit video and control over a
UTP cable.
Figure 5.1 Video and Control over UTP
Ethernet
AutoDome Ethernet models are connected to a 10/100 Base-T network either directly or via a
hub. Both video and control are transmitted over a standard TCP/IP network using the built-in
web server.
Multi-mode Fiber Optic
Fiber Optic models transmit both video and Biphase control over an analog singlemode or
multimode fiber. A full or half duplex, multimode IP media converter fiber optic module is also
available.
1 Head End Video 3 Pins
2Coax 4AutoDome
Cable Type UTP CAT-5
Maximum Distance 100 m (328 ft)
Bandwidth 10/100 Base-T
Terminal Connector RJ45
+
-
1(+) & 2(-)
RJ45
WARNING!
Do not connect the RJ45 connector unless using UTP video or Ethernet.
Multimode
Fiber Type 50/125 µm, 62.5/125 µm, low loss multimode glass fiber
Maximum Distance 4 km (2.5 miles)
Minimum Bandwidth 20 MHz (Video - 850 nm / Control - 1300 nm)
Requirement Bosch LTC 4629 Fiber Receiver at controller end of system
Terminal Connector ST
Singlemode
Fiber Type 9/125 µm, low loss single glass fiber
Maximum Distance 69 km (43 miles)
Minimum Bandwidth 20 MHz (Video - 1310 nm /Control - 1550 nm)
Requirement Single mode fiber receiver at controller end of system
Terminal Connector ST
