Loss of UL/CSA conformity due to modifications at the device

UL and CSA marking applies only to the device upon delivery. After

modifying the device, verify the UL and the CSA conformity.

9 Interfaces

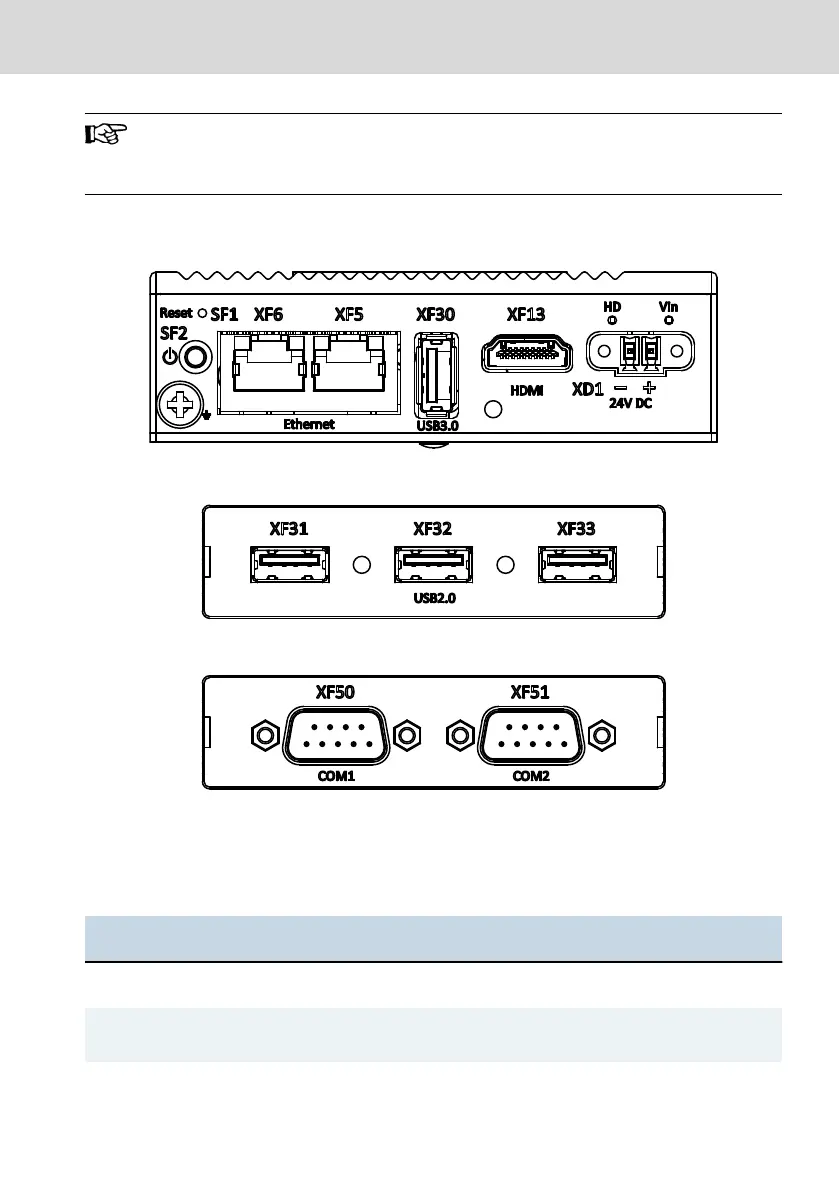

Fig. 9-1: Interfaces device variant NA

Fig. 9-2: Additional interfaces at device variant NB

Fig. 9-3: Additional interfaces at device variant NC

9.1 Overview

The following connections are available:

Labeling at the housing

Connection type Connection type (at the

device)

Mating connector or ca-

ble (from outside)

XD1 PC voltage supply Male connector strip, 2-

Female connector strip,

2-pin

XF5, XF6 Ethernet interfaces

10/100/1000 Base-T

RJ45 socket, 8-pin RJ45 plug

(twisted pair, 8-wire)

IndraControl PR21 Embedded Automa-

tion Computer

9/29

Interfaces

R911389662_Edition 02 Bosch Rexroth AG
