12 Device description
The PR21 with Ubuntu Core does not support any UPS.
1
2
3
4
5
6 7 8 9
10
11
12
13
1514
① Functional earth
② Power button
③ Reset button
④, ⑤ Ethernet interfaces
⑥ USB port (USB3.0)
⑦ HDMI port
⑧ LED, hard disk access
⑨ LED power
⑩ Voltage supply
⑪, ⑫, ⑬ USB interfaces (USB2.0)
⑭, ⑮, Serial interfaces

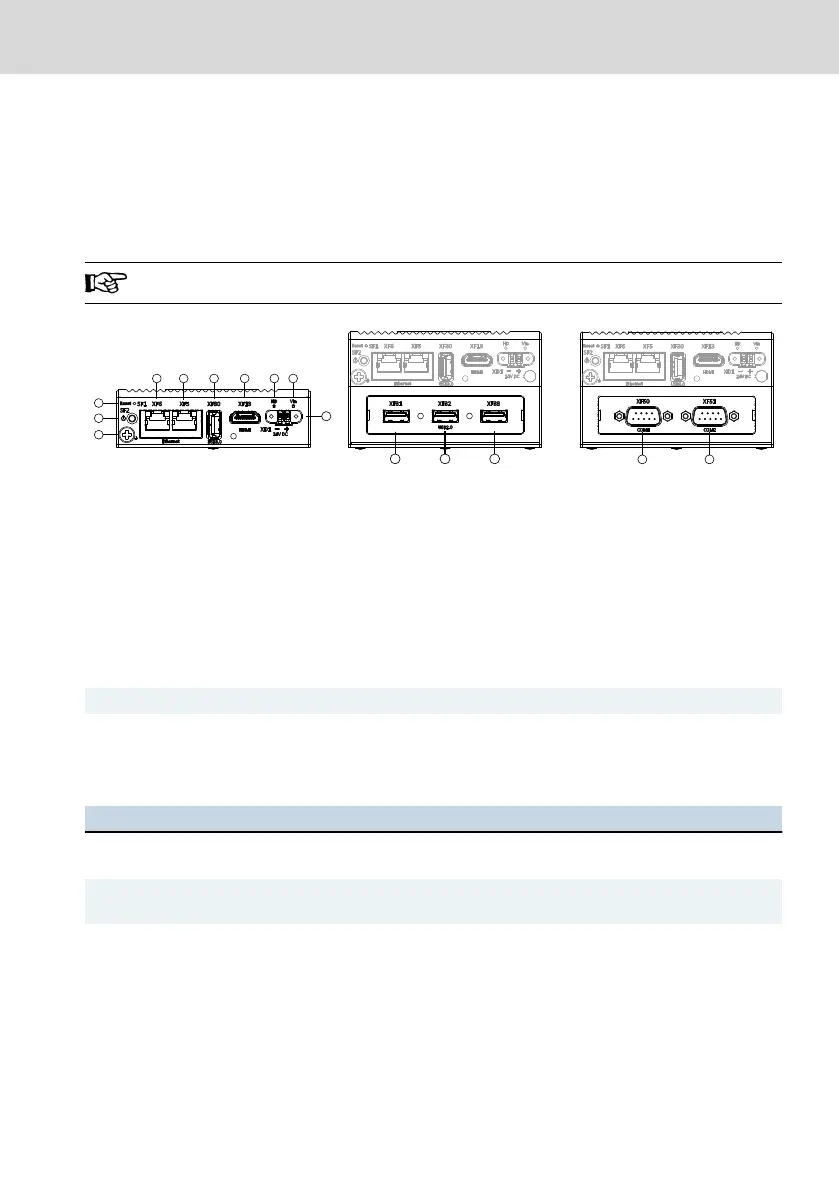

Fig. 12-1: Device views
12.1 Reset and power buttons
Reset button SF1 Hardware reset
Power button SF2 On, off Operating system shutdown
Tab. 12-1: Reset and power buttons
12.2 Operating and error display
LED On Off Flashes
Vin S0: green, S3/S5: yel-
low
No supply voltage con-
nected
N/A
HD N/A no mSATA access or de-
vice shut down
mSATA access read/
write: flashing green
S0 Working
S3 Standby
S5 Soft-Off
Tab. 12-2: LED description
