Attaching Non-marring
Overshoe
Your tool is equipped with a protective
plastic overshoe that protects finer
surfaces.

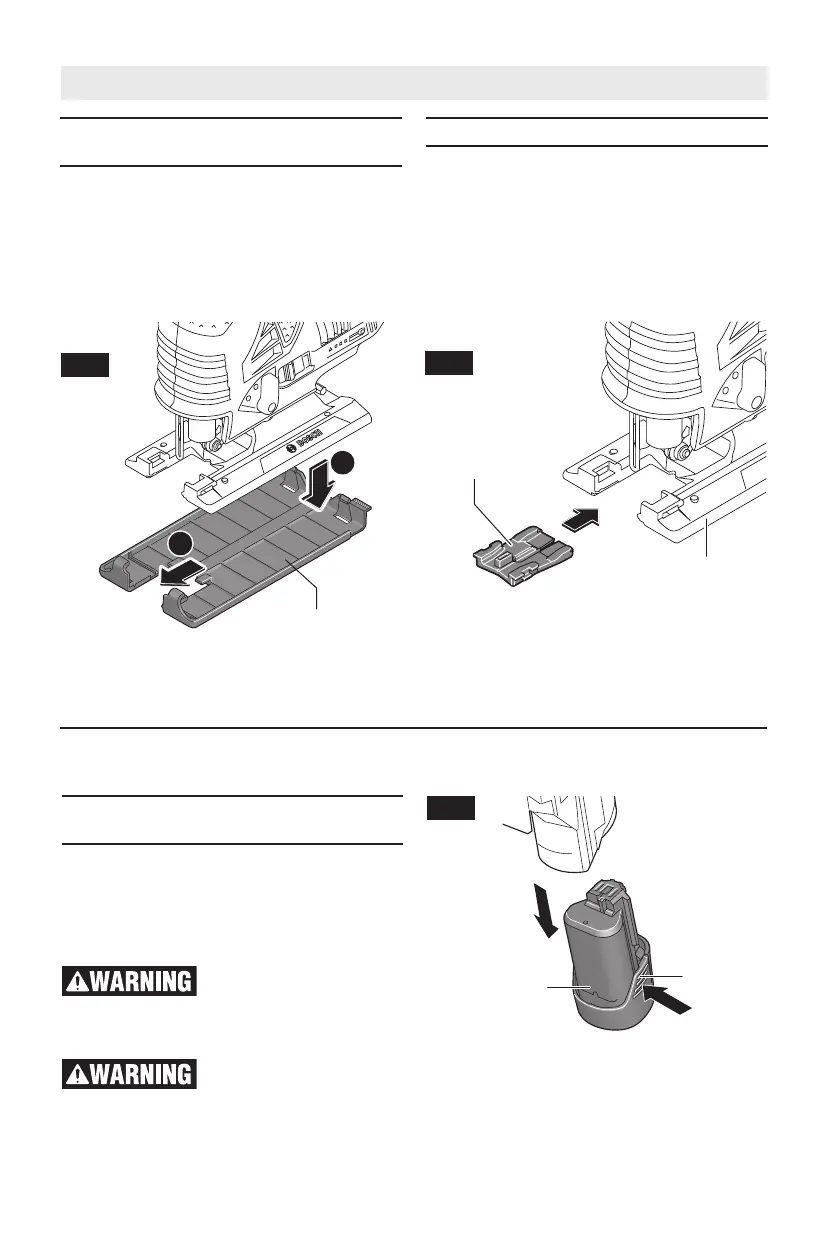

To attach, hook overshoe over front of
metal footplate and snap into place at
rear of footplate (Fig. 4).
Anti-splinter Insert
To minimize splintering of the top
surface of the material being cut, place
the JA1013 anti-splinter insert in the
blade opening of the footplate, or the
non-marring overshoe (Fig. 5).
Note: This insert will only work with
blades that have ground sides such as
T301CD, TB1B, T101D, and T101DP.
-10-
FIG. 4
FIG. 5
NON-MARRING
OVERSHOE
JA1013
ANTI-SPLINTER
INSERT
FOOTPLATE
Inserting and Releasing
Battery Pack
Release battery pack from tool by
pressing on both sides of the battery
release tabs and pull downward (Fig. 6).
To insert battery, align battery and slide
battery pack into tool until it locks into
position. Do not force.
Ensure the switch is in
the off position before
inserting battery pack. Inserting the battery
pack into power tools that have the switch
on invites accidents.
If battery release tabs
are cracked or otherwise
damaged, do not insert into tool. Battery
can fall out during operation.
FIG. 6
RELEASE
TABS
BATTERY
PACK
Assembly
