Bosch JS120 User Manual

Model number . . . . . . . . . . . . . . . . . . . . . . . . . . JS120
Maximum Capacities
Stroke length . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/4" (18 mm)
Wood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1/2" (70 mm)
Aluminium . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8" (3 mm)
Mild steel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8" (3 mm)
Allowed ambient temperature
During charging . . . . . . . . . . . . . . . . . . . . . . . . .32...113 °F (0...+45 °C)
During operation and storage . . . . . . .–4...122 °F (–20...+50 °C)
-8-
Functional Description and Specifications
Disconnect battery pack from tool or place the switch in the locked or
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.

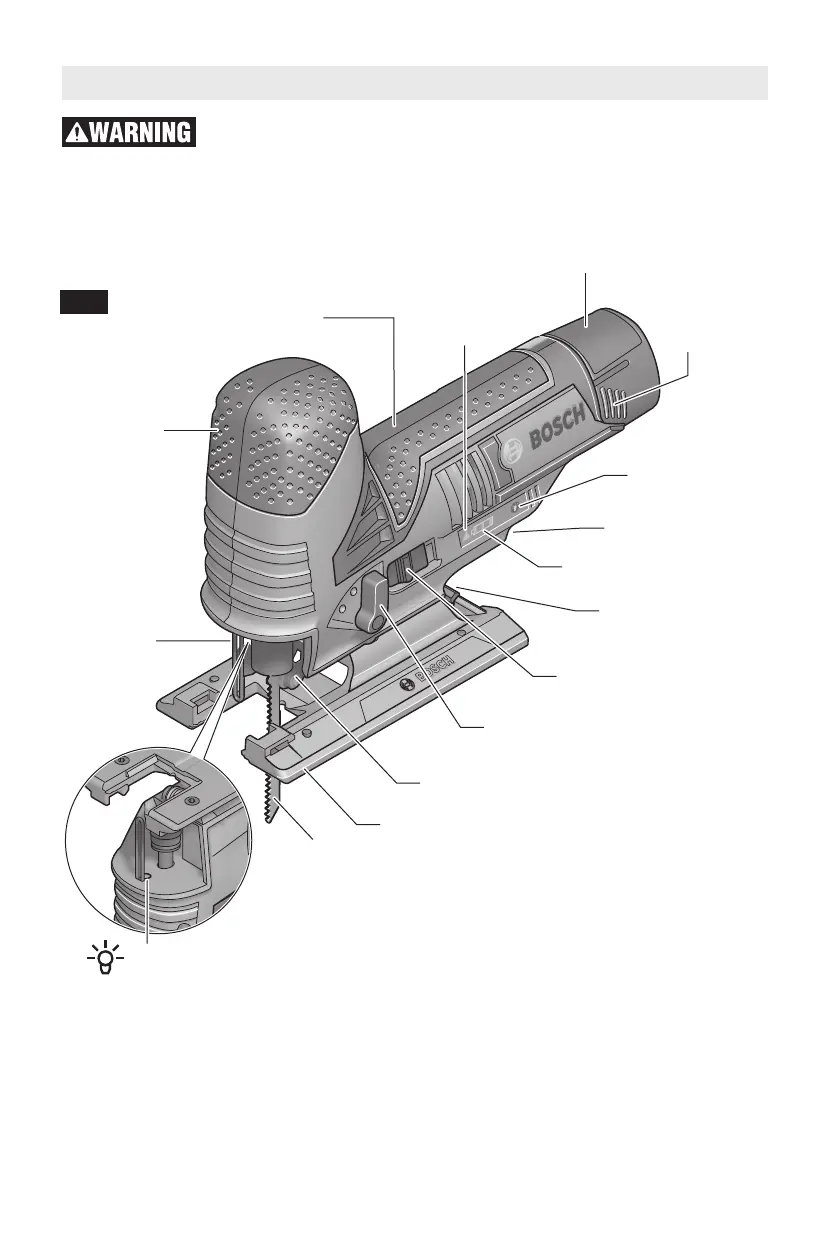

JS120 Cordless Jig Saw
SLIDE ON-OFF SWITCH
BLADE ORBIT SELECTOR LEVER
BLADE
GUIDE ROLLER
FOOTPLATE
FINGER
GUARD
BATTERY
PACK
RELEASE
TABS
BATTERY PACK
ALLEN WRENCH
& STORAGE AREA
BATTERY CHARGE
INDICATOR
TEMPERATURE
OVERLOAD
PROECTION
INDICATOR
FIG. 1
Battery Packs/Chargers
Please refer to the battery/charger list, included with your tool.
NOTE: For tool specifications refer to the nameplate on your tool.
LED
INSULATED
GRIPPING
SURFACES
LED WORKLIGHT
ON/OFF SWITCH
VARIABLE SPEED DIAL
INSULATED
GRIPPING
SURFACES
