Bosch JS470E User Manual

-8-
INTAKE
VENTILATION
OPENINGS
VARIABLE SPEED
CONTROLLED
TRIGGER SWITCH
(Model JS470E only)
FOOTPLATE
DUST BLOWER
LEVER
BLADE ORBIT
SELECTOR LEVER
BLADE CHANGE
LEVER
GUIDE
ROLLER
“LOCK-ON” BUTTON
(Model JS470Eonly)
HEX WRENCH
AND STORAGE
COMPARTMENT

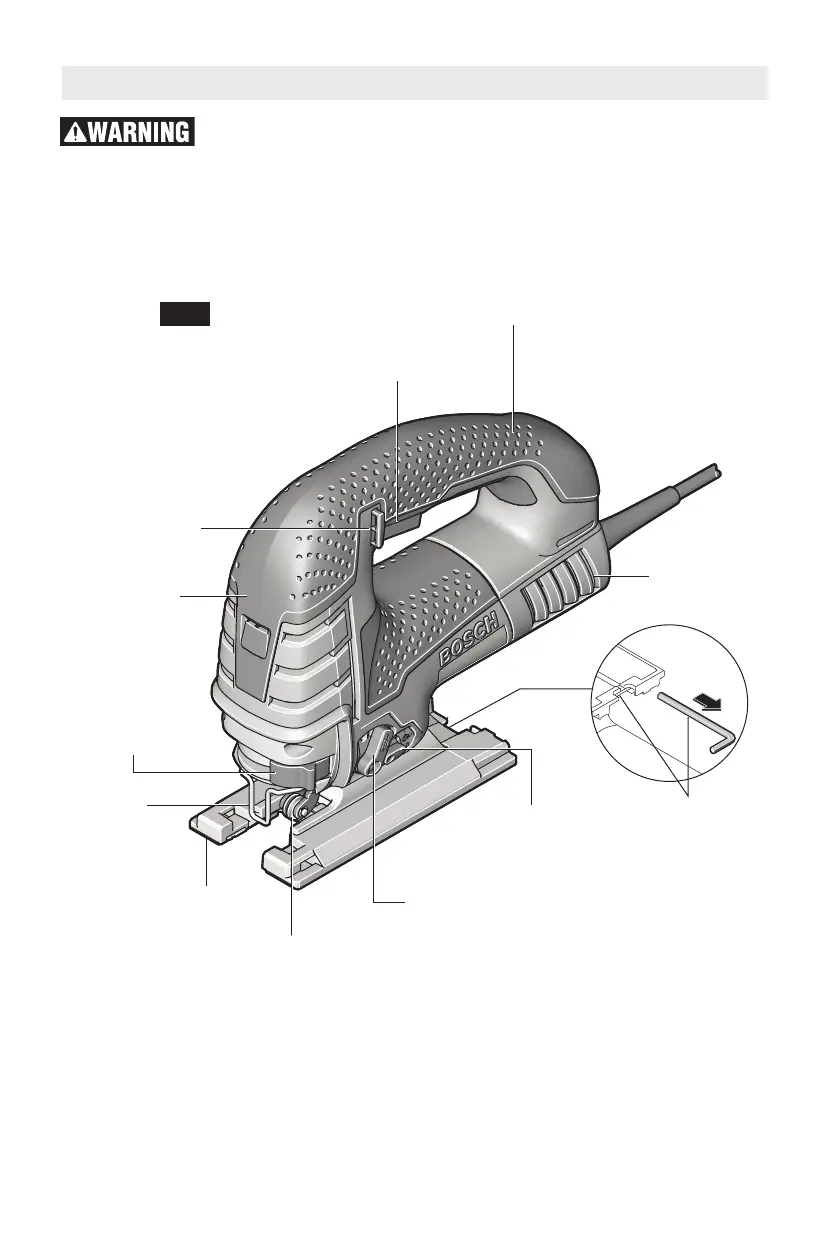

Fig. 1a
FINGER
GUARD
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
INSULATED
GRIPPING
SURFACES
Jig Saw JS470E
INSULATED
GRIPPING
SURFACES

Bosch JS470E Specifications

General

Strokes per Minute	500 - 3, 100 SPM
Voltage	120V
Amperage	7.0 Amps
Bevel Angle Range	0° to 45°
Cord Length	10 ft
Stroke Length	1 inch
