823_58300000113594_ara_en_u – 26.03.2015 Seite 7 von 50
4 COMPONENTS

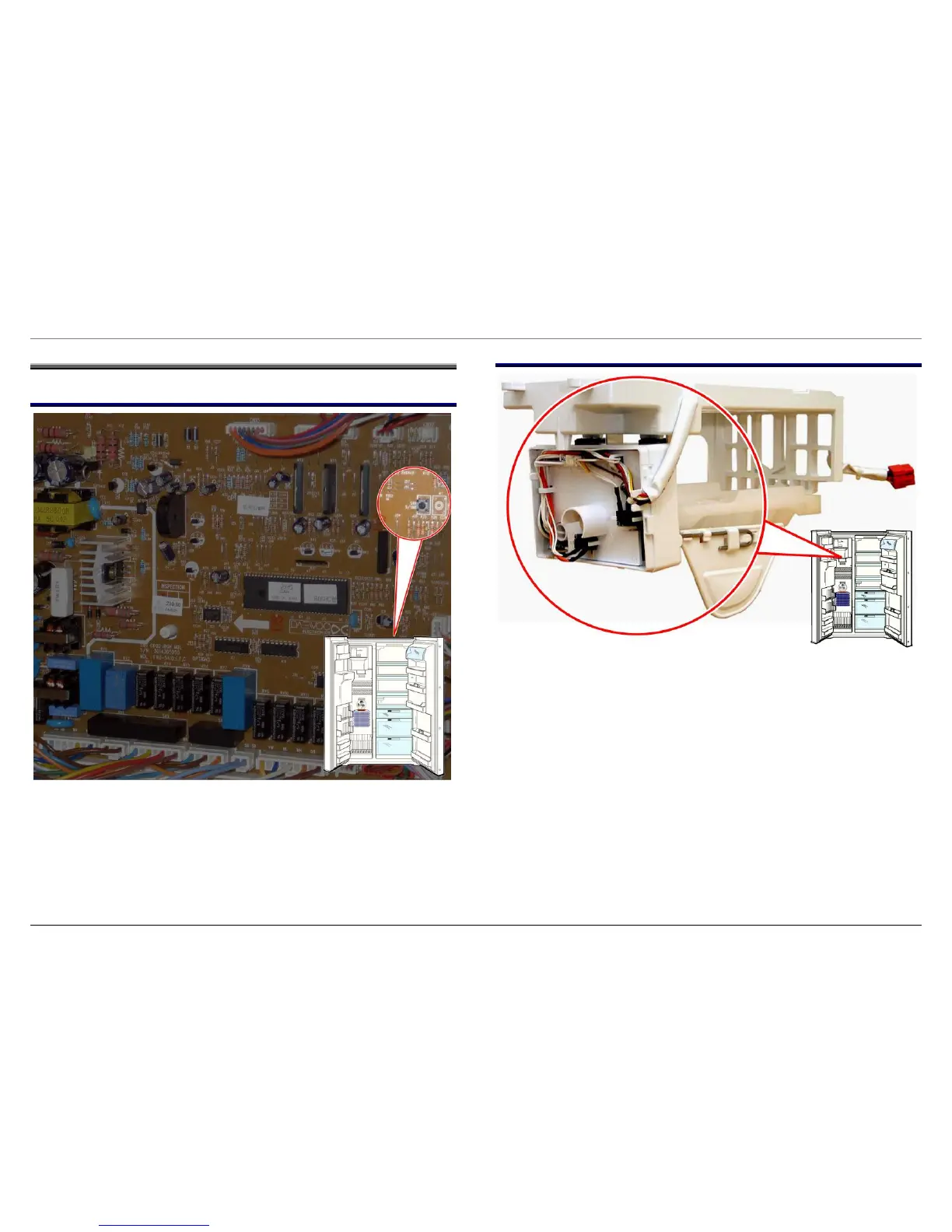

4.1 Control module
The control module is situated on the appliance.
The “Time shortening switch” reduces the run times.
e.g. compressor start-up lockout, fan switch-on delay, etc.
Briefly pressing the switch once reduces the time by 1 min.
Continuously pressing the switch reduces the time every two seconds
by 1 min. Maximum reduction time is 30 min.
4.2 Ice maker
The ice cube tray is swivelled by a motor. In doing so, the plastic tray
turns and the ice cubes fall out. The horizontal switch interrupts the
motor and the ice cube tray is moved back to the original position.
The ice cubes are ejected: after 130 min and when the ice sensor
is colder than –12.5 °C.
The ice sensor is situated under the ice cube tray.
The amount of ice presses the On / Off lever upwards and ice making
stops. When the amount of ice decreases, the lever drops and ice
making is restarted.
