2 Internal setting (LBB1938 only)

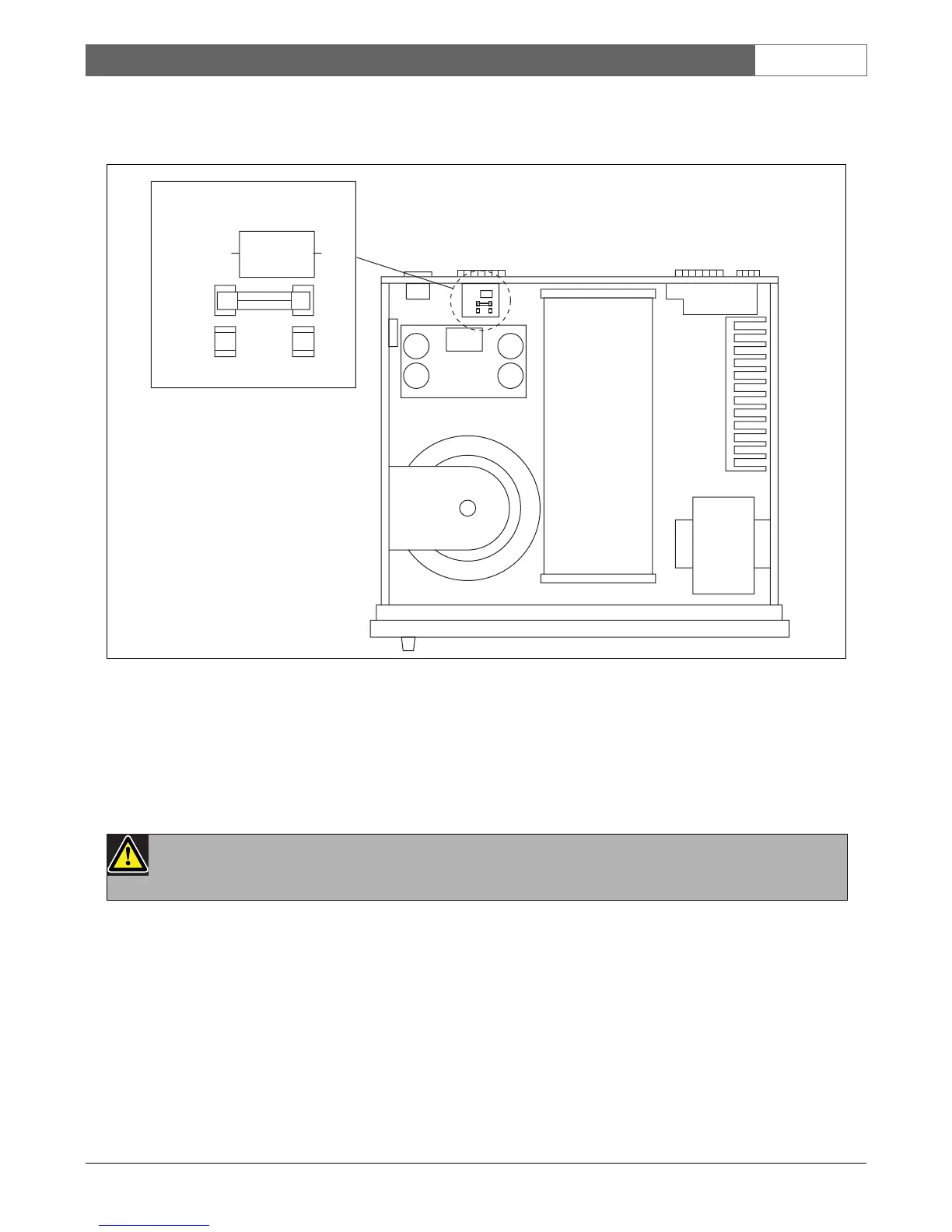

Figure 2.1
The output voltage of the priority controlled loudspeaker outputs can be set to 70 V or 100 V. To this end, a high
power fuse inside the unit is used as a voltage selector.
Insert the high power fuse into fuse holder F701 for 100 V selection (default setting), or into fuse holder F702 for 70
V selection. This selection does not affect the output voltage of the loudspeaker direct outputs.
Caution
Never insert two fuses into F701 and F702 simultaneously.
Internal setting (LBB1938 only)
F701 100V
LBB1938
70V
F702
