Logging Printer
EN | 15
LTC 8500 Series Full Capacity Video Switching Configuration

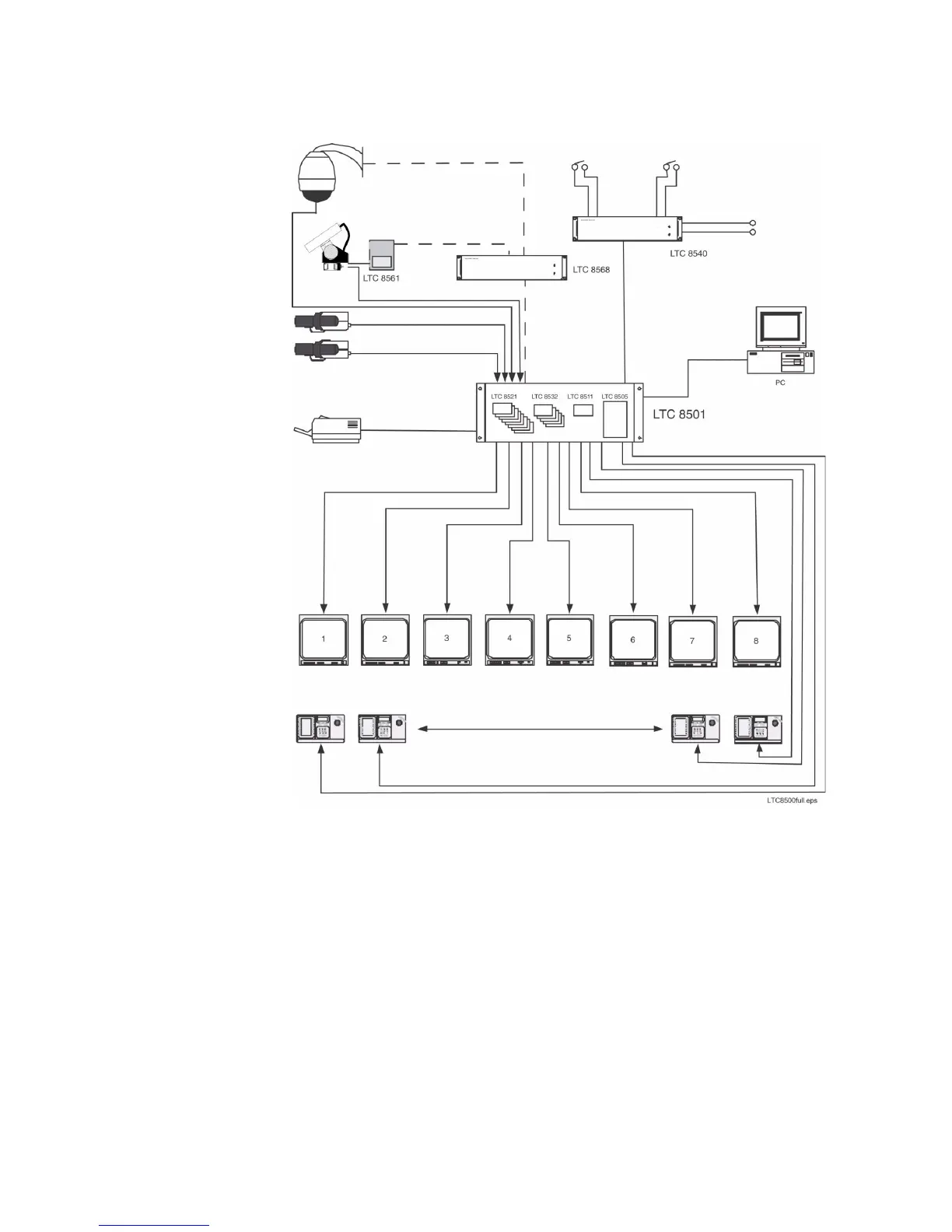

Figure 2: LTC 8500 Series Full Capacity Video Switching Configuration
Main CPU Bay
Signal
Distribution
Unit Supports
up to 32
Seperate
Outputs
Typical AutoDome
Camera
Optional LTC 8059/00
MCS or LTC 8850/00
GUI Software
Package can be
Run on a PC
Maximum of 8 Allegiant Keyboards, up
to 1.5 km (5000 ft) away using Optional
Remote Hookup Kit
Supports up to 8 Monitor Outputs
RS-232
Data
Receiver/Driver
Supports up to 64
Video Inputs
Alarm
Interface
Unit Sup-
ports up to
64 Separate
Alarm Inputs
8 Relay
Outputs
