EN | 68 Bosch Security Systems | December 13, 2005
19 Character ROM Tables for LTC 8500

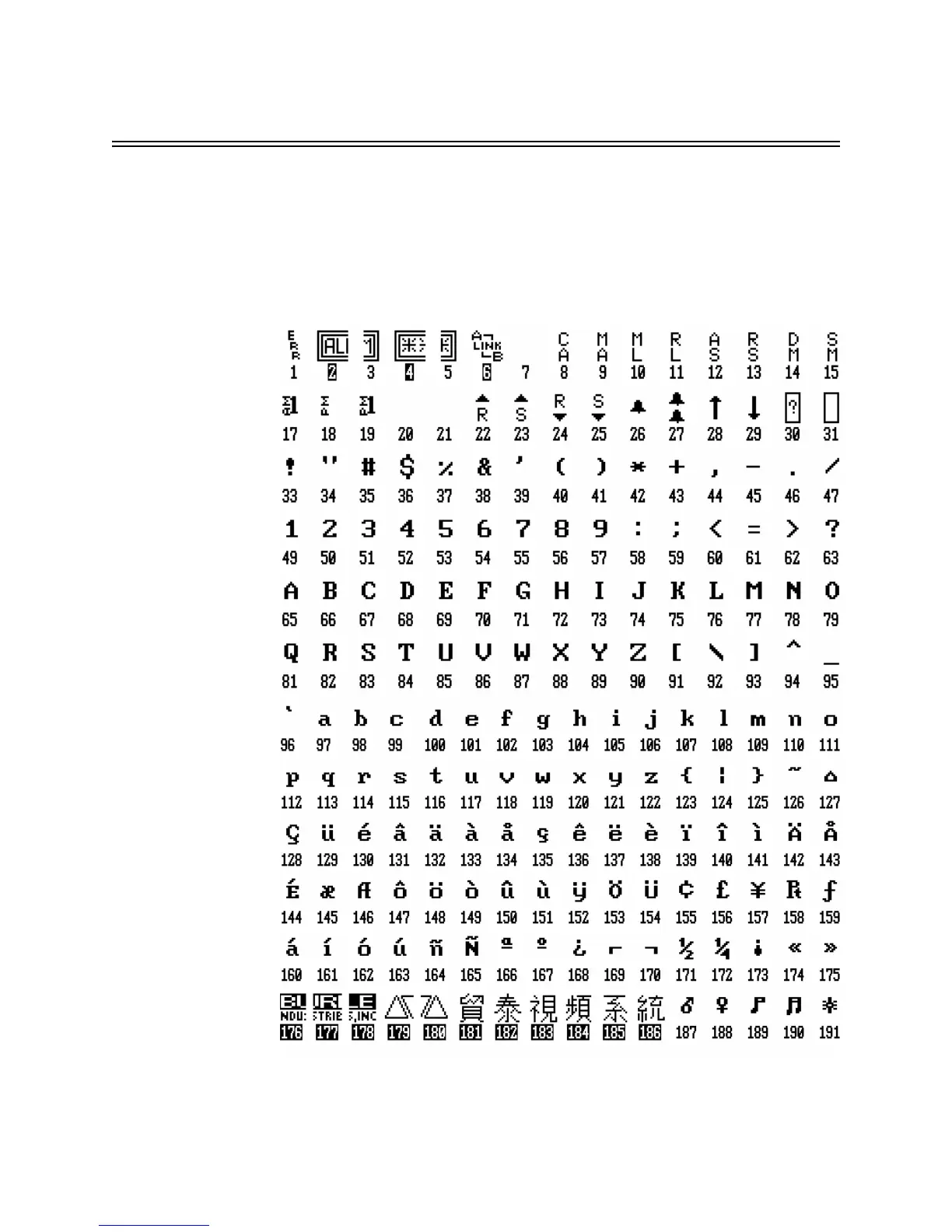

The characters used in generating the video monitor displays are shown in the table
on the following pages. Note that in some cases, a single character may be com-
prised of two (2) parts. Such characters must be entered so that the left half of the
character always begins in an odd numbered column of the display title. The code
numbers of these double-width characters are shown in black boxes in the table
below. Refer to the section of the operating instructions covering "User Functions"
for title programming procedures.
