24 | en LTC 8600 | LTC 8800 Series
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
LTC 8600 Series Video Switching System

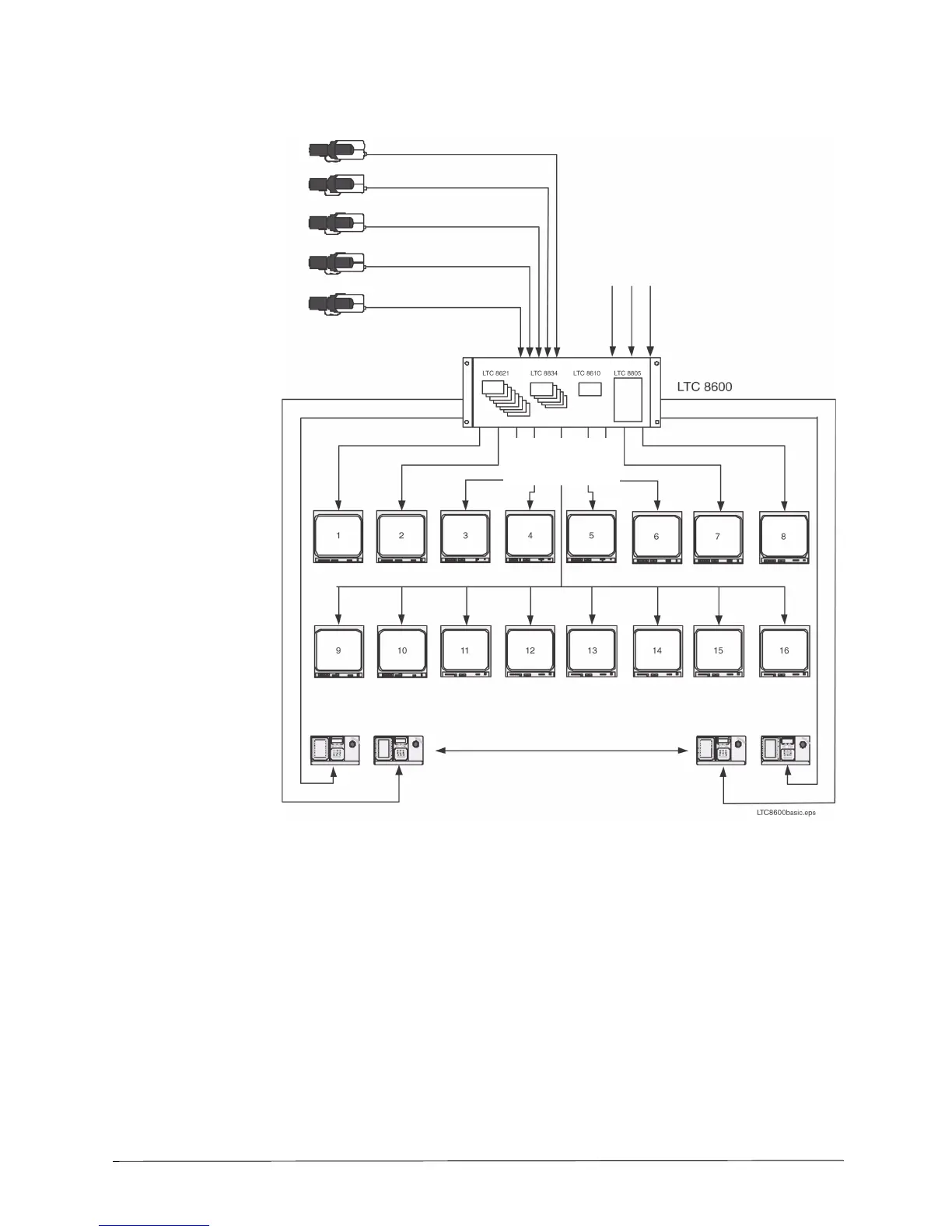

Figure 1: LTC 8600 Series Basic Video Switching Configuration
Maximum of 16 Allegiant Keyboards, up to 1.5 km
(5000 ft) away using Optional Remote Hookup Kit
Main CPU Bay
Supports up to 128
Video Inputs
Supports up to
16 Monitor Outputs
