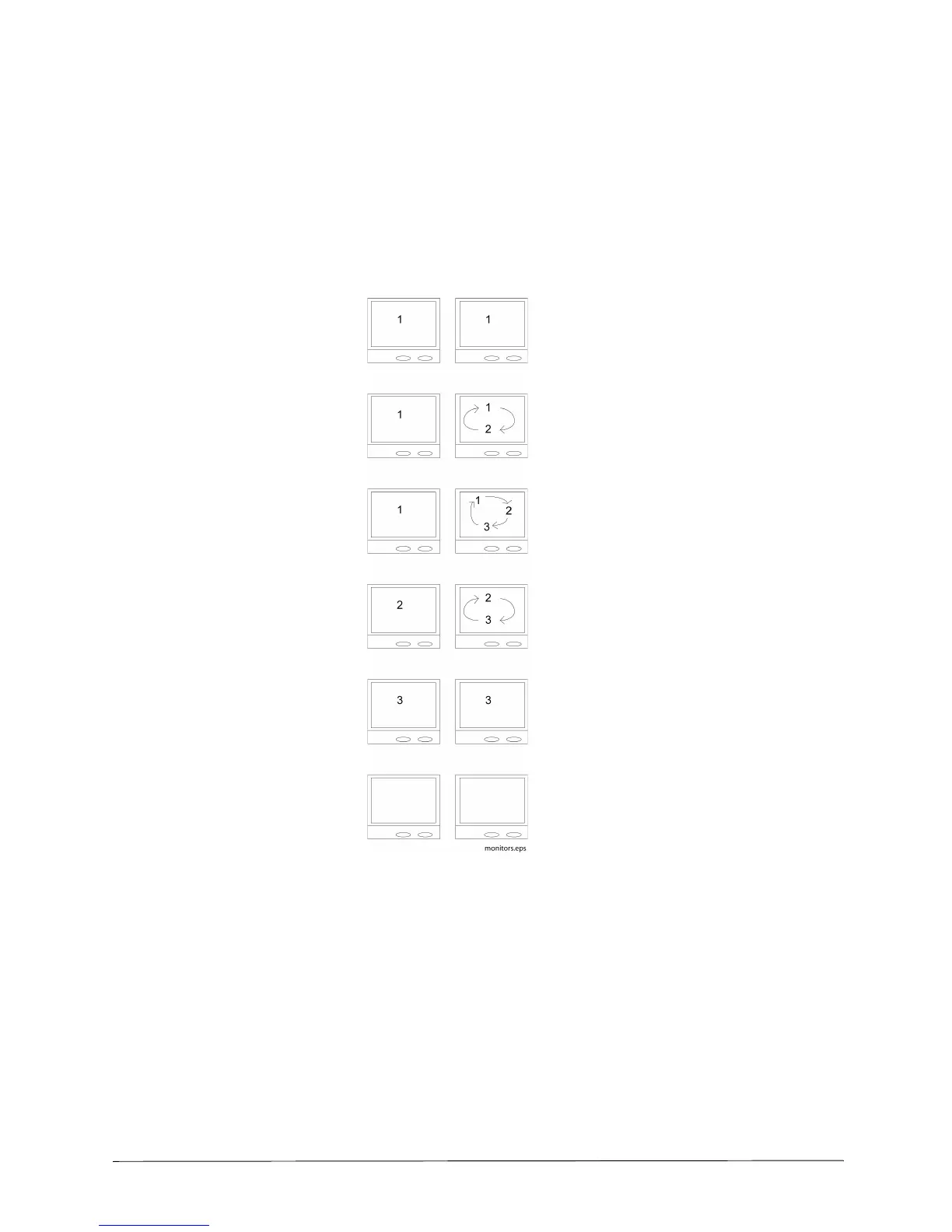

Sequence & Display Mode
In the Sequence & Display mode alarm response mode, a monitor pair is used to
display alarmed video.
Display
Monitor
Sequence
Monitor
Monitor Actions Keyboard
Operator
Action
1st Alarm
Occurs
D = Video associated with 1st
alarm is displayed.
NONE
S = Video associated with 1st
alarm is displayed.
D = Video associated with 1st
alarm is displayed.
NONE
2nd Alarm
Occurs
S = Video associated with 1st and
2nd alarm is displayed.
D = Video associated with 1st
alarm is displayed.
NONE
3rd Alarm
Occurs
S = Video associated with 1st, 2nd
and 3rd alarm is displayed.
D = 1st alarm video is removed.
2nd alarm video is now displayed.
1st Alarm
Acknowledged
S = Video associated with 2nd and
3rd alarms continue to sequence.
D = 2nd alarm video is removed.
3rd alarm video is now displayed.
2nd Alarm
Acknowledged
S = Only video associated with
2nd alarm remains.
Since all alarms have been
acknowledged, both monitors
return to normal operator control.
3rd Alarm
Acknowledged
