Error handling instructions for Split outdoor unit
Split ODU – 6 720 817 722 (2015/06)
15
ODU Split 4, 6, 8

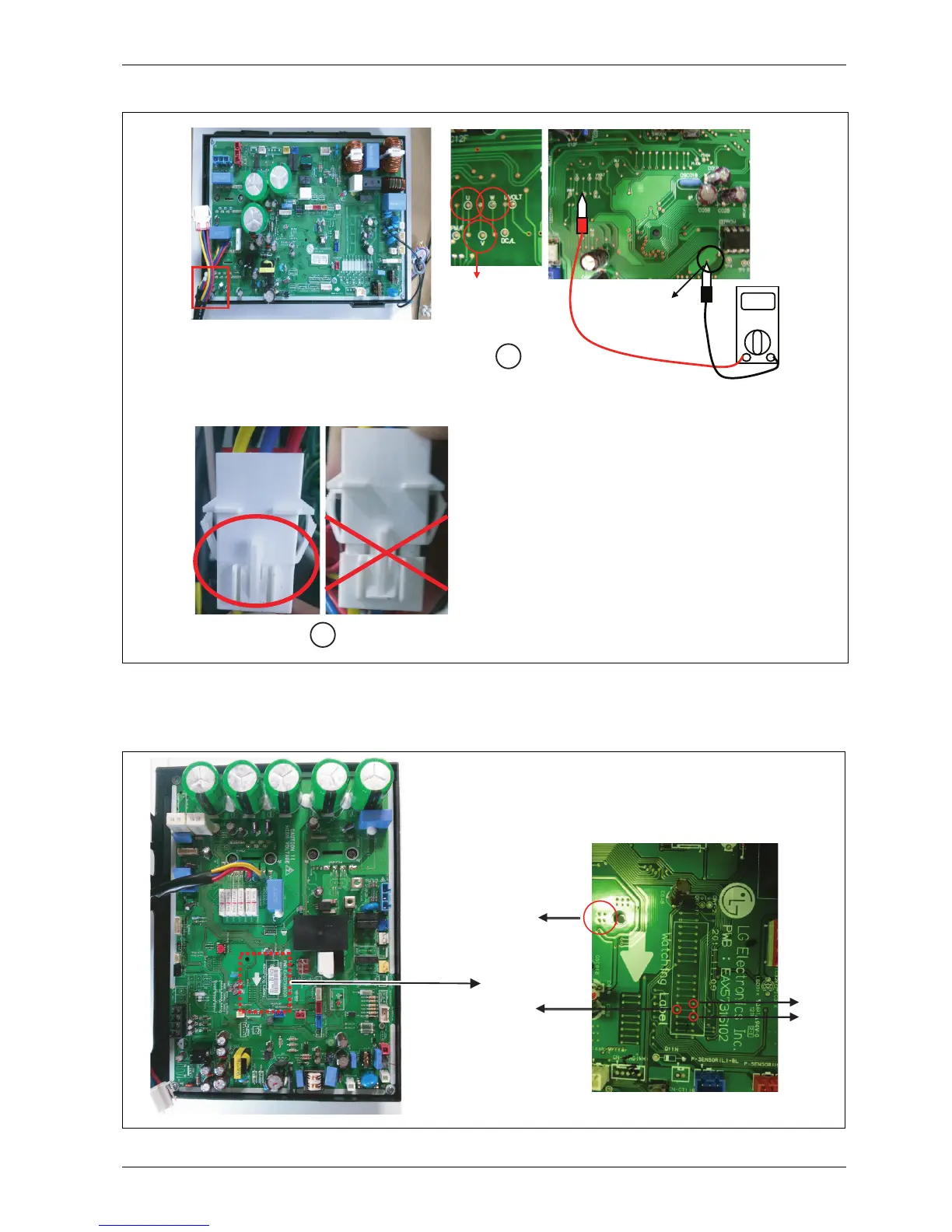

Fig. 14 ODU Split 4, 6, 8
[1] CT sensing check point
[2] WVC connector check
ODU Split 11s, 13s, 15s
Fig. 15 ODU Split 11s, 13s, 15s
U, V, W
GND
Vdc
U V W
6 720 817 722-12.1I
1
2
U
W
V
GND
6 720 817 722-13.1I
