Functional Description and Specifications
Disconnect battery pack from tool before making any assembly, ad-
justments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
Cordless Impact Driver

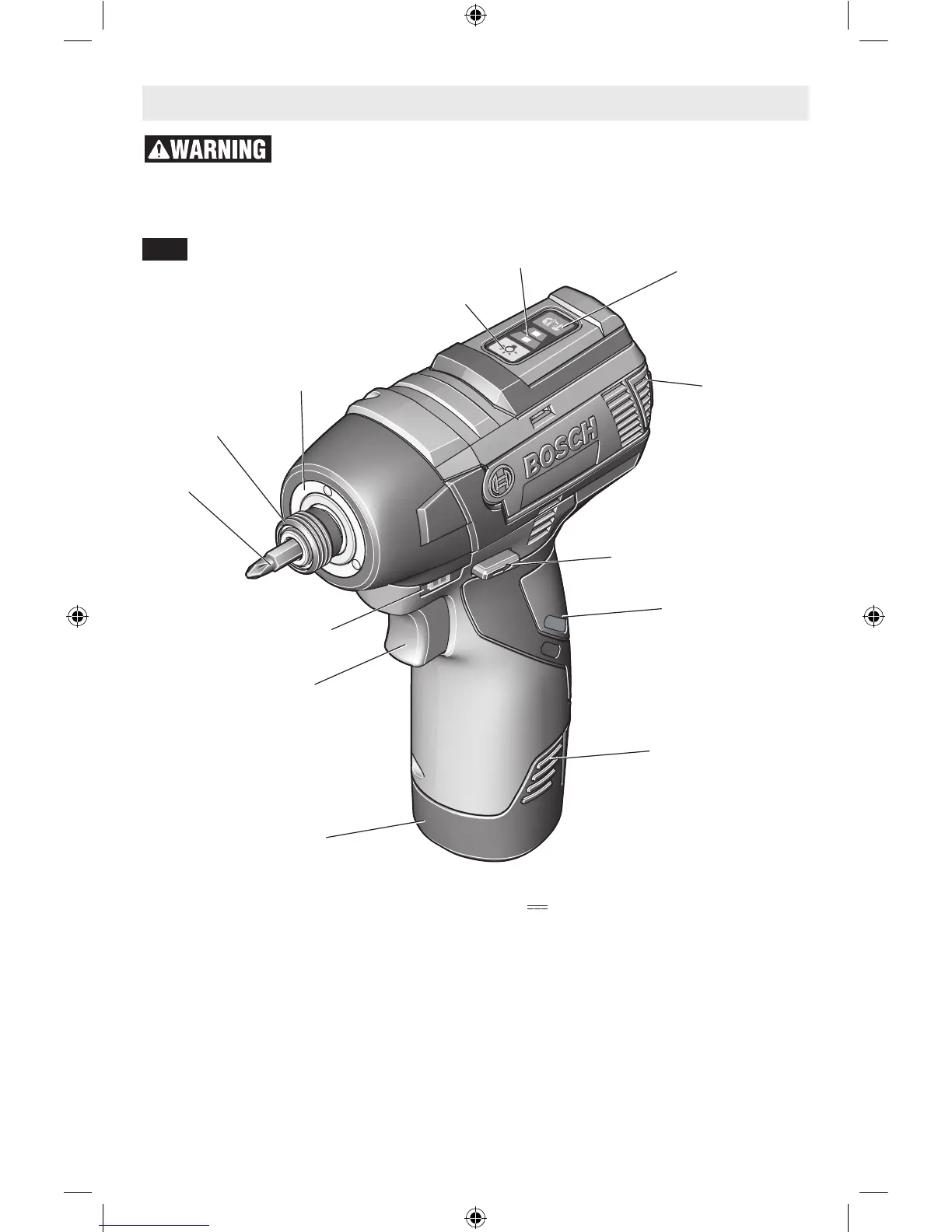

Fig. 1
VENTILATION
OPENINGS
VARIABLE SPEED
CONTROL INDICATOR
BUILT IN
WORK LIGHT
BATTERY CHARGE
STATUS INDICATOR
LIGHTS
VARIABLE SPEED
TRIGGER SWITCH
BATTERY PACK
BATTERY
RELEASE
TABS
RUBBERIZED
GRIP
FORWARD/REVERSING
LEVER & TRIGGER LOCK
WORK LIGHT ON/
OFF BUTTON
LOCKING
SLEEVE
BIT
VARIABLE SPEED
SELECTOR
Model number PS42
Voltage rating 10.8V/12V
MAX
No load speed n
0
0-1,200 / 0-2,600/min
Impact rate 0-3,100/min
Maximum Capacities:
Chuck size 1/4" Hex-shank with power groove
Battery Packs/Chargers
Please refer to the Charger Manual included with your tool.
NOTE: For tool specifications refer to the nameplate on your tool.
