Functional Description and Specifications
Disconnect battery pack from tool before making any assembly, ad-
justments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
Cordless Impact Wrench

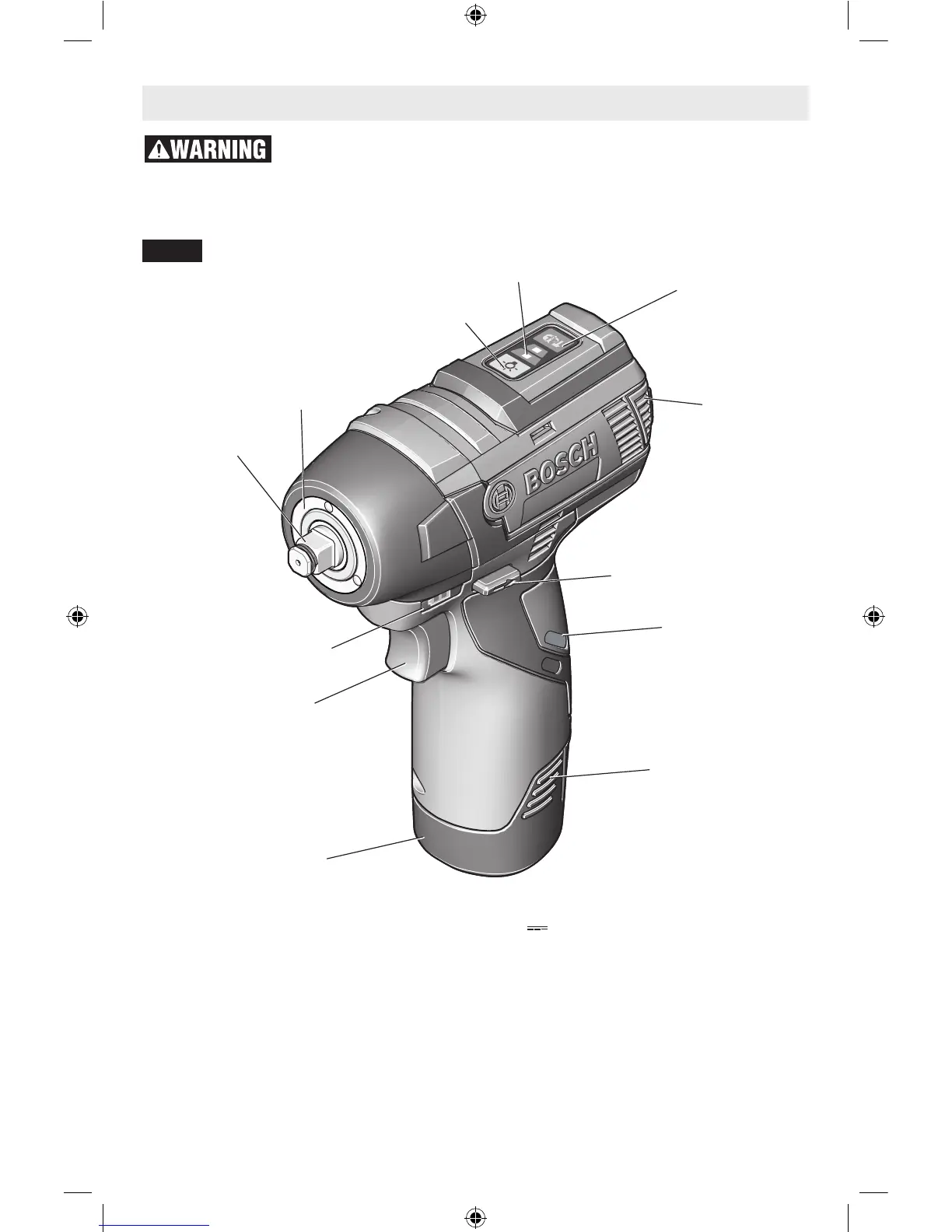

Fig. 1a
VENTILATION
OPENINGS
VARIABLE SPEED
CONTROL INDICATOR
BUILT IN
WORK LIGHT
BATTERY CHARGE
STATUS INDICATOR
LIGHTS
VARIABLE SPEED
TRIGGER SWITCH
BATTERY PACK
BATTERY
RELEASE
TABS
RUBBERIZED
GRIP
FORWARD/REVERSING
LEVER & TRIGGER LOCK
WORK LIGHT ON/
OFF BUTTON
OUTPUT
DRIVE
VARIABLE SPEED
SELECTOR
Model number PS82
Voltage rating 10.8V/12V
MAX
No load speed n
0
0-1,200 / 0-2,600/min
Impact rate 0-3,100/min
Maximum Capacities:
Output drive 3/8" Square drive
Battery Packs/Chargers
Please refer to the Charger Manual included with your tool.
NOTE: For tool specifications refer to the nameplate on your tool.
