CLIMATE 5000 RAC SINGLE SPLIT (R32) – 6720894076 (2019/08) 35
Maintenance and Disassembly

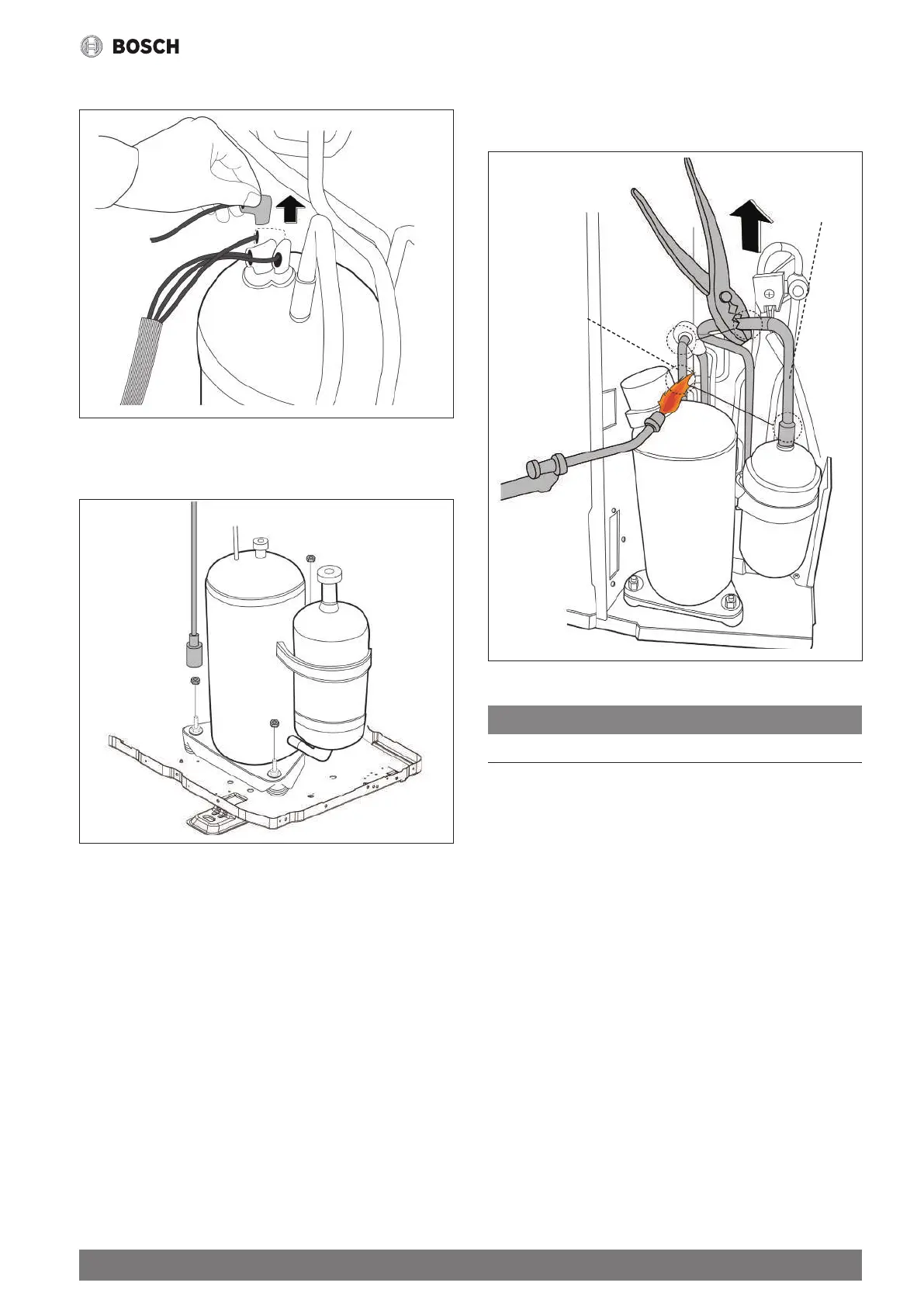

2) Disconnect the connectors (see fig.61).
Fig. 61.
3) Remove the hex nuts and washers securing the compressor,
located on the bottom plate (see fig.62).
Fig. 62.
4) Heat up the brazed parts and then remove the the discharge pipe
and the suction pipe (see fig.63).
5) Lift the compressor from the base pan assembly with pliers.
Discharge Pipe
Suction Pipe
Fig. 63.
NOTICE:
This section is for reference only. Actual unit appearance may vary.
