Installation 35/48
RE 29391-B/05.2021; 4WRPD(H), 4WRPQ(H), 4WRPF(H), 4WRLD, 4WRLF, 4WRLQ, 5WRPF10, 5WRPQ10, Bosch Rexroth AG
NOTICE
Missing seals and plugs!
Loss of protection class IP65 and risk of short-circuit. Liquids and foreign
particles may penetrate and damage the valve.
Before assembly, ensure that all seals and caps of the plug-in connections are
tight.
Plugging or unplugging live connectors!
The valve might be destroyed.
Switch off the power supply to the relevant system part before mounting the
valve or when connecting or pulling connectors.
Ensure maintenance-friendly installation, i.e. simple access to the connection
lines. Free access to the connection sides must be guaranteed.
Before installation note down the information on the nameplate. If nameplates
are no longer visible or legible after installation you will have the data at hand
at any time.
Mount M12 connectors according to the instructions (see mounting instructions
under “Caution” on page 34) and fix the associated cables as shown below:

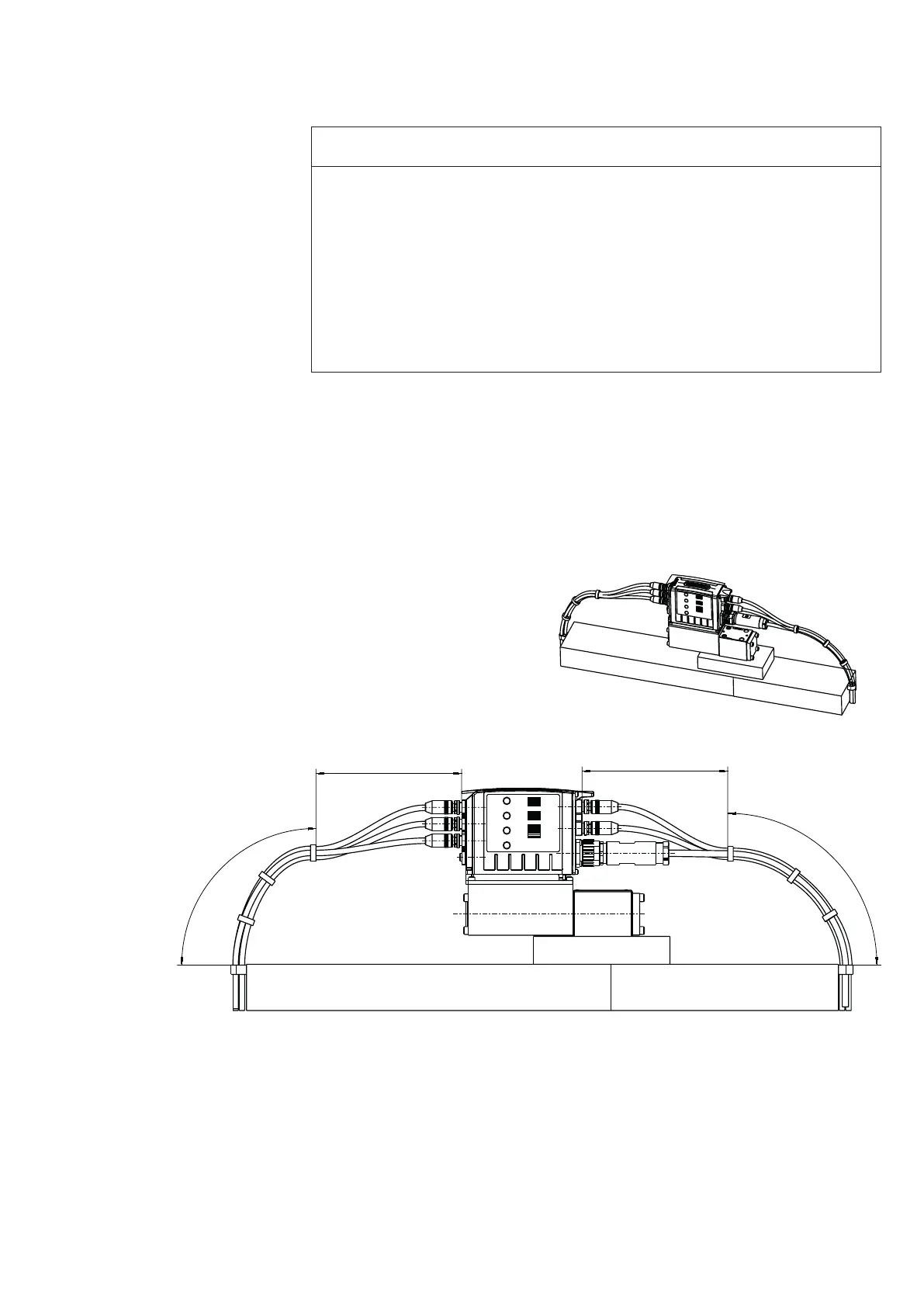

Fig. 9: Mounting and fixing of M12 connectors and cables
Mounting of M12
connectors
200 - 300 mm
200 - 300 mm
200
200 mm
200 mm
