Bosch Rexroth SB23 - Control Block Segment Disassembly; Subplate Disassembly

Assembly description 7/16
RE 66133-10-R/05.2013, SB23, SB33, EHR23, EHR33, Bosch Rexroth AG

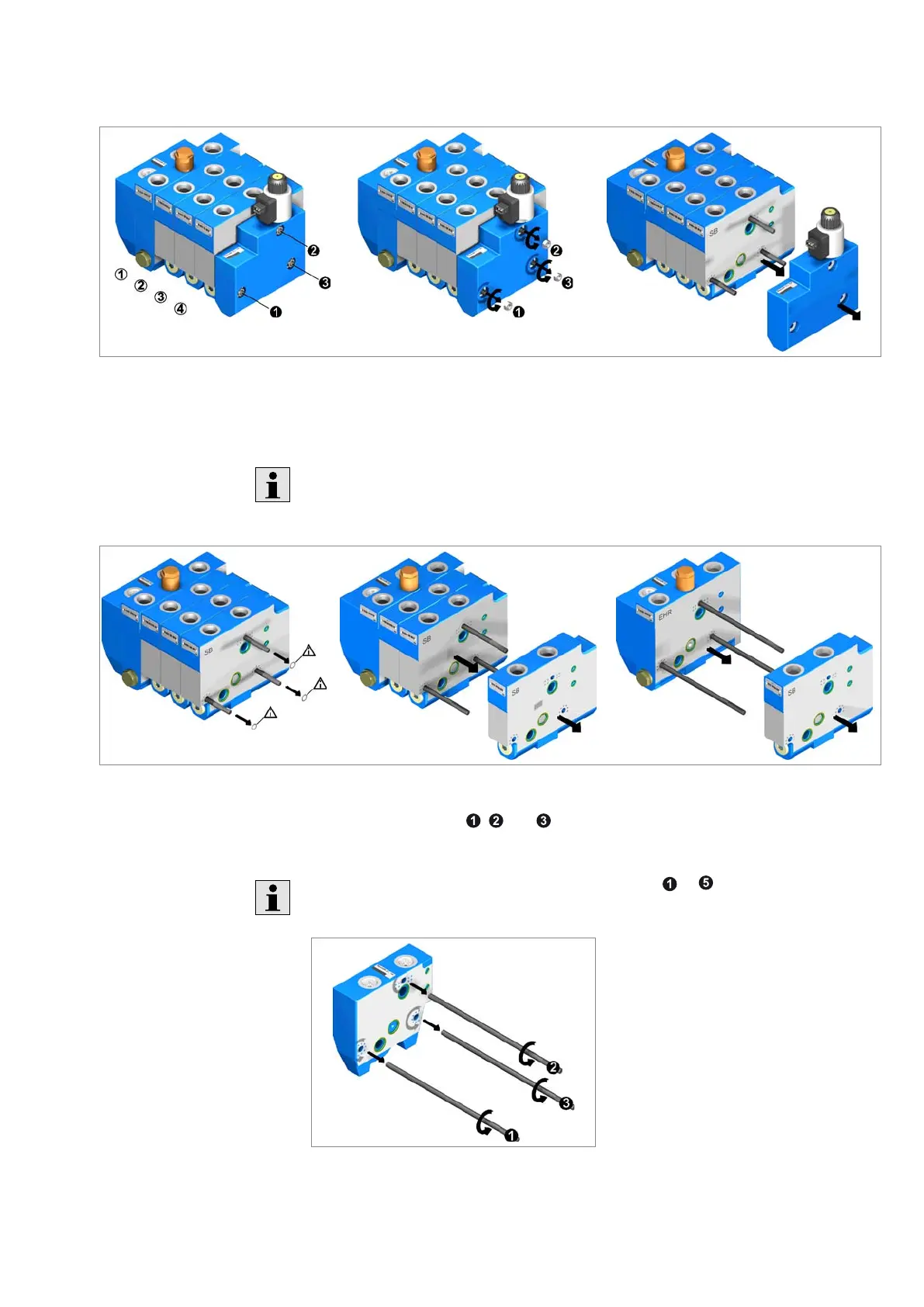

Fig. 1: End plate disassembly
1. Remove spacers that might be available from the tie rod screws.
The spacers are only used in case of repair. See also chapter5.3.2 on page9.
2. Pull off the control block segments via the tie rods.
Fig. 2: Control block segment disassembly
1. Loosen the tie rods , and by turning them counterclockwise and screw
them out of the subplate.
Similarly, for valves with five tie rods the tie rods
to .
Fig. 3: Subplate disassembly
Control block segment
disassembly
Subplate disassembly
