B A

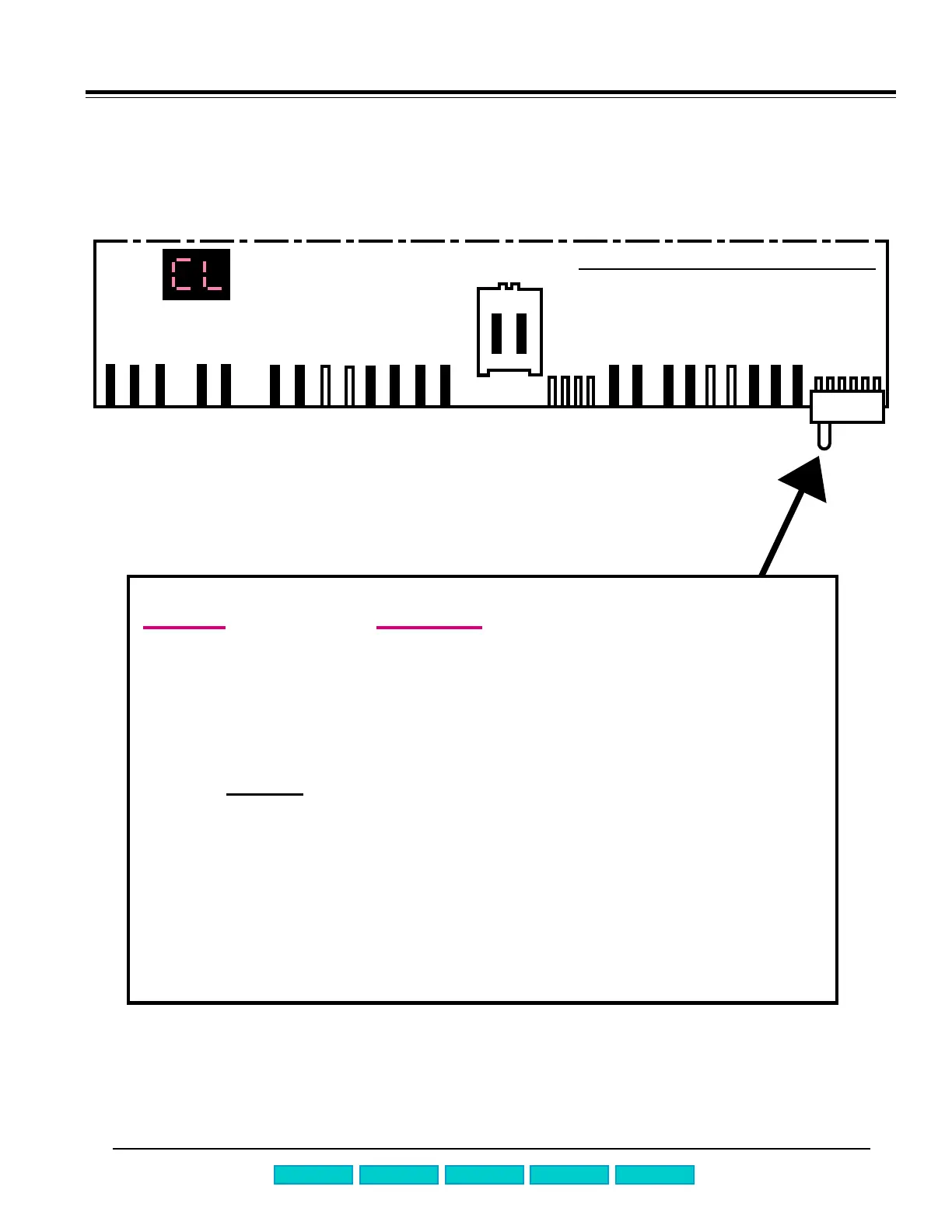

Installing jumper for control modules for
SHU/I 53 series dishwashers
NOTE: Remove existing jumper from old SHU/I 53
control module and install onto new module.
This part # 266746 control module is used for all SHU/I 53 series &
SHU/I 68 series dishwashers. SHU/I 53 models use a jumper (part #
167782), while SHU/I 68 models dont. Since each control module is
shipped without a jumper, existing jumper must be used (or jumper #
167782 must be ordered separately).
This applies to SHU/I 5302, 5304, 5305, 5306, 5312, 5314, 5315 &
5316 models.
Please note this # 266746 control module replaced the module # 263832
referred to in the 1st Edition/Revision 0 of these instructions.
Control Module Part # 266746
2
5
3
32 2
4
4327
8
56
1
1 1
76
1
1
2
21
1st Edition/Revision 1 Tuesday, August 8, 2000
