104
IX.
IX.
Wiring Diagrams/Tech Sheet
Wiring Diagrams/Tech Sheet

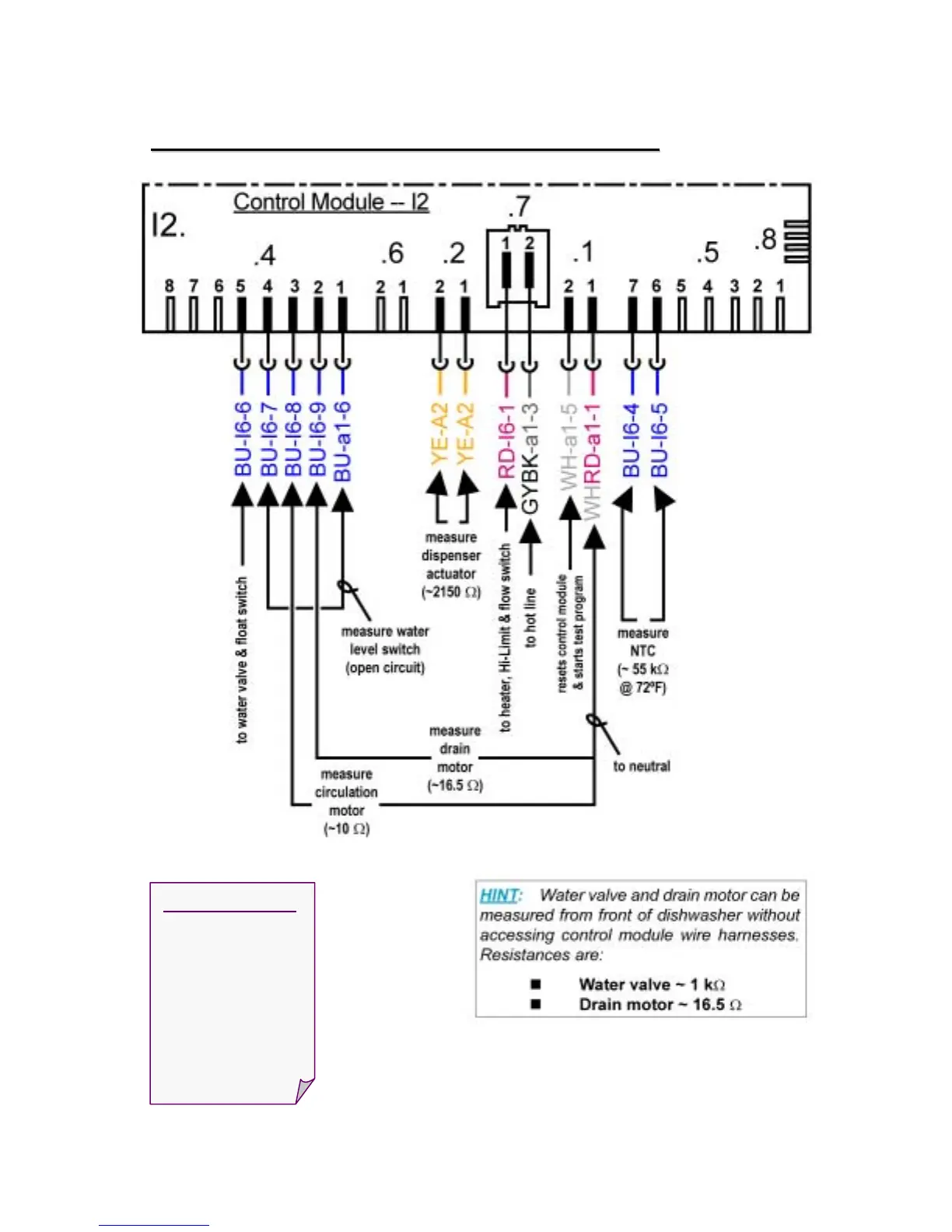

Measuring SHU33/432x Resistances @ Modules
Measuring SHU33/432x Resistances @ Modules
Wire color codes:
BK = Black
BN = Brown
BU = Blue
GY = Gray
RD = Red
WH = White
YE = Yellow
