Misaligned Latches
Misaligned Latches
Occasionally integrated dishwasher door latches can be
misaligned, causing doors to not close properly or
dishwashers to run with doors open (when latches don’t
reset). Follow these steps to realign door latches.
Fascia frame
(console)
Fascia frame (console)

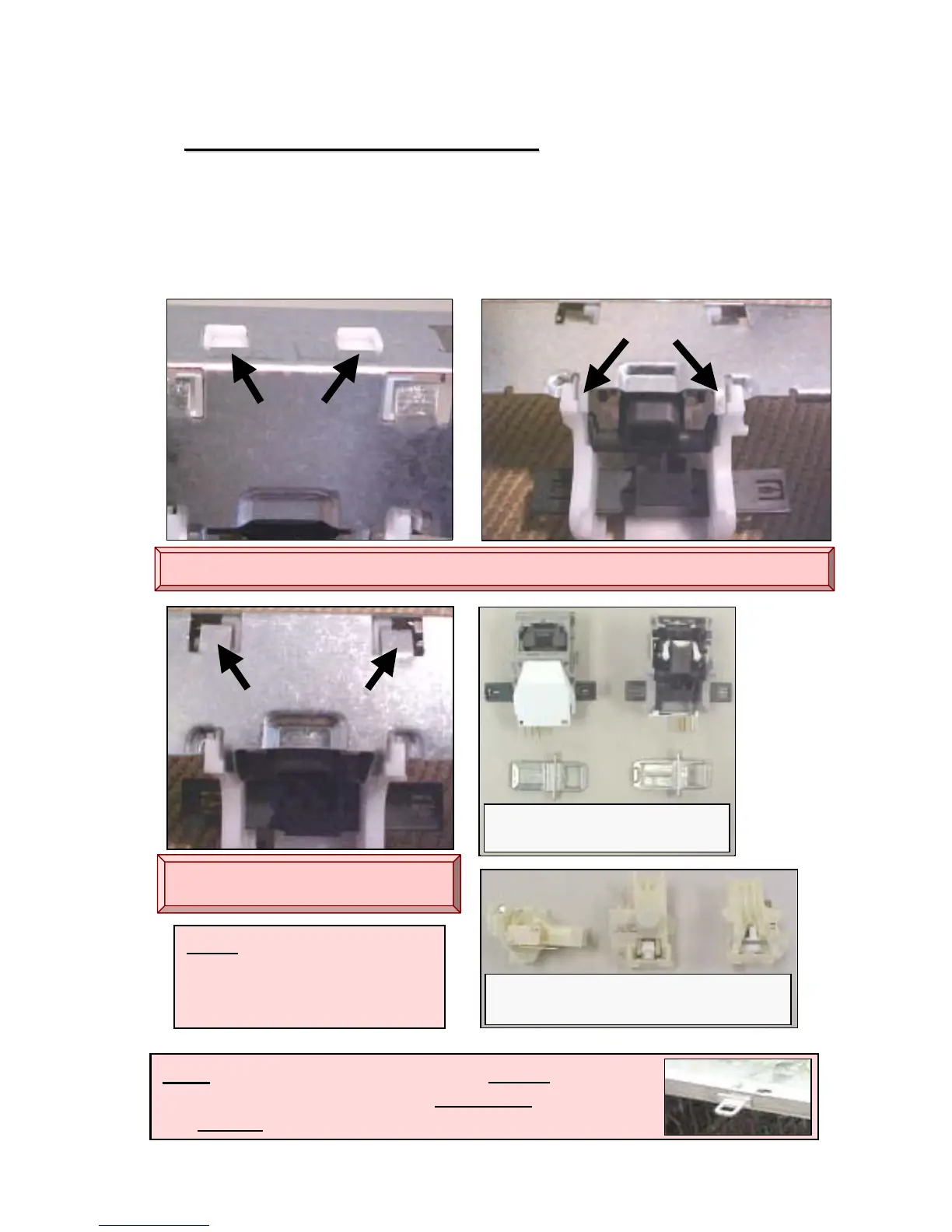

Insert latch tabs into frame Bend tabs down next to latch
Fascia frame
(console)
419828 door latch with
microswitch
Bend tabs down into latch
187184 ball bearing door latch
with microswitch
NOTE: Integrated
dishwashers include the
following models: SHV, SHX,
SHY & SHU88/99/995x.
HINT: Make sure latch tabs are seated, all fascia
frame (console) tabs are bent completely
, door strikes
are aligned
with latches and door latches get reset.
