Component Access/Replacement
Component Access/Replacement
Dispensers
Dispensers
–
–
Removal & Installation (1)
Removal & Installation (1)
To remove/install dispensers:
Remove outer door, remove fascia panel & disconnect wire harness
from fascia panel.
Disconnect wire harness from above dispenser, then remove wires
to wax motor & reed switch.
Disconnect condensation tube (for older models with condensation
tubes in doors).
Bend retainer tabs, the push dispenser inward toward tank. Protect
hand with towel as edges are sharp.
Replace from inside of tank -- position O-ring seal and bend tabs to
secure. When replacing dispensers, lubricate O-rings with rinse-aid
& support inner doors to avoid damage if O-rings stick.

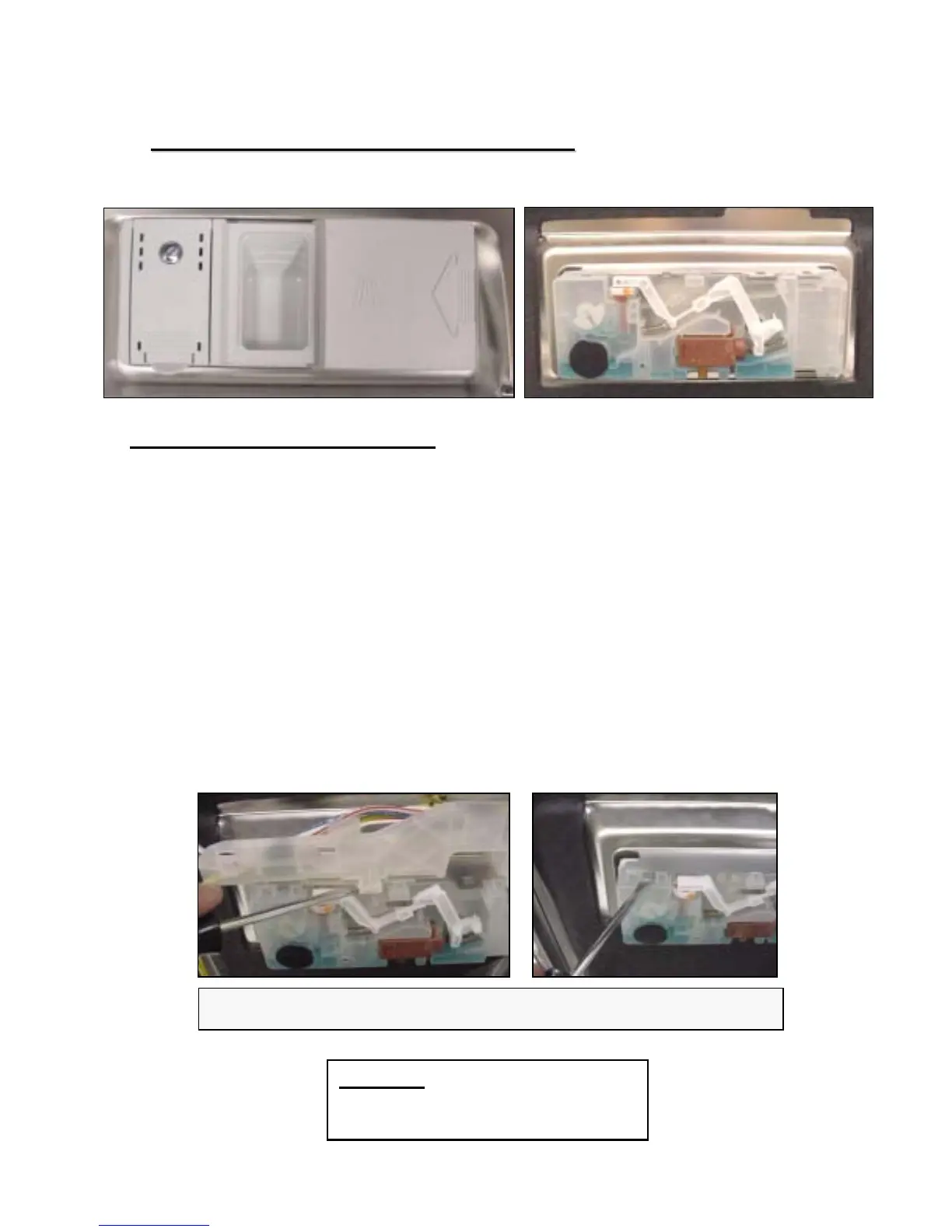

Disconnecting wire harness Bending retainer tabs
CAUTION: Inner door edges are
sharp! Cover door edges and
remove dispenser carefully.
