43
VI.
VI.
Component Access/Replacement
Component Access/Replacement
Control Modules
Control Modules
–
–
Apexx
Apexx

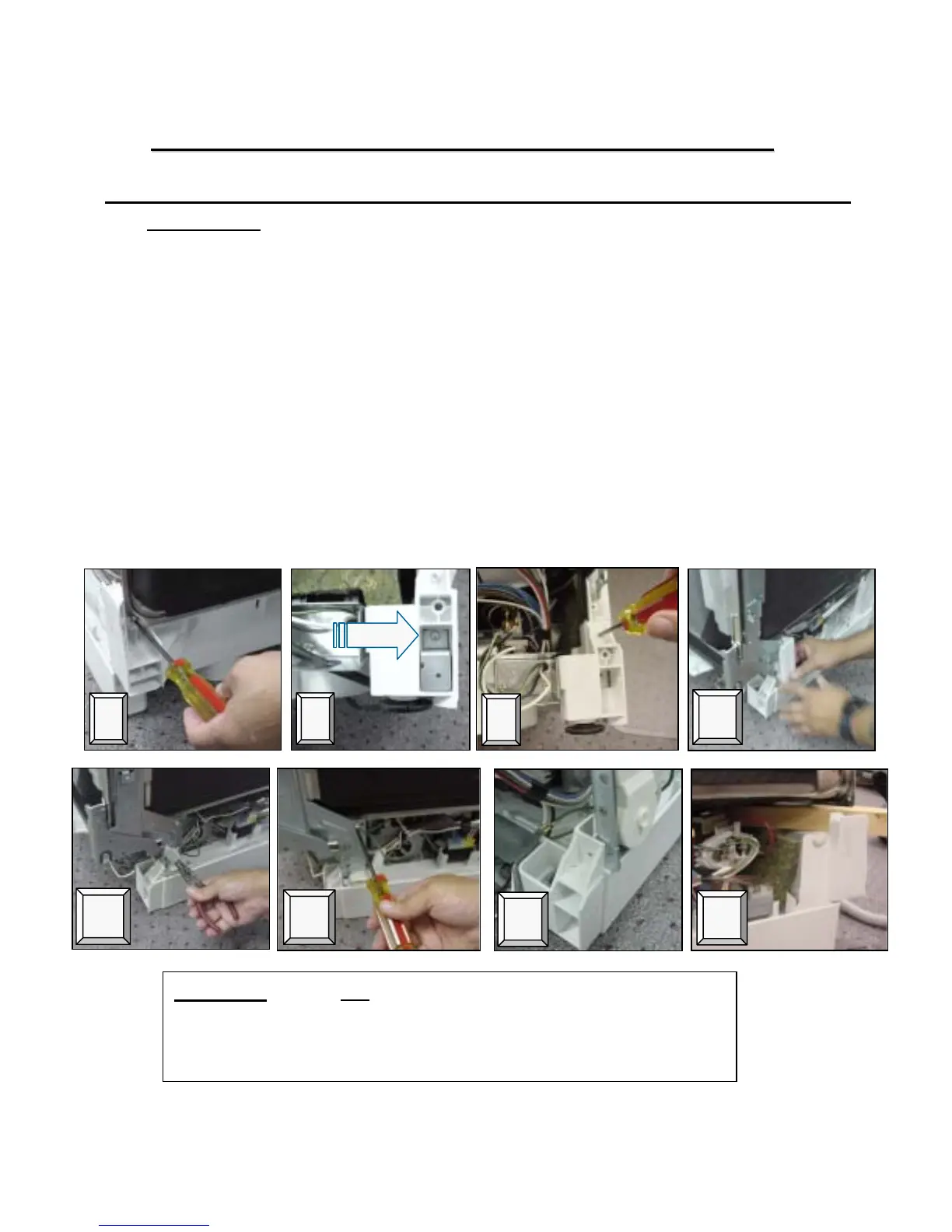

Control Module Disassembly (3)
Control Module Disassembly (3)
To raise right side of tank for Apexx module access (where
necessary):
Remove one T-20 Torx screw from both rear corners holding tank to
base (1) -- removing screw from both sides allows tank to be blocked
upward.
Remove right toe kick bracket by removing T-20 Torx screw (2).
Remove T-20 Torx screws from front right bottom corner holding tank to
base (3).
Remove right hinge cover (4a), release right door tension cord from
hinge (4b) & remove ground wire (4c).
Raise and block up tank as shown with strut onto base (5a), sliding a
piece of wood or other solid material between the tank and base to keep
tank from falling back onto base (5b).
Screw
21
4a
5b
5a
3
4c
4b
CAUTION: Its not recommended to turn dishwashers
upside-down for tank access. When dishwashers are turned
upside-down, water can flow into the diaphragm of the water
fill assembly and cause water to not fill properly.
