42
VI.
VI.
Component Access/Replacement
Component Access/Replacement
Control Modules
Control Modules
–
–
Apexx
Apexx
Control Module Disassembly (2)
Control Module Disassembly (2)

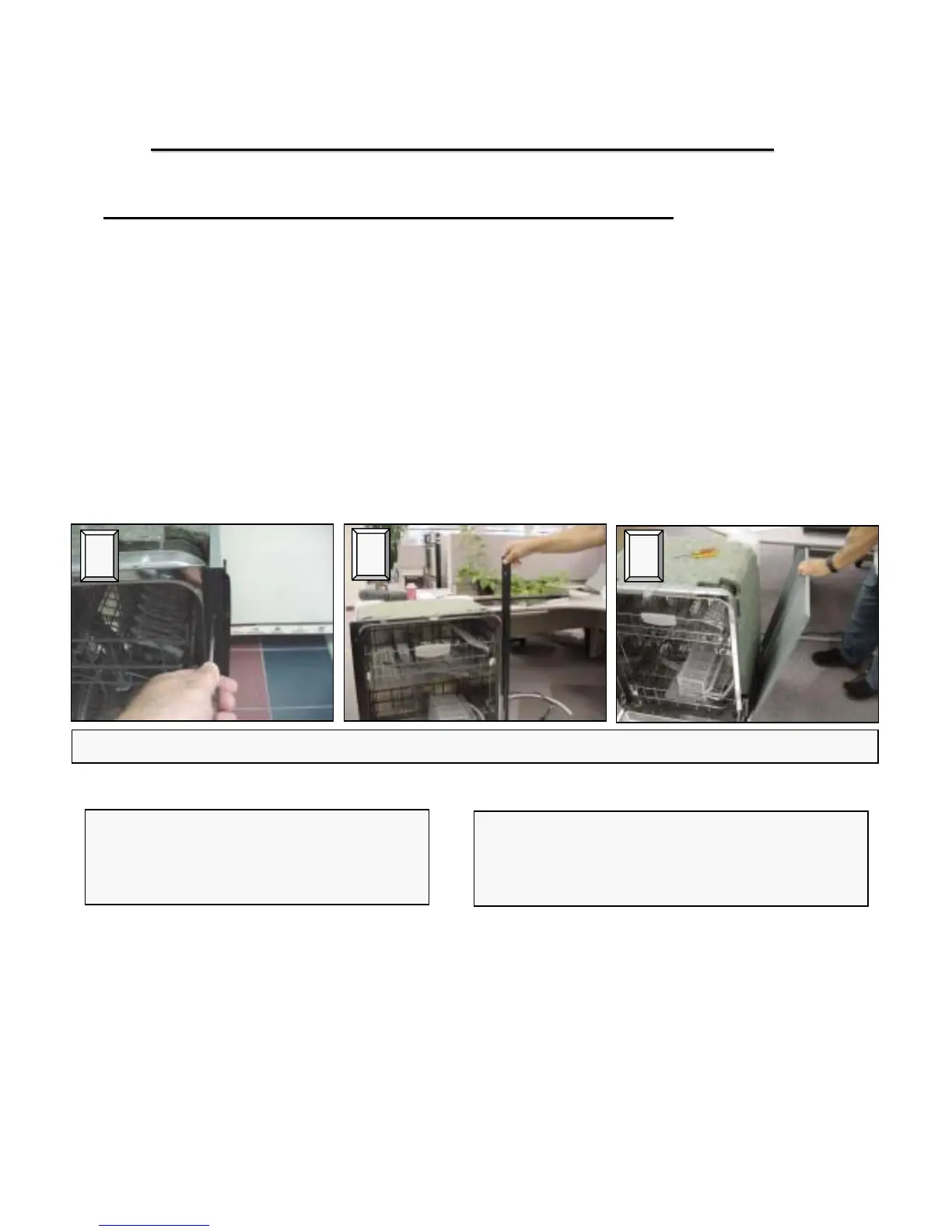

To remove right & left side panels (where necessary):
Remove two T-20 Torx side panel screws through holes in left &
right trim strips (1).
Carefully slide trim strips up and out of dishwasher (2). If side
panels are removed carefully to avoid damaging trim strips, then
trim strips don’t need to be removed.
Lift side panels up and out from dishwasher (3). Panels can be
removed with trim strips. Although removing the left side panel
isn’t necessary for access, it does allow the right side of the tank
to be blocked upward.
1
2
3
Removing trim strip screws Removing trim strips Removing side panels
HINT: Apexx control modules cannot
be checked or have resistances
measured from the front of
dishwashers.
HINT: It may be possible to reach behind
modules without blocking up tanks. If not,
then follow these instructions to block up
tanks.
To Next Page
