10

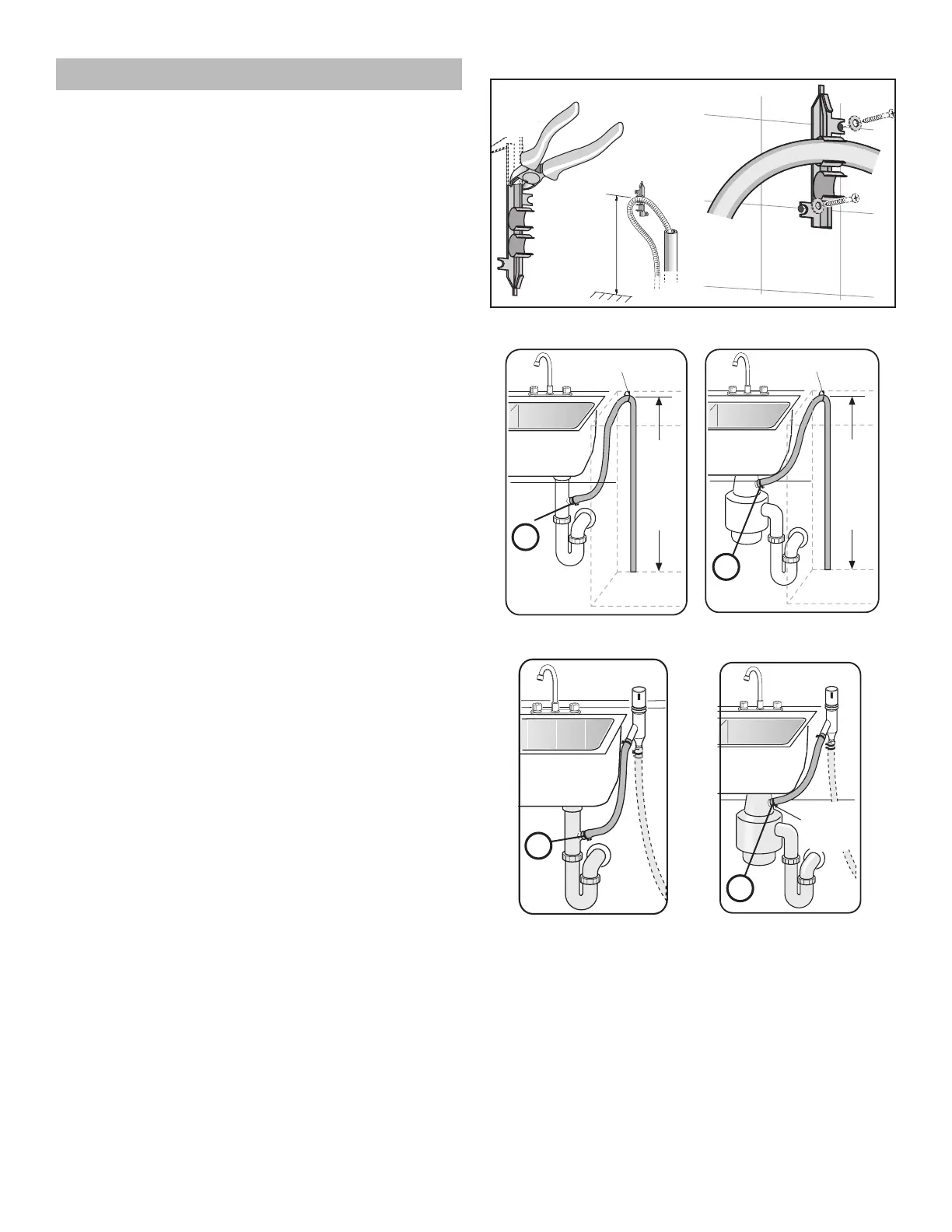

The dishwasher drain hose may be connected to the house-
hold or eld drain plumbing in one of four ways. You will need
a 1¼" diameter hole in order to pass the drain hose through
the cabinet.
1 Directly under the sink dishwasher drain connection, as
shown in Figure 9.
2 Directly to a disposer dishwasher drain connection, as
shown in Figure 10.
3 To the under sink dishwasher drain connection through
an air gap, as shown in Figure 11.
4 To a disposer dishwasher drain connection through an air
gap, as shown on Figure 12.
IMPORTANT NOTES:
· If local ordinance require an air gap, install it according
to the manufacturer’s instructions.
· If the dishwasher drain hose is to be connected to a
disposer dishwasher drain connection, remove the plug
from the disposer’s dishwasher drain connection.
· The dishwasher drain hose must have one place along
its length that is securely attached 20″ (508 mm) above
the cabinet oor.
· The drain hose length can be extended if necessary. The
maximum length of the drain hose, including the hose
leading to the air gap, is 150″ (3800 mm).
Figure 11 Figure 12
Figure 9
Figure 8
Non-Metallic Tie
MIN.
20"
MIN.
20"
Non-Metallic Tie
Figure 10
Remove
plug
Drain Connections
max 43” (1100mm)
G
G
G
G
min 20″ (508mm)
max 43″ (1100mm)
min 20″ (508mm)
max 43″ (1100mm)
10

Bosch SHX78B75UC Specifications

General

Brand	Bosch
Model	SHX78B75UC
Category	Dishwasher
Type	Built-in
Capacity	16 Place Settings
Noise Level	42 dBA
Energy Star Certified	Yes
Number of Wash Cycles	6
Tub Material	Stainless Steel
Series	800 Series
Concealed Heating Element	Yes
Number of Options	6
Water Filtration System	Yes
Rack Material	Nylon
Upper Rack Features	Adjustable
Third Rack	Yes
Color	Stainless Steel
Soil Sensor	Yes
Water Softener	No
Options	Sanitize
Delay Start	Yes, 1-24 hours
