12

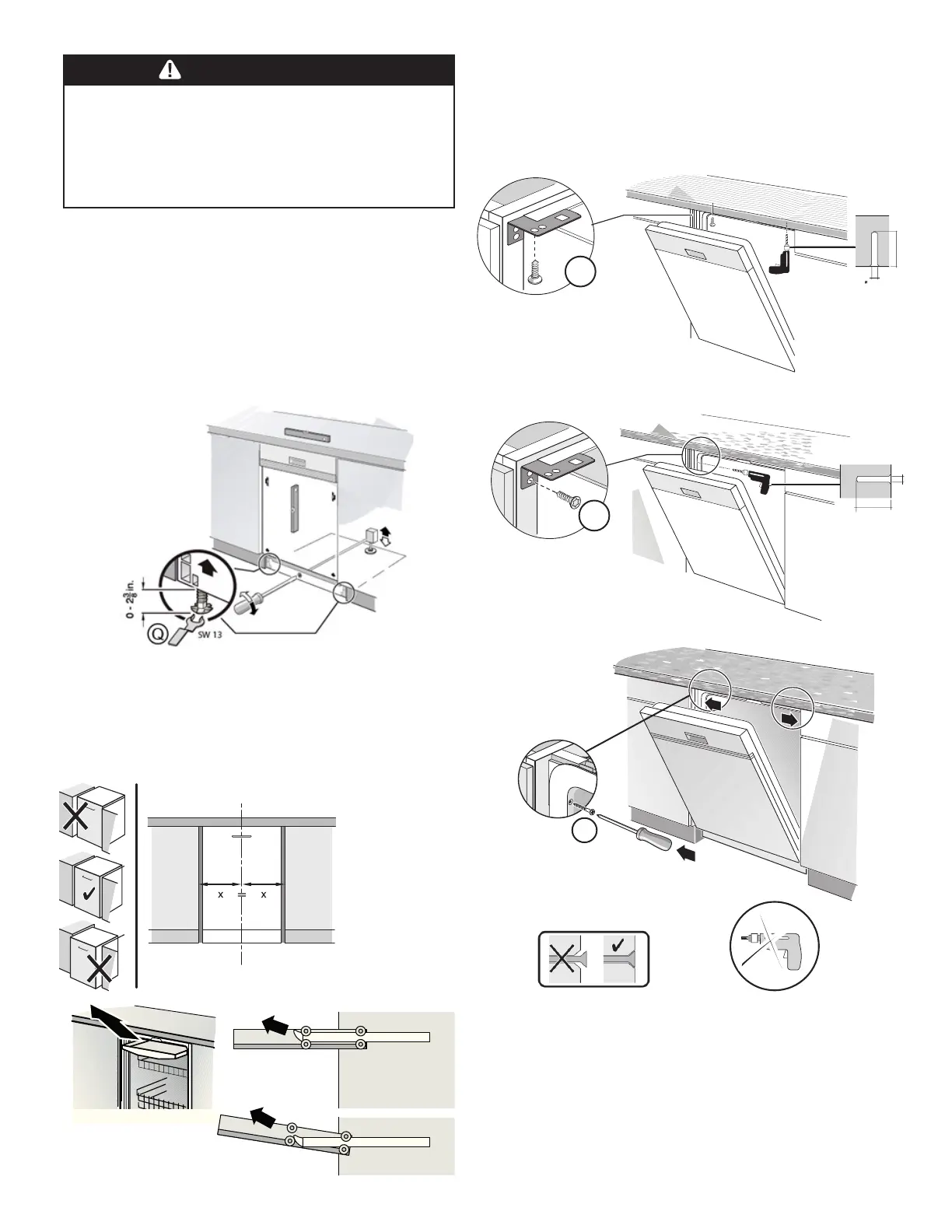

Center the dishwasher in the opening before securing it to
your cabinet or countertop as shown in Figure 18. Remove
the top cutlery rack as shown in Figure 19 *.
LEVELING THE DISHWASHER
SECURING THE DISHWASHER
For Top Mount - Wooden Countertop
For Side Mount - Stone Countertop
Avoid Tip Over Hazard!
Do not use the dishwasher until it is completely
installed. When opening the door on an uninstalled
dishwasher, carefully open the door while
supporting the rear of the unit. Failure to follow
this warning can result in serious injury.
Figure 17
Figure 18
Figure 20
Figure 21
1
/16″ (2mm)
The unit should now be ready to slide into the cabinet
opening. To avoid scratching the oor, use oor protection
and caution when sliding the dishwasher into the cabinet.
Make sure that the hoses and cords do not bunch up behind
the unit or kink as you slide the unit back. Make certain
to slide the unit into place before raising the leg levelers.
Level the dishwasher horizontally by turning feet clockwise
to raise or counter-clockwise to lower front of the unit.
Level the dishwasher vertically by turning center screw to
raise or lower the back.
Drive the mounting screws through the holes in the mounting
brackets as shown for Top Mount (Figure 20), Side Mount
(Figure 21), and Alternative Side Mount (Figure 22).
For Alternate Side Mount
Figure 22
N
D
~
1
/2″ (12mm)
12
1
/
16
D
~½" (13 mm)
(2 mm)
* Depending on whether the dishwasher includes a
top cutlery rack.
Figure 19 *
