11

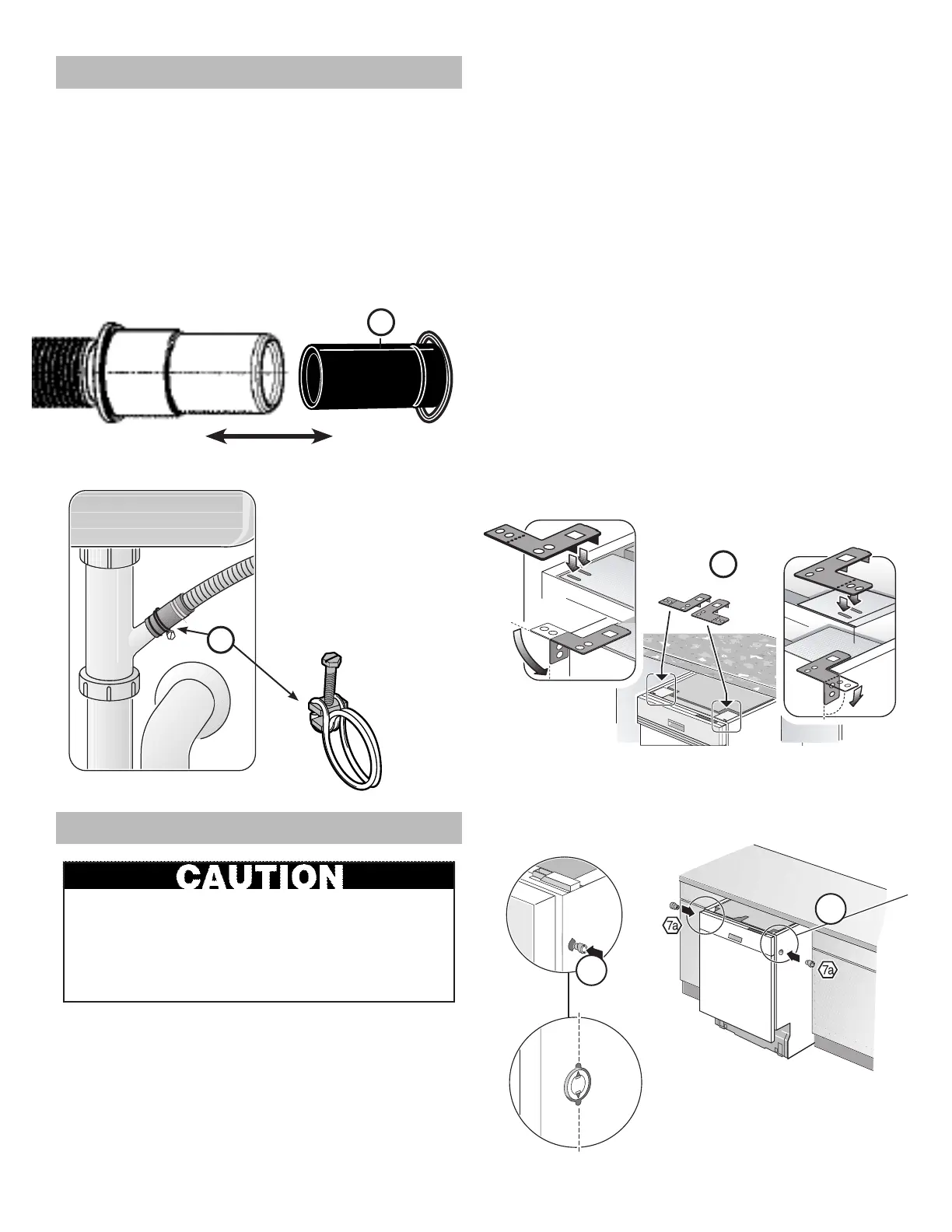

For a large port, use the drain hose as it is.
1. For a small port, insert the rubber drain hose adaptor
into the drain hose end.
2. Obtain the Rubber Drain Hose Adaptor (J) spring
clamp from the Dishwasher Installation Kit (do not
substitute).
3. Insert the dishwasher drain hose into the end of the
drain hose (see Figure 13. Be sure to fully insert the
drain hose.
4. Use the clamp provided to attach the Rubber Drain Hose
Adaptor to the house plumbing as shown in Figure 14.
The dishwasher can be secured into its enclosure in 3 ways:
NOTE: If your dishwasher opening width measures >23
5
/8
(600 mm) use the TOP or SIDE MOUNT mounting methods.
If your dishwasher opening width measures 23
5
/8 (600
mm) use the ALTERNATE SIDE MOUNT mounting method.
Figure 14
Figure 13
Before installing the supplied countertop mounting
brackets, decide which method of securing the
dishwasher into its enclosure will be used. Once the
mounting brackets are installed on the dishwasher,
removing them is difficult and will damage the
mounting brackets and the dishwasher.
Installation of Mounting Brackets
Installation of Rubber Drain Hose Adaptor
Figure 15
Alternate Side Mount for opening 23
5
/8(600 mm). Insert
a side mount force distributor (M) in each side as shown in
Figure 16.
Alternate Side Mount
Figure 16
M
M
J
G
C
Top Mount is used for countertops made of wood or other
materials that can be easily drilled. Orient the mounting
brackets as shown in Figure 15 and position the two small
tabs on the mounting brackets over the two slots on the
dishwasher’s front corners. Push the mounting brackets
down rmly to insert the tabs into the slots. The di󰀨erence
in Top Mount and Side Mount is the screw will be placed
and secured in di󰀨erent holes of the mounting bracket (refer
to “Securing the Dishwasher” section on the next page).
Side Mount is used for countertops made of marble,
granite, or other very hard materials that cannot be easily
drilled. Bend the mounting brackets along the small holes
and in the same direction as the two small tabs. Orient the
mounting brackets as shown in Figure 15, and position
the two small tabs on the mounting brackets over the two
slots on the dishwasher’s front corners. Push the mounting
brackets down rmly to insert the tabs into the slots. Bend
perforated edge down as shown.
11
Top and Side Mount
