Your dishwasher comes with either a two-piece or three-
piece toe panel (model dependent) to allow height adjust-
ment.
1. Position the slotted rear toe panel (part of E) on the
dishwasher rst. Allow it to rest on the oor.
2. Position the mating front toe panel (part of E) on top of
the rear toe panel allowing the angled edge to rest on
the mating edge of the dishwasher.
3. Drive the two black screws (B) through the holes in the
toe panel to secure. Use the supplied screws to avoid
damaging the dishwasher. See Figure 23
4. For models with a three-piece toe panel, the rubber apron
removed earlier may now be attached and should remain
behind the outermost toe panel.
5. For models with outer toe panel (3rd piece - L) slide the
brackets (K) provided, into the slots of the toe panel you
just attached.
6. Once you determine the correct position for the brackets,
remove the bracket and bend the metal tab. See Figure
24. This ensures that the toe panel will not slide in further
than you need.
7. Re-insert the brackets.
8. Attach the outer toe panel (L) onto the brackets and drive
the screws provided (F) in place to secure the toe panel
ensuring that the rubber apron is completely hidden
behind the outer toe panel.

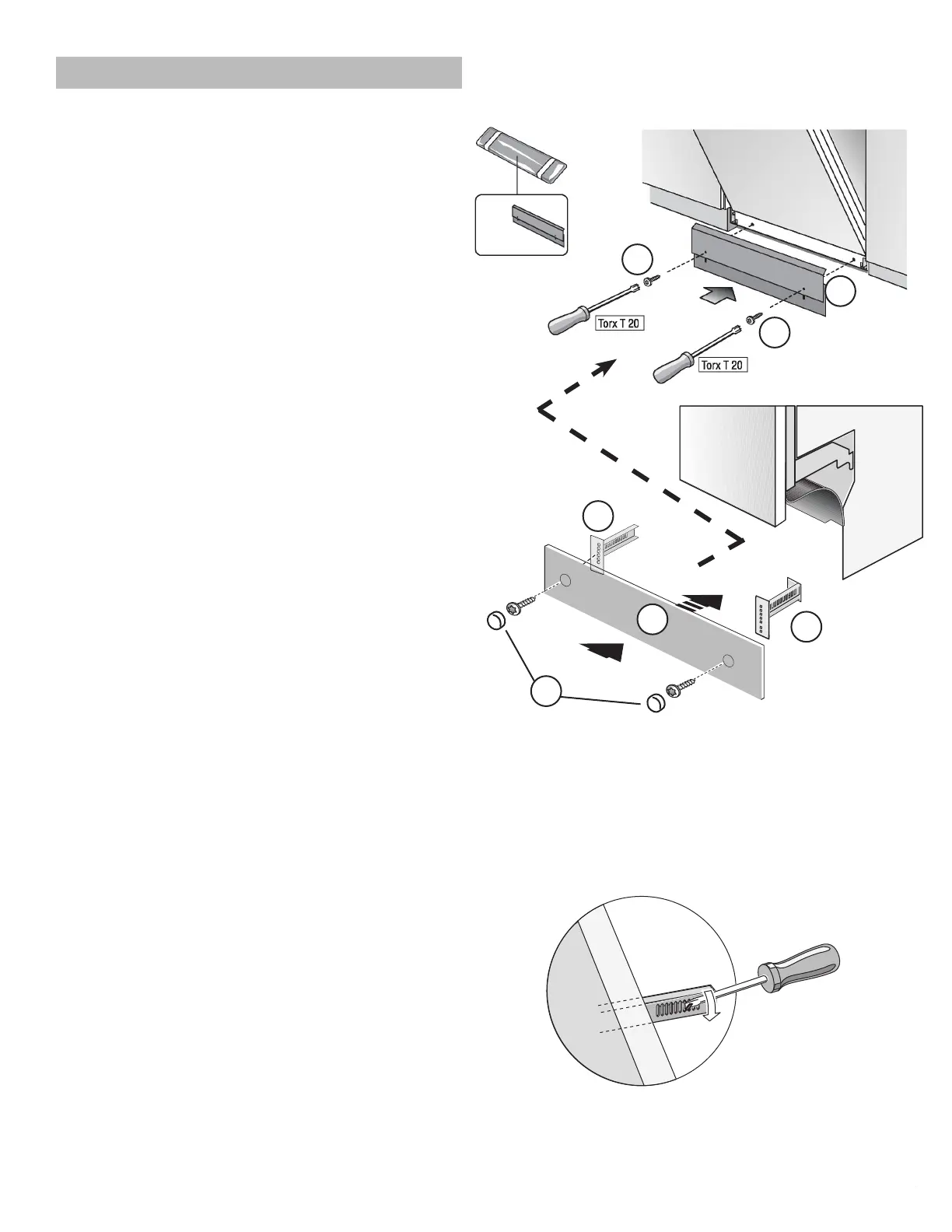

Figure 24
Attaching the Toe Panel
B
B
E
K
F
L
K
13
Figure 23
