3.5 Product dimensions and minimum clearances
3.5.1 Vertical installation

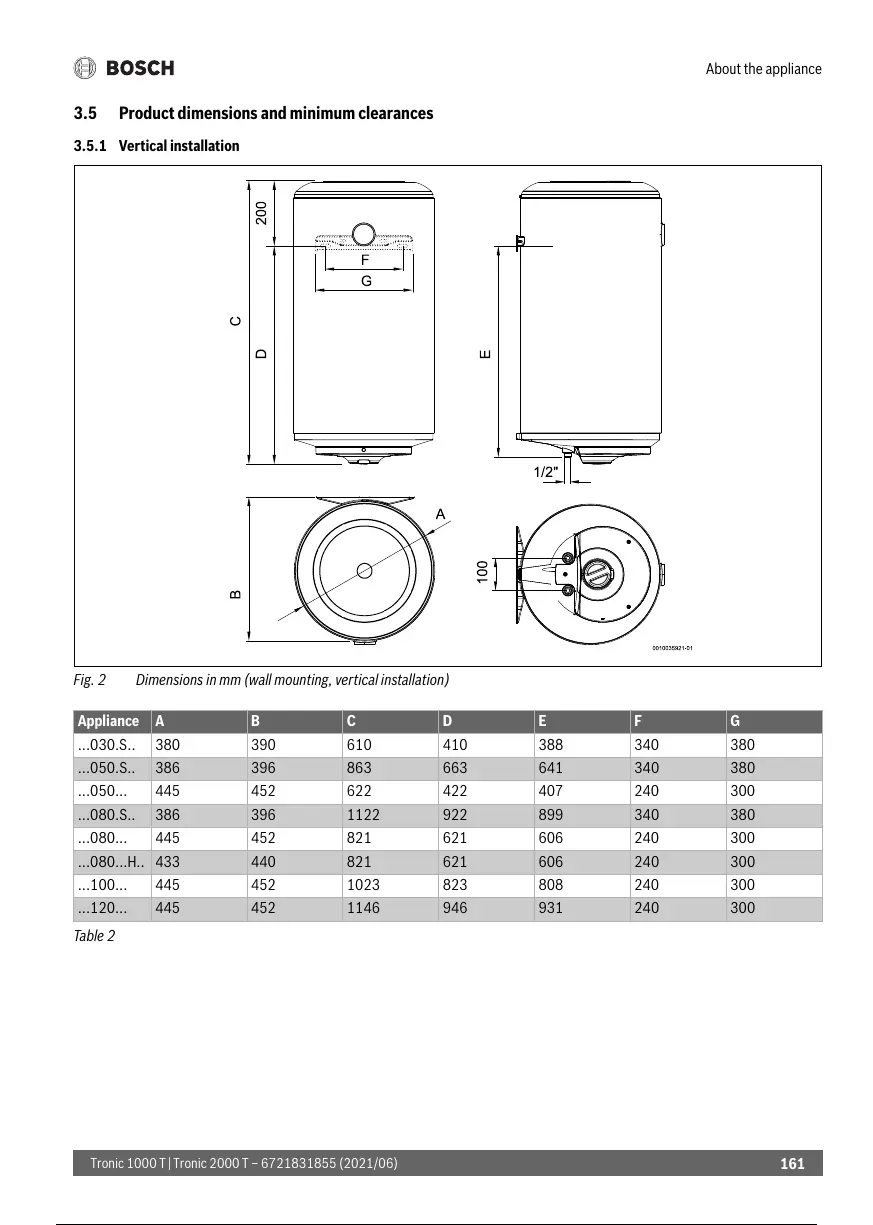

Fig. 2 Dimensions in mm (wall mounting, vertical installation)
Table 2
Appliance A B C D E F G
...030.S.. 380 390 610 410 388 340 380
...050.S.. 386 396 863 663 641 340 380
...050... 445 452 622 422 407 240 300
...080.S.. 386 396 1122 922 899 340 380
...080... 445 452 821 621 606 240 300
...080...H.. 433 440 821 621 606 240 300
...100... 445 452 1023 823 808 240 300
...120... 445 452 1146 946 931 240 300
