6 720 818 420 (2016/09) Tronic 1000T / 2000T
10 | Regulations
2.9 Appliance layout

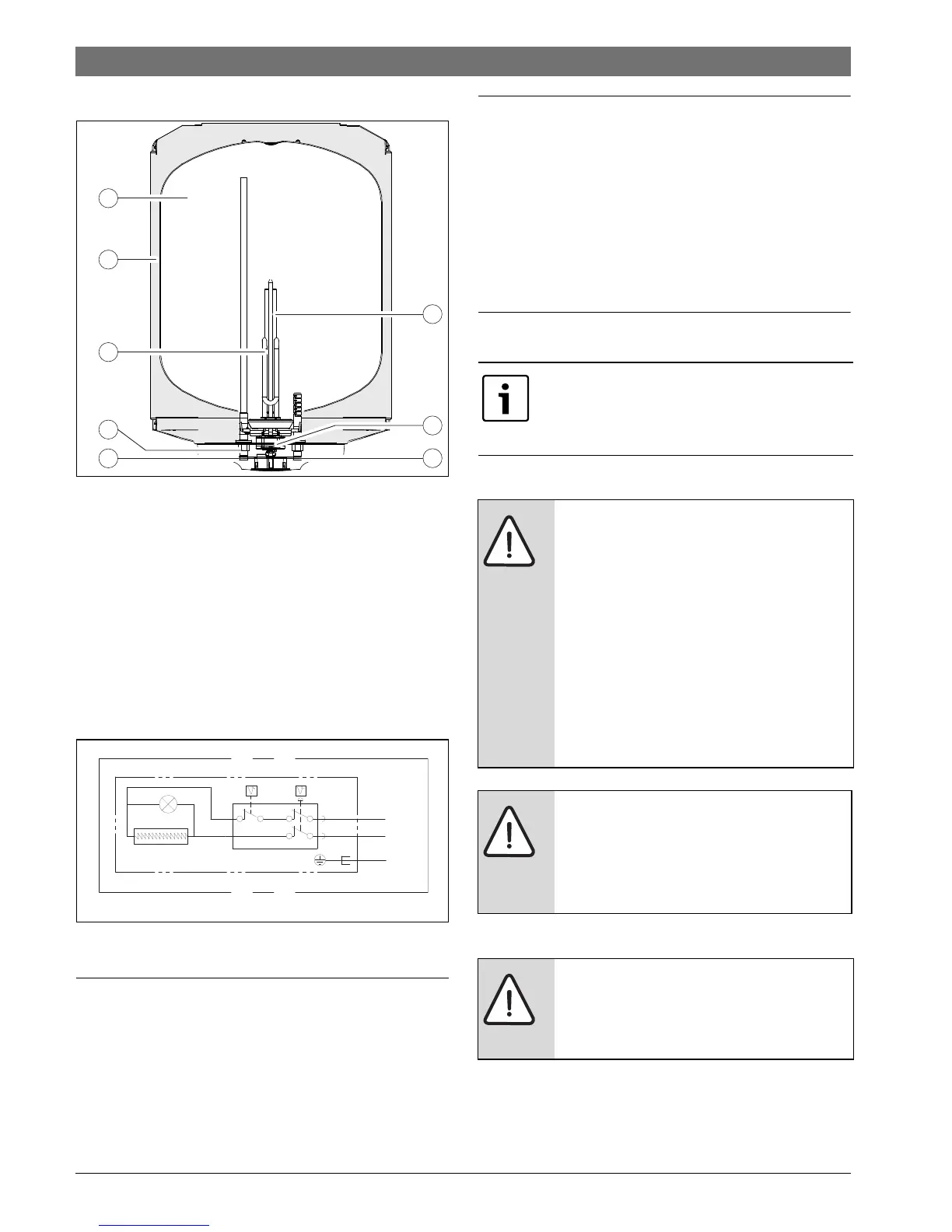

Fig. 4 Appliance composition (ex. model with temperature
regulator)
[1] Tank
[2] Insulating material - polyurethane
[3] Heating element
[4] Hot water outlet ½ ” male
[5] Cold water inlet½ ” male
[6] Magnesium anode
[7] Safety and control thermostat
[8] Galvanic isolator
2.10 Electrical wiring diagram
Fig. 5 Electric circuit diagram
3Regulations
The country’s regulations currently in force must be fulfilled for
the installation of the electric appliances.
4Transport
▶ Do not drop the appliance.
▶ Remove the appliance from the packaging only at the place
of installation.
4.1 Transport, storage
• The equipment should be stored in protected areas against
negative temperatures.
5Installation
5.1 Important notes
5.2 Siting the appliance
Dispositions relative to the place of installation
• Comply with country-specific requirements
• Never install the appliance above a heat source.
6720817966-06.1V
7
5
4
8
3
1
2
6
230V~
2L + PE
L1
L2
PE
6720817966-09.1V
Installation, power connection and
commissioning must only be carried out by a
service approved for such work by the local
entities.
CAUTION:
▶ Do not drop the appliance.
▶ Remove the appliance from the
packaging only at the place of
installation.
▶ Wherever applicable, comply with the
IEC 60364-7-701 norm on installing the
appliance and / or any electric
accessories.
▶ Chose a sufficiently robust wall to
support the appliance with the tank full,
see page 5.
CAUTION: Damage to the heating elements!
▶ Firstly connect all the water connections
and fill the appliance.
▶ Connect the appliance to the electric
point, assuring connection to earth.
CAUTION:
▶ Chose a sufficiently robust wall to
support the appliance with the tank full,
see page ( page 5).
