2.7 Appliance layout

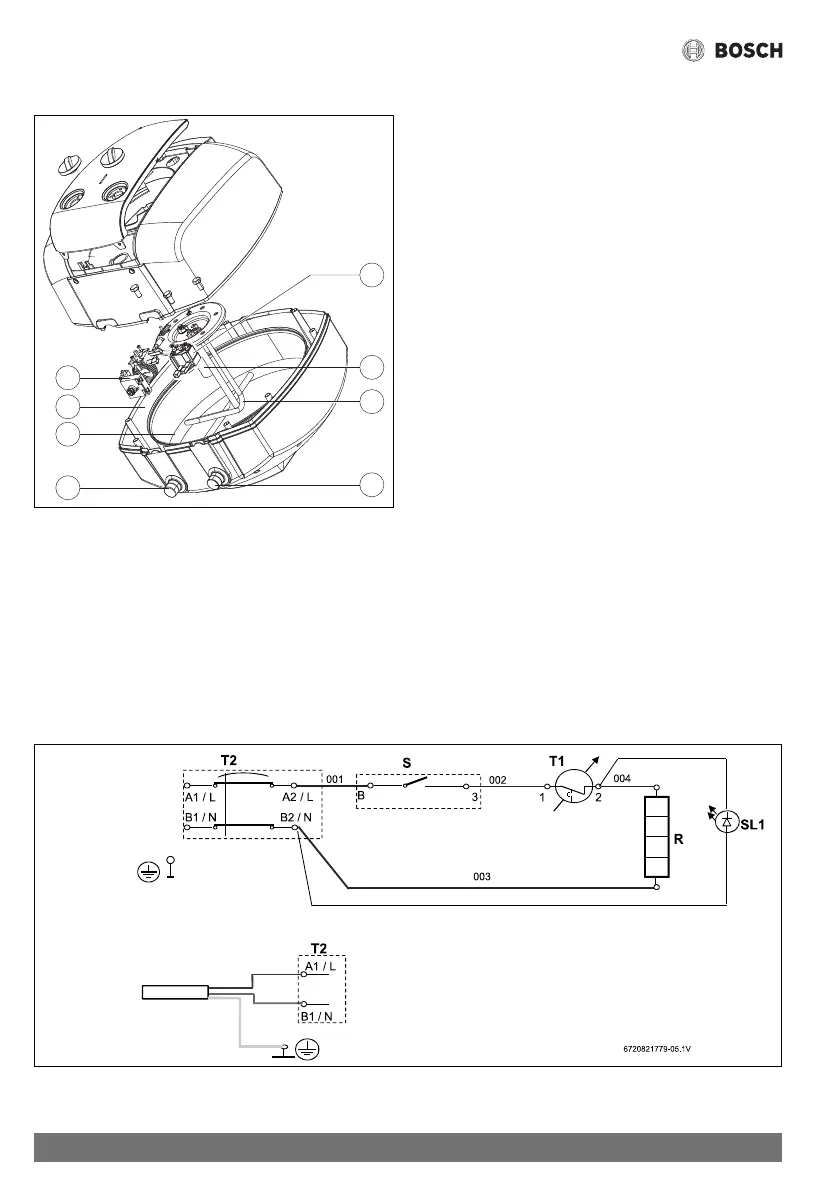

Fig. 4 Appliance composition
[1] Tank
[2] Insulating material: polyurethane without CFC
[3] Heating element
[4] Hot water outlet ½ ” male
[5] Cold water inlet½ ” male
[6] Magnesium anode
[7] Thermal cut out
[8] Thermostat
2.8 Electrical wiring diagram
Fig. 5 Electric circuit diagram
1
2
7
6
3
4
5
