Fiber Optic Media Converter Installing the Fiber Optic Module | en 5
Bosch Security Systems, Inc. Installation Guide F.01U.134.924 | 1.0 | 2009.09

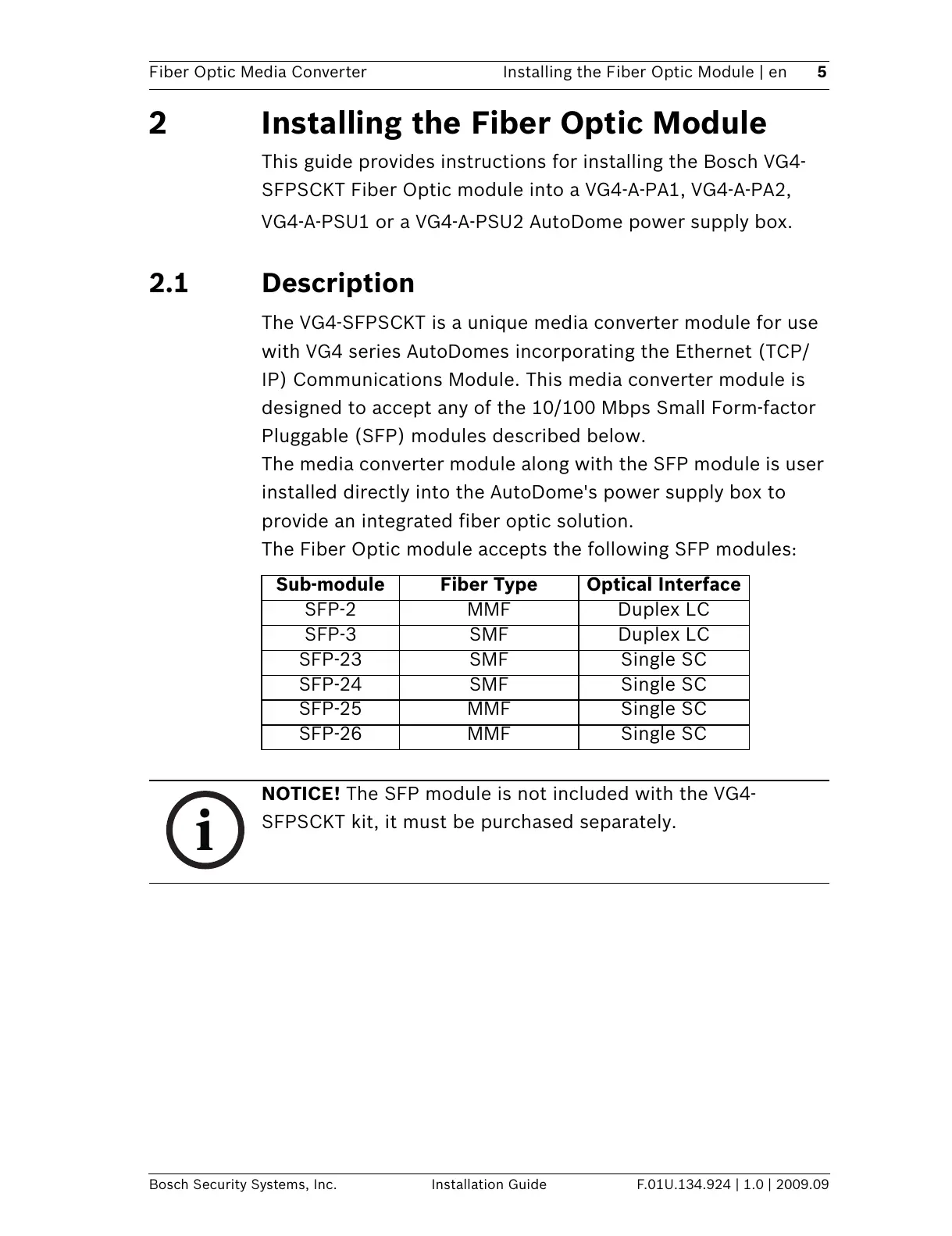

2 Installing the Fiber Optic Module
This guide provides instructions for installing the Bosch VG4-
SFPSCKT Fiber Optic module into a VG4-A-PA1, VG4-A-PA2,
VG4-A-PSU1 or a VG4-A-PSU2 AutoDome power supply box.
2.1 Description
The VG4-SFPSCKT is a unique media converter module for use
with VG4 series AutoDomes incorporating the Ethernet (TCP/
IP) Communications Module. This media converter module is
designed to accept any of the 10/100 Mbps Small Form-factor
Pluggable (SFP) modules described below.
The media converter module along with the SFP module is user
installed directly into the AutoDome's power supply box to
provide an integrated fiber optic solution.
The Fiber Optic module accepts the following SFP modules:
Sub-module Fiber Type Optical Interface
SFP-2 MMF Duplex LC
SFP-3 SMF Duplex LC
SFP-23 SMF Single SC
SFP-24 SMF Single SC
SFP-25 MMF Single SC
SFP-26 MMF Single SC
NOTICE! The SFP module is not included with the VG4-
SFPSCKT kit, it must be purchased separately.
