Bosch VG4 Series Installation Guide

8 en | Installing the Fiber Optic Module Fiber Optic Media Converter
F.01U.134.924 | 1.0 | 2009.09 Installation Guide Bosch Security Systems, Inc.
2.4 Installation Instructions
Use the following instructions to install the VG4-SFPSCKT Fiber
Optic module inside a VG4 Power Supply Box.
1. Unpack the fiber optic module kit, and remove the parts
from the bag.
2. Turn off the power to the VG4 power supply box and
remove the cover.
3. Remove the 6-pin connector from the P106 connector
inside the power supply box, if present.

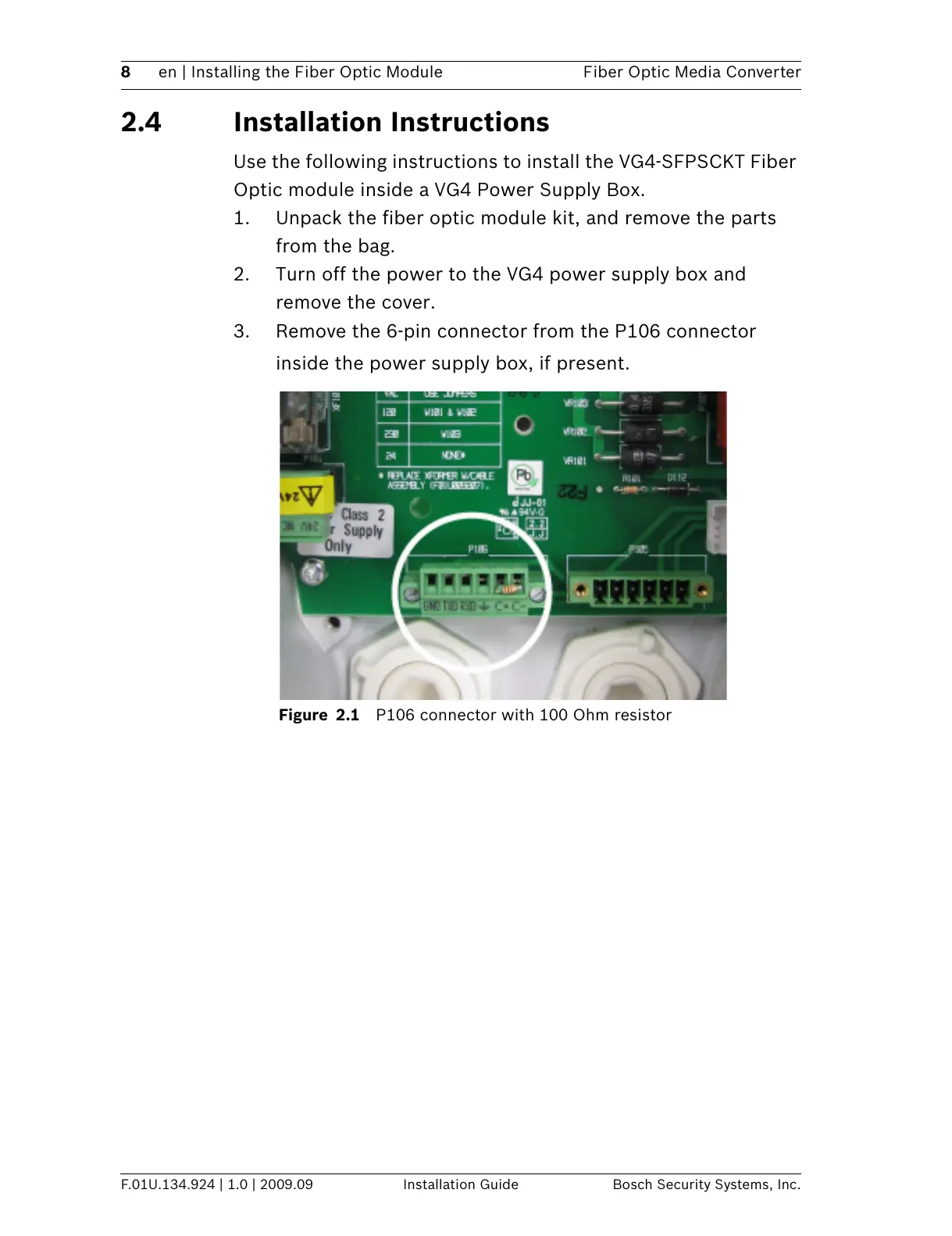

Figure 2.1 P106 connector with 100 Ohm resistor
