Preventing Water Collecting in Door Seals
Preventing Water Collecting in Door Seals
Unlike WFK, WFL & WFR washers, WFMC/WFXD
washers have tilted tubs and flow through tub paddles to
help prevent water collecting in door seals and to
enhance wash water flowing through clothes.

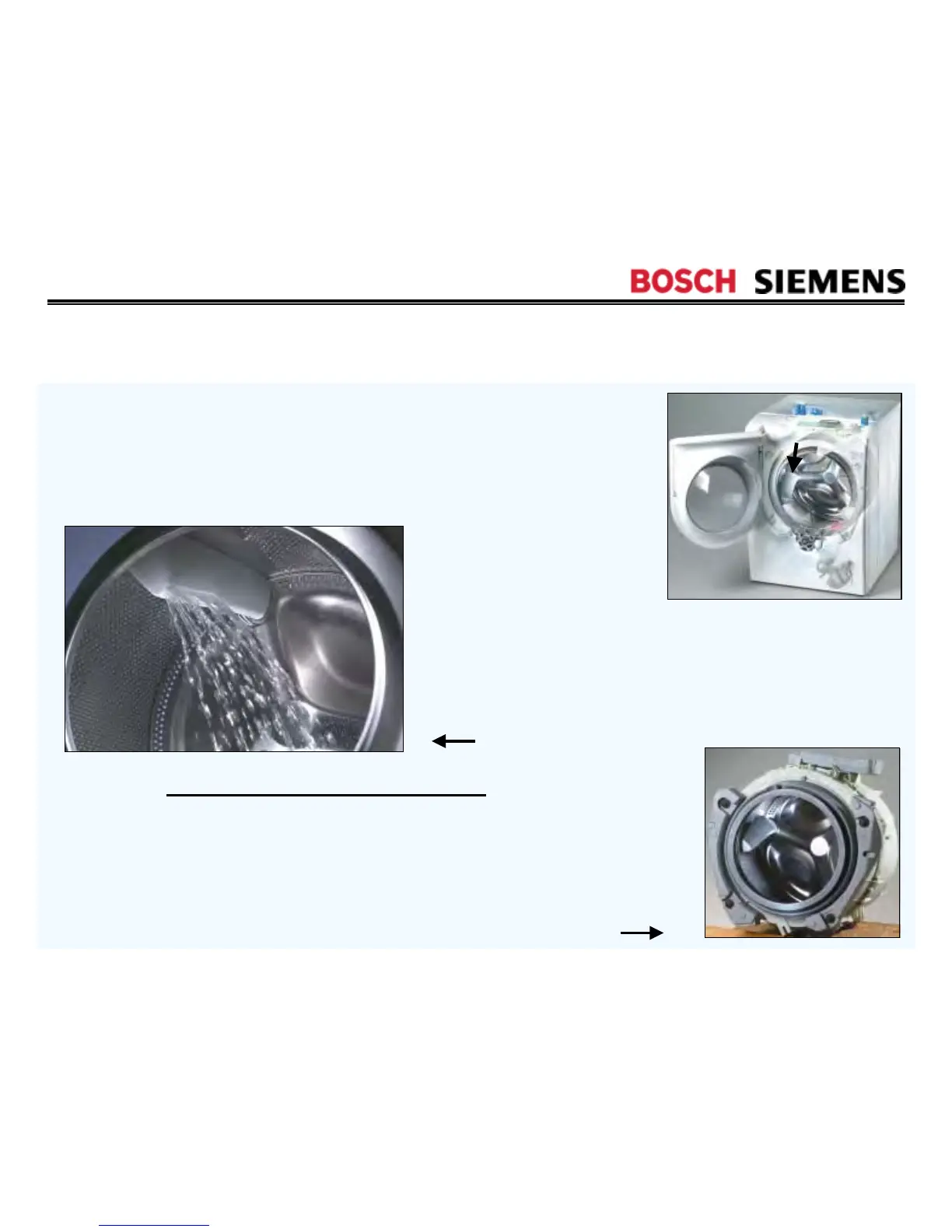

Paddles direct water toward front of
washer – water drains into paddles from
outside of inner drum, flows toward front
of paddles and exits holes in front of
paddles onto clothing in front of washer.
Directing water away from door seals:
• Drums are tilted to direct water to the back of the drum and
away from the door seal.
• Door glass is shaped to direct water away from the door seal.
• Paddles insure clothing at front of dryer get wet despite tub
being tilted toward the back.
