Bosch WFMC3200UC - Disassembly: Fascia (Control) Panel; Removing the Fascia Panel

2nd Edition/Revision 0 (4/28/04)
R020031E
Disassembly
Disassembly
–
–
Fascia (Control) Panel (1)
Fascia (Control) Panel (1)
17
/
T-20 screws

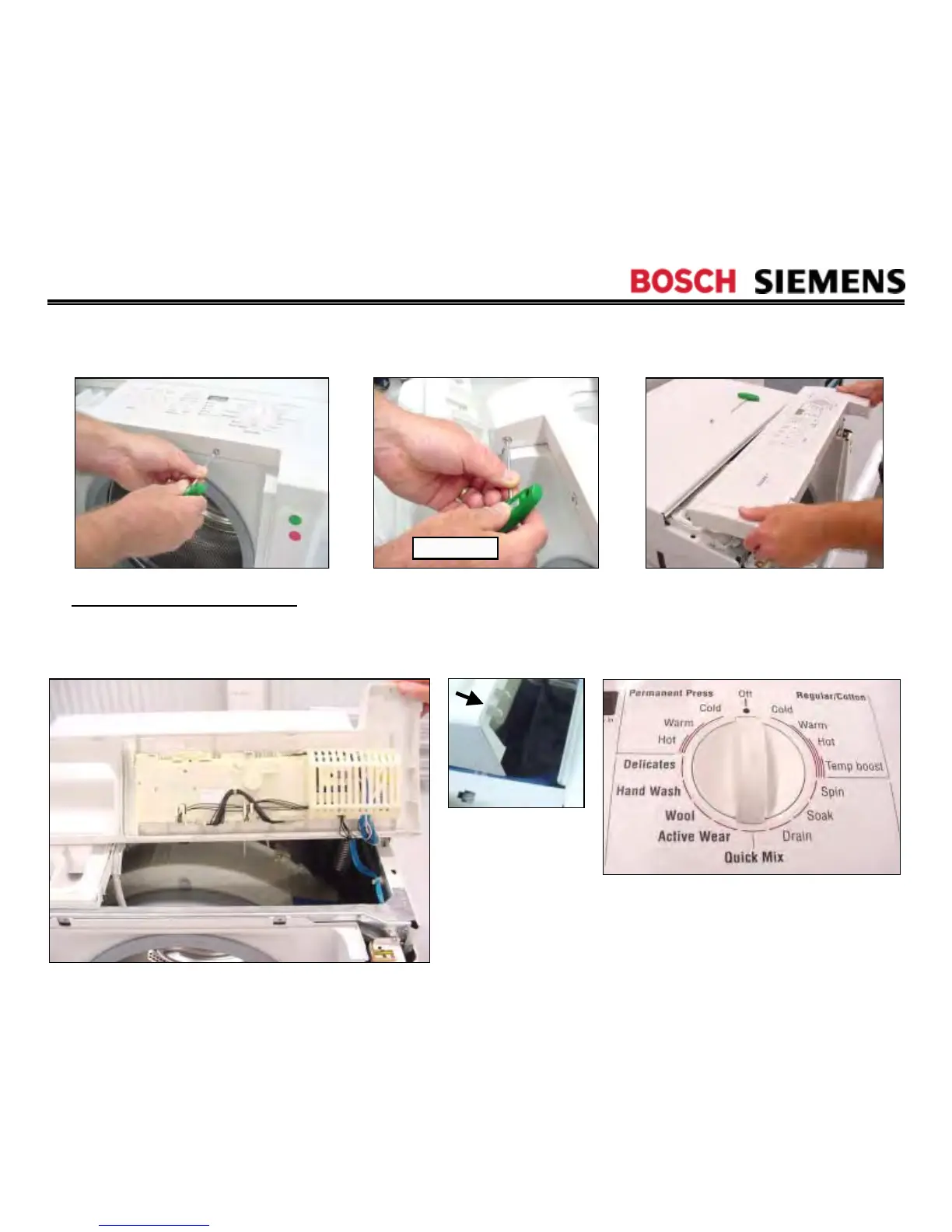

To remove fascia panel to access control module & dispenser, remove (4) T-20 Torx
front/side screws and lift panel up. Caps over screws can be removed using
fingernails or a sharp knife – take care not to scratch fascia panel or caps.
When reassembling
panels, tuck rear
tabs under top
panel 1
st
.
Knobs are permanently attached
to panels and cannot be
removed.
