Disassembly
Disassembly
–
–
Fascia (Control) Panel (2)
18
/

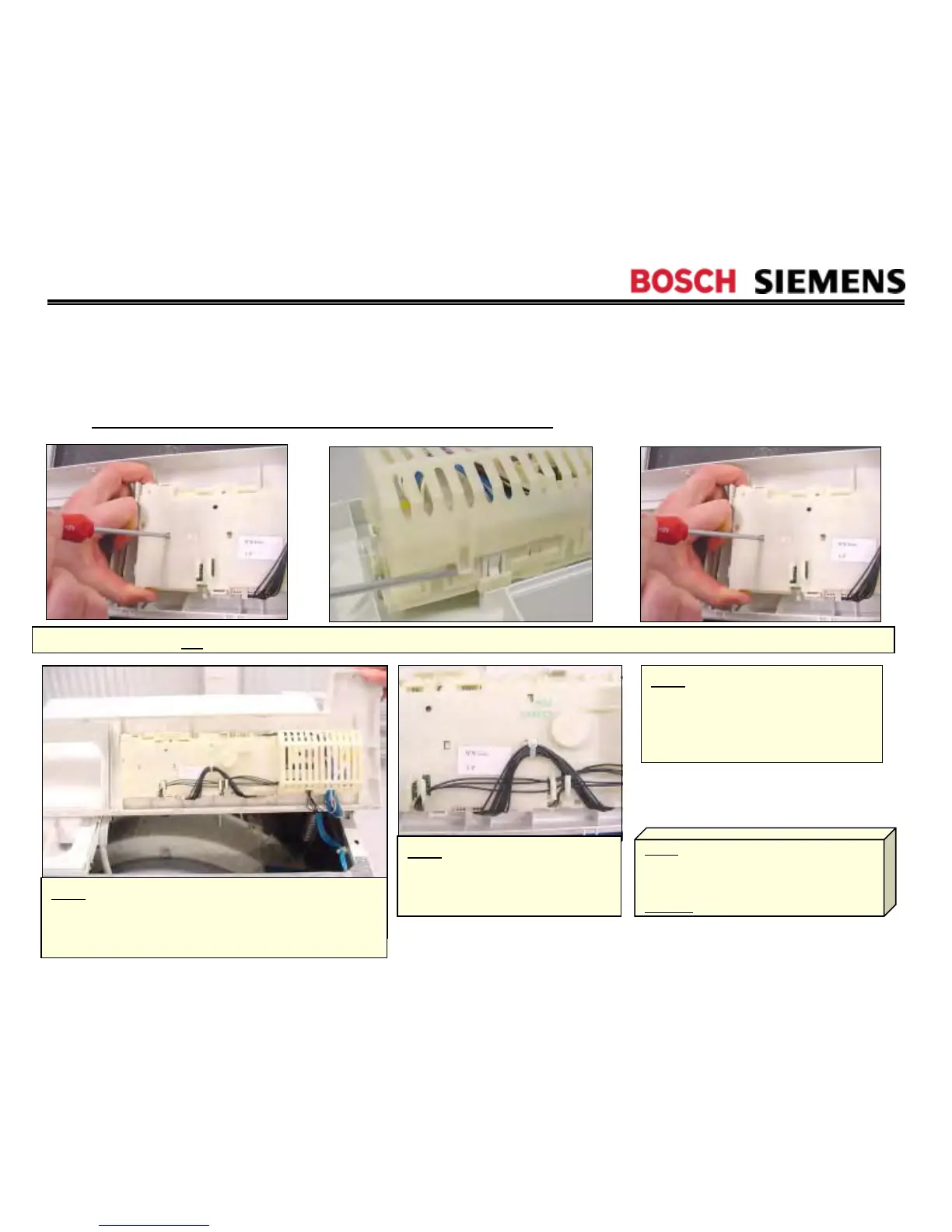

Fascia (Control) Panel (2)
Control modules can be readily removed from fascia panels, but there’s a knack to it
– must use the procedure below exactly as shown
.
Start from left side Pry outer & inner tabs together L – R Pry out (3) inner tabs + all outer tabs
HINT: Don’t remove the wire
holders – clip off wire ties
instead. Carry extra wire ties to
reattach wire harnesses.
HINT: Don’t force modules out from fascia panels
to avoid breaking plastic parts. If modules don’t
come out easily, the procedure hasn’t been
followed and plastic parts will break.
HINT
: The knob does NOT have
to be removed to remove the
control module. The module lifts
off completely from the panel,
knob & buttons.
NOTE: Some control modules have been
replaced since fault codes stored in
module or motor control can’t be cleared.
Modules are operating properly and
shouldn’t
be replaced to clear fault codes.
