WFMC/WFXD Service Tips
WFMC/WFXD Service Tips
–
–
Reconnecting Harnesses
Reconnecting Harnesses
There have been occasions when wire harnesses have not been reconnected after repairs have
been made, especially for harnesses disconnected to make easier access to repair other parts. Its
important that all wire harnesses are reconnected and checked when any repairs are made.

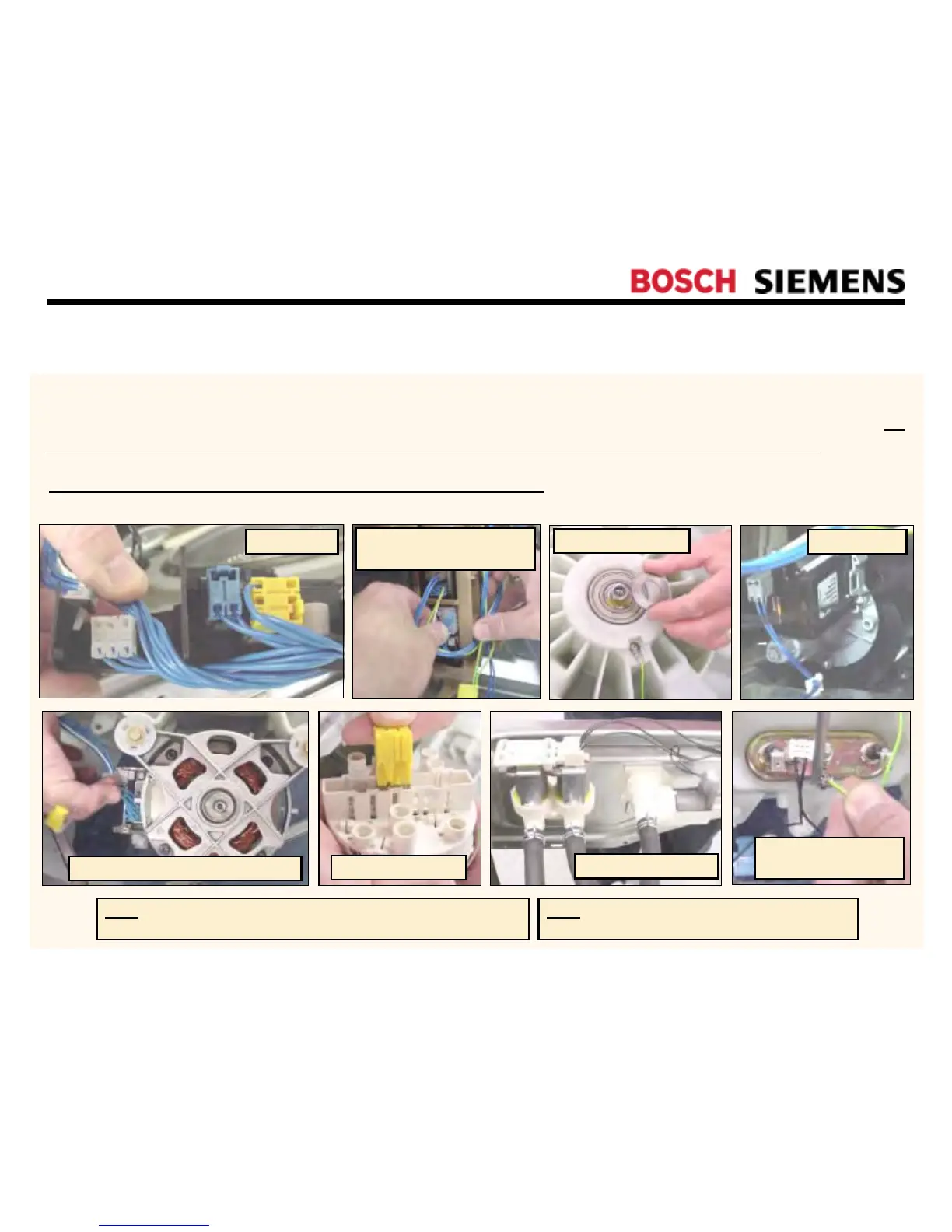

Examples of wire harnesses that can be left disconnected:
HINT: Write down all harnesses disconnected during repairs,
then check all harnesses after repairs have been made.
HINT: If needed, run test P:3 (P:03) and
visually check all parts are functioning properly.
Motor, including ground wires
Tub ground wire
Heater, including
ground wire & NTC
Motor control,
including ground wires
Door latch
Pressure switch
Water inlet valves
Drain pump
