2nd Edition/Revision 0 (4/28/04)
R020031E
44
/
WFMC/WFXD Service Tips
WFMC/WFXD Service Tips
–
–

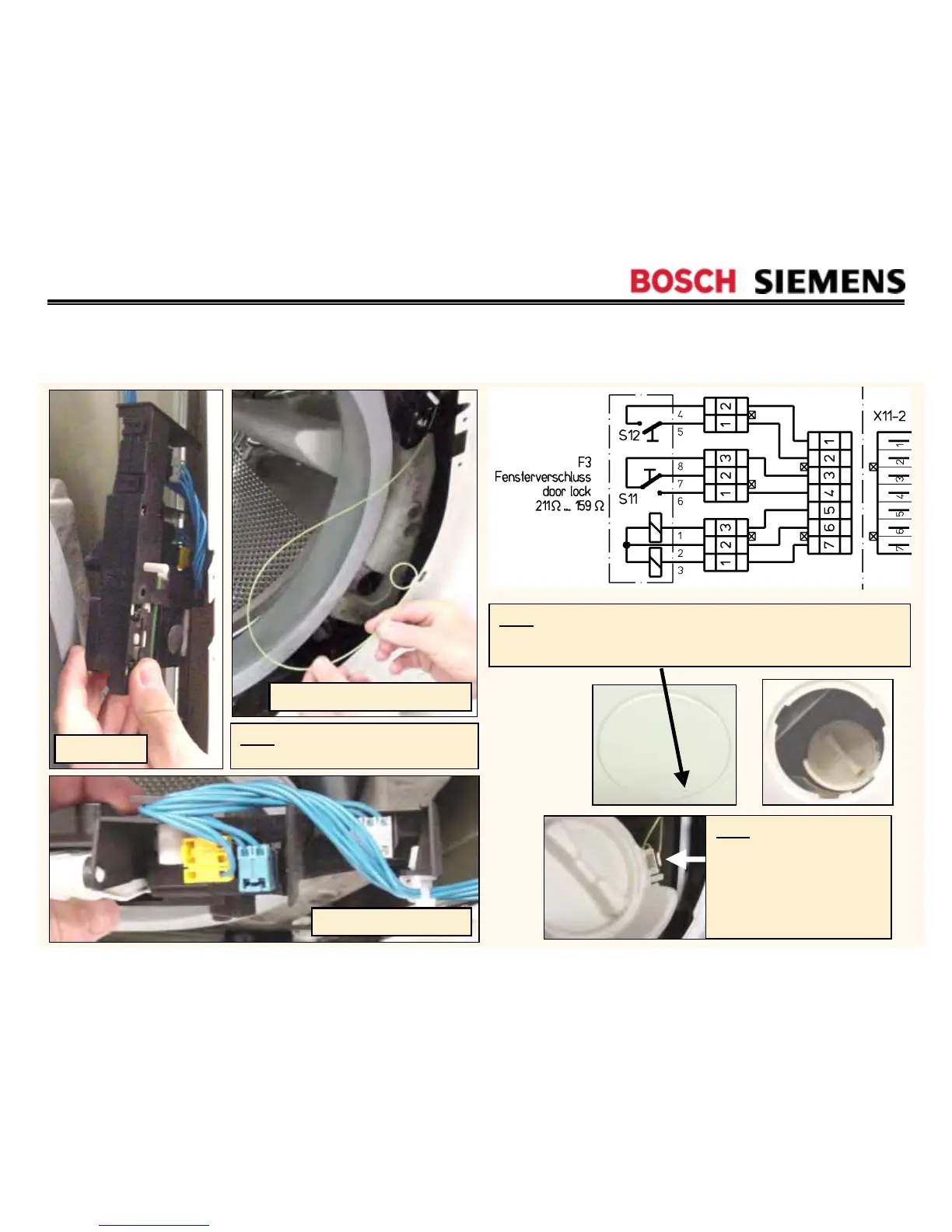

Door Lock
Door Lock
HINT: Can remove fascia panel &
front shield to access door lock.
Door lock
Door lock manual release
Door lock terminals
HINT: To remove the access cover to use the door lock
manual release, insert a pointed object (or tool) into the hole,
push in to release the latch and rotate the cover clockwise.
HINT: Door lock manual
release cable is held to
the right side of the
drain pump by a clip.
Simply pull on the cable
to release the door.
Current production drain pumps are beige color – earlier WFMC pumps were black.
